CA-12M1N8A9502 - Coupler connector
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Order crimp contacts à 1 mm separately |
Product properties | Product type: Circular connector (cable-side) |

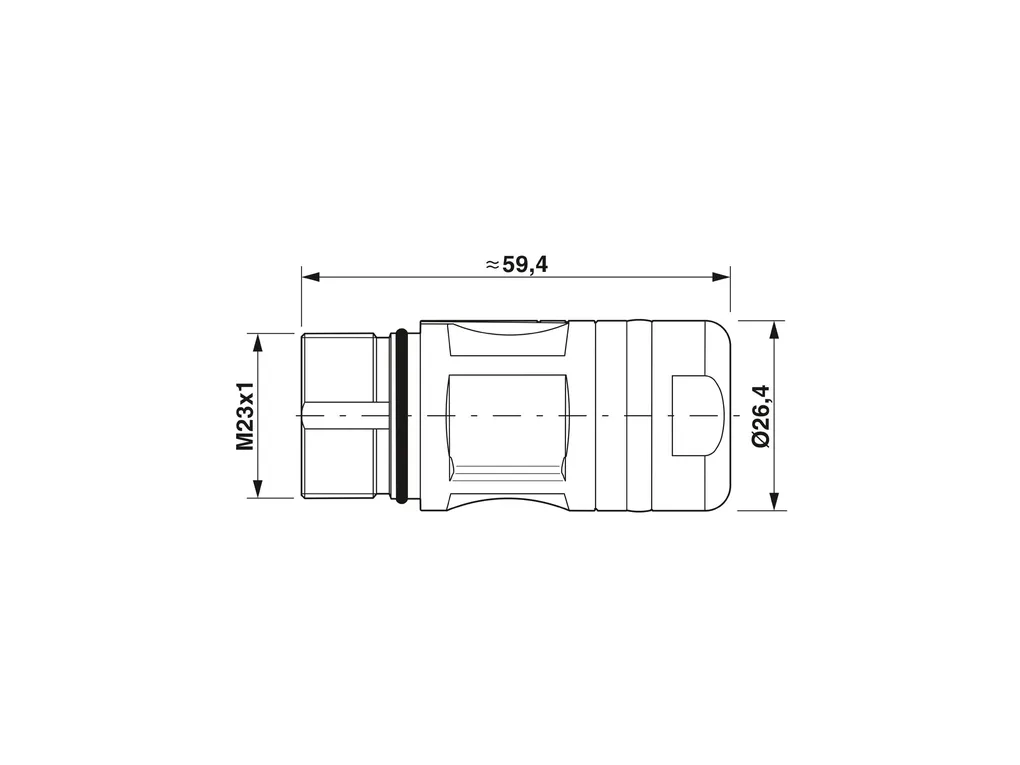

Connector | Insulating body Note: Order information: Order crimp contacts à 1 mm separately Coding: N Insulation body material: PA 6.6 Connection method: Crimp connection Contact switching type: Pin Application: Feedback, signal Signal Number of positions: 12 Direction of rotation: Standard Connection profile: 12 Contact diameter Signal contacts: 1 mm Litz wire cross-section Signal contacts min.: 0.06 mm² Litz wire cross-section Signal contacts max.: 1 mm² Nominal current per signal contact: 8 A Rated voltage Signal contact: 48 VAC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Type of locking: for standard and SPEEDCON interlock Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 4 mm ... 6 mm Seal material: FPM |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
ETIM | ETIM 9.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
