1621817 PHOENIX CONTACT - Technology Bsa

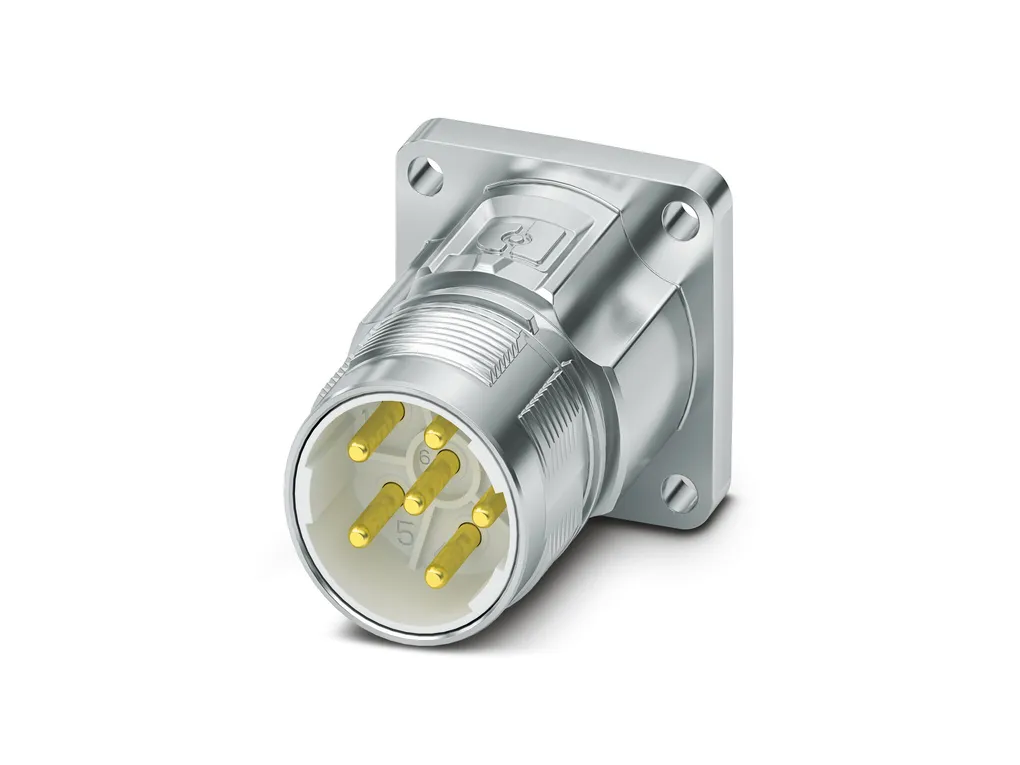

ST-3EP1N8AWQ00S-000/0030 - Device connector front mounting

Device connector front mounting, Front wall, M17 standard and SPEEDCON locking, M17, contact connection type: Pin, 4x Ã2,7, shielded: yes, flange dimensions: 21.6mm x 21.6mm, degree of protection: IP67, number of positions: 4, connection method: Crimp connection

Product Code: 1621817

Partner cod.: 1621817

PHOENIX CONTACT

Notes	Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. Ã¢¢ The products are suitable for applications in plant, controller, and electrical device engineering. Ã¢¢ When operating the connectors in outdoor applications, they must be separately protected against environmental influences. Ã¢¢ Assembled products may not be manipulated or improperly opened. Ã¢¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢¢ For operating voltages > 50V AC, conductive connector housings must be grounded Ã¢¢ Ensure that the protective or functional ground has been properly connected. Ã¢¢ VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector Ã¢¢ Only use tools recommended by PhoenixContact Ã¢¢ The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. Ã¢¢ Operate the connector only when it is fully plugged in and interlocked. Ã¢¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢¢ Observe the minimum bending radius of the cable. Lay the cable without twisting it. Ã¢¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

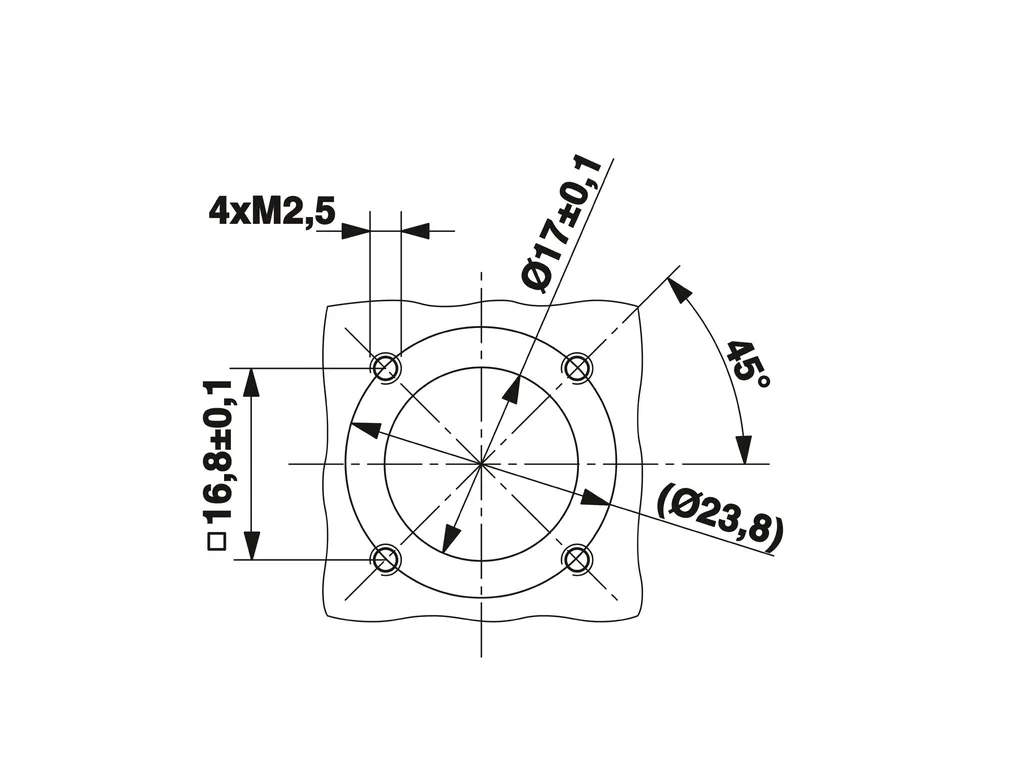

Mounting	Mounting: 4x Ã2,7 Connection method: Crimp connection
Product properties	Product type: Circular connectors (device side) Number of positions: 4 Shielded: yes Coding: N Thread type: M17
Dimensions	Housing Flange dimensions: 21.6mm x 21.6mm
Material specifications	Flammability rating according to UL 94: V0 Housing material: GD-Zn Insulator material: PA 6.6
Electrical properties	Contact Nominal voltage U_N: 630 V Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 6 kV
Connection data	Conductor connection Connection method: Crimp connection Contact connection type: Pin
Connector	Type: Front wall Direction of rotation: Standard
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 125°C
