PHOENIX CONTACT 1622219
PHOENIX CONTACT 1622219
PHOENIX CONTACTNot available

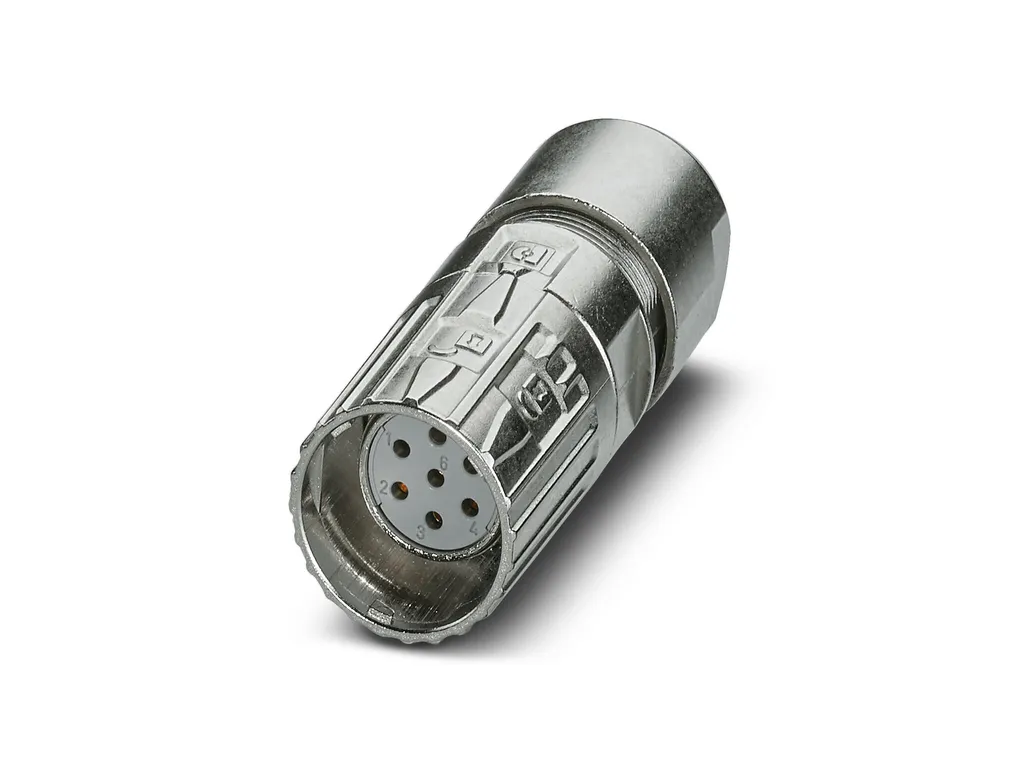

CA-12P2N129007 - Coupler connector

M23, Coupler connector, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Pin, Solder connection, cable diameter range: 6 mm ... 10 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244548
Product Code: 1622219
Partner cod.: 1622219
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Coding: N
Insulation body material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Insertion/withdrawal cycles: 100
Connection method: Solder connection
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Counter direction
Connection profile: 12
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67

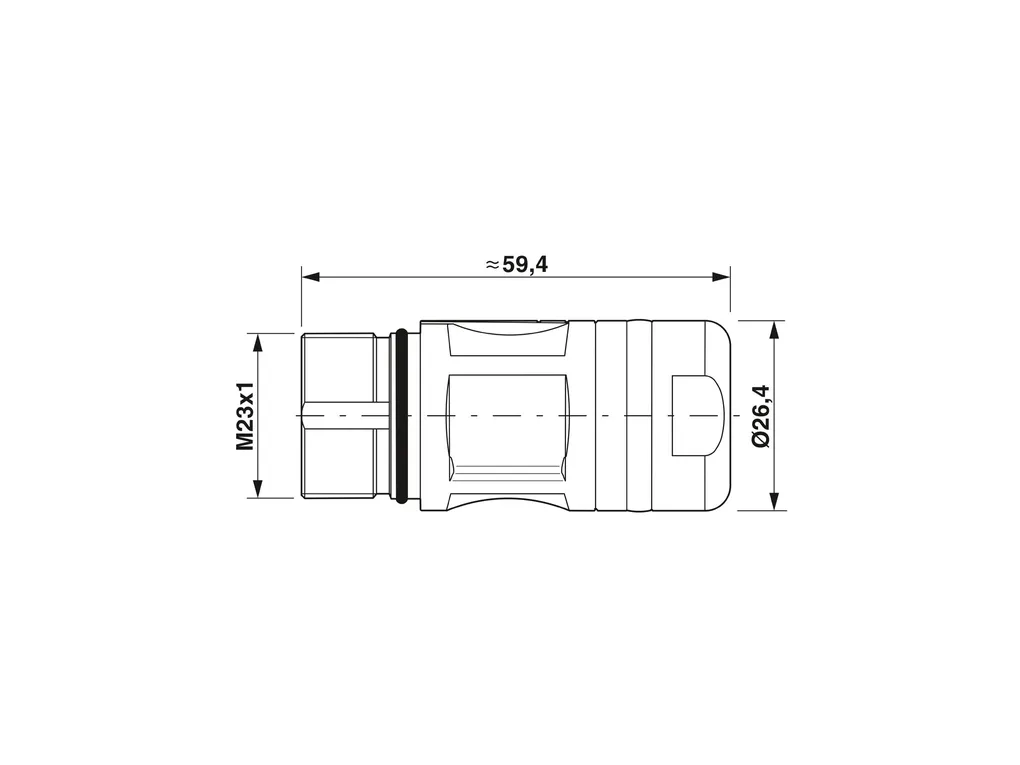

Thread type: M23
Seal
External cable diameter: 6 mm ... 10 mm
Seal material: NBR
