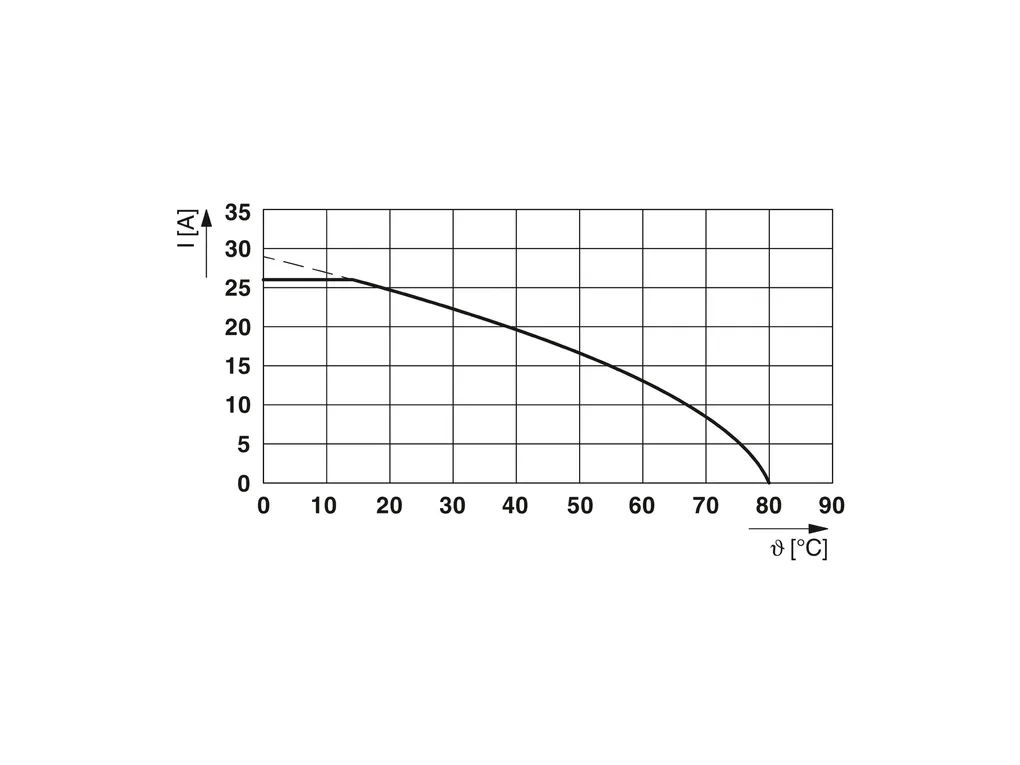

| Notes | General: Observe derating curve. |
| Product properties | Product type: Cable by the meter |
| Connector | Connector specifications Type: angled, rotatable, -120° left/120° right Housing material: PUR Thread type: M23 Type of locking: SPEEDCON Degree of protection: IP67, when in locked state IP68, when in locked state No. of pos.: 4+4+4+PE Direction of rotation: Standard Contact switching type: Socket Insertion/withdrawal cycles: 100 Max. current: 30 A Voltage: 630 VÃAC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 6 kV Cable specifications Cable type: HDSLC11Y-J Transmission speed: CAT5 100 Mbps (Data interface) Shielded: yes Cable structure: (5x 2.5 + 2x (2x 0.5) + (4x 0.34)C) C External cable diameter: 15.5 mm ñ0.5 mm Outer sheath, material: PUR Material wire insulation: TPE External sheath, color: orange RALÃ2003 Single wire, color: black 1, black 2, black 3, black 4, green/yellow Power wires + PE brown, violet, black 5, green Signal wires blue, yellow, white, orange Data wires Nominal voltage, cable: 1000 V (300ÃV signal) Test voltage: 4 kV (1.5 kV signal) Rated current: 26 A (Power, in accordance with DINÃVDEÃ0298-4 Tab.Ã11/5, atÃ15°C) 8 A (Signal, according to DINÃVDE 0298-4 tab. 11/5) 3.6 A (Data, according to DINÃVDE 0298-4 tab. 11/5) Smallest bending radius, fixed installation: 73 mm Smallest bending radius, movable installation: 148 mm Max. bending cycles: 1000000 Traversing path: 6 m Acceleration: 30 m/s² Ambient temperature (operation) for fixed installation: -40°C ... 80°C (fixed installation) Ambient temperature (operation) for flexible installation: -30°C ... 60°C (flexible installation) UL AWM style: 20234 / 10492 (80°C/1000 V) Special properties: Flexible cable conduit capable Flame resistance: IEC 60332-1-2 Halogen-free: in accordance with EN 50267-2-1 Resistance to oil: ENÃ60811-2-1 |
| Cable/line | Cable length: 1 m |
