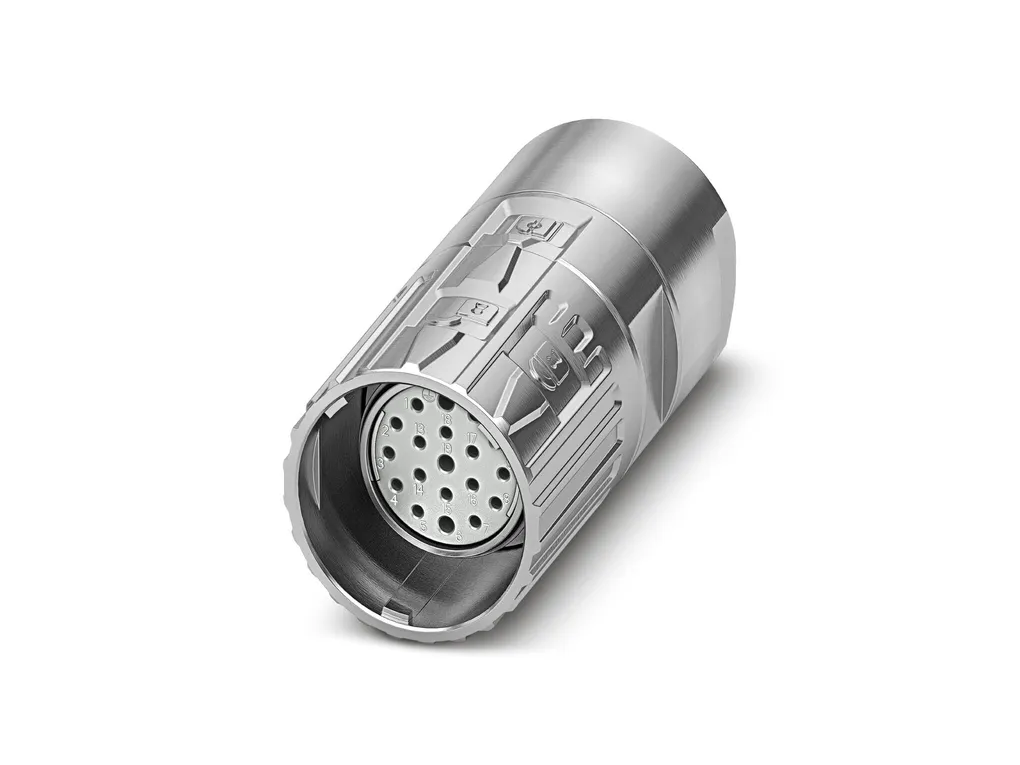

HC-26S1N8A0000 - Contact insert
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Order crimp contacts à 1 mm separately |

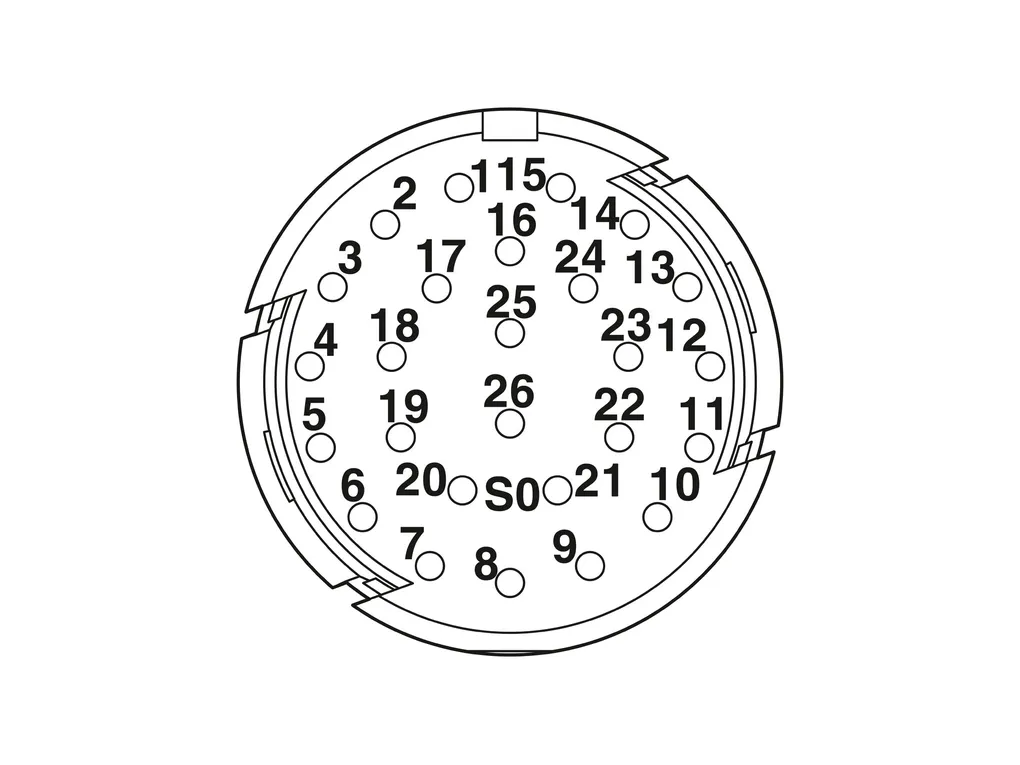

Product properties | Number of positions: 26 Connection profile: 26 Application: Signal Series: HC Coding: N Thread type: M27 |
Electrical properties | Contact Contact diameter: 1 mm Min. cross section: 0.08 mm² Max. cross section: 1 mm² Max. current: 8 A Nominal voltage UN: 48 VAC 74 VDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV |
Connector | Direction of rotation: Standard |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 125°C |
Mounting | Connection method: Crimp |
ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
ETIM | ETIM 8.0: EC003557 |
UNSPSC | UNSPSC 21.0: 39121400 |
