CA-07P1N8A6L00 - Device connector front mounting

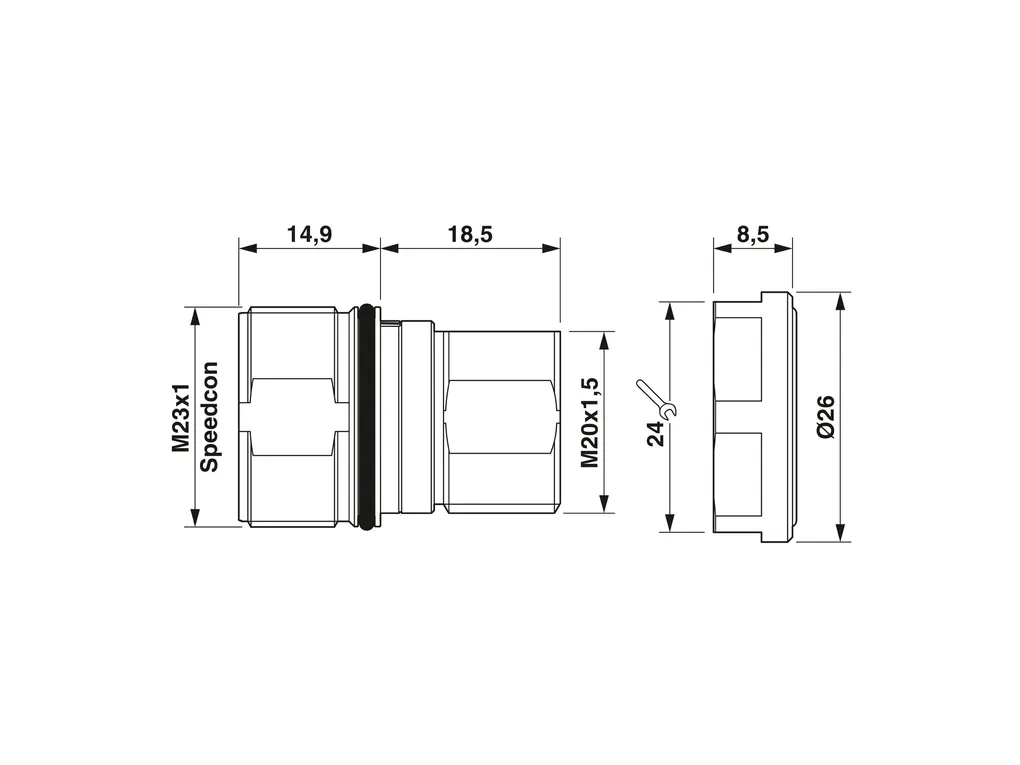

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut, coding: N

Product Code: 1624023 Copia - Copy

Partner cod.: 1624023 Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Notes	General: Order 7 x ÃÃ 2 mm crimp contacts separately
Product properties	Product type: Circular connectors (device side)
Material specifications	Flammability rating according to UL 94: V0
Connector	Insulating body Note: Order information: Order 7 x ÃÃ 2 mm crimp contacts separately Coding: N Insulation body material: PA 6.6 Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 7 Direction of rotation: Standard Connection profile: 7 Contact diameter Signal contacts: 2 mm Litz wire cross-section Signal contacts min.: 1 mm² Litz wire cross-section Signal contacts max.: 2.5 mm² Nominal current per signal contact: 20 A Rated voltage Signal contact: 48 VÃAC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Type of locking: for standard and SPEEDCON interlock Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00035.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12710.pdf

Technical_drawing_17723.pdf
