CA-09P1N8A6L00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut, coding: N
Product Code: 1624024
Partner cod.: 1624024
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately
Product propertiesProduct type: Circular connectors (device side)
Material specificationsFlammability rating according to UL 94: V0
ConnectorInsulating body
Note: Order information: Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 9
Direction of rotation: Standard
Connection profile: 8+1
Contact diameter Power contacts: 2 mm
Litz wire cross-section Power contacts min.: 1 mm²
Litz wire cross-section Power contacts max.: 2.5 mm²
Rated current Power contacts: 20 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Technical Specs
ECLASSECLASS-11.0: 27440109
ECLASS-12.0: 27440109
ECLASS-13.0: 27440109
ETIMETIM 9.0: EC003569
UNSPSCUNSPSC 21.0: 39121400
Description
Device connector for front wall, CA, straight, shielded: yes, for standard and SPEEDCON interlock, M23, No. of pos.: 8+1, type of contact: Pin, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

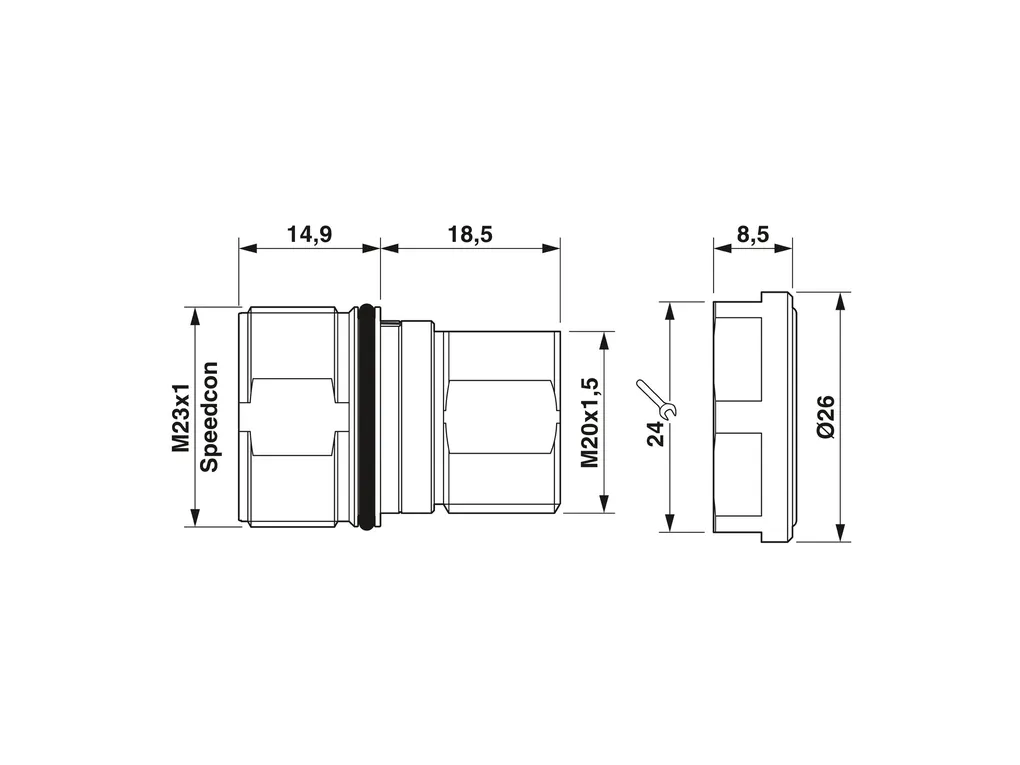

Assembly_instructions_00035.pdf
