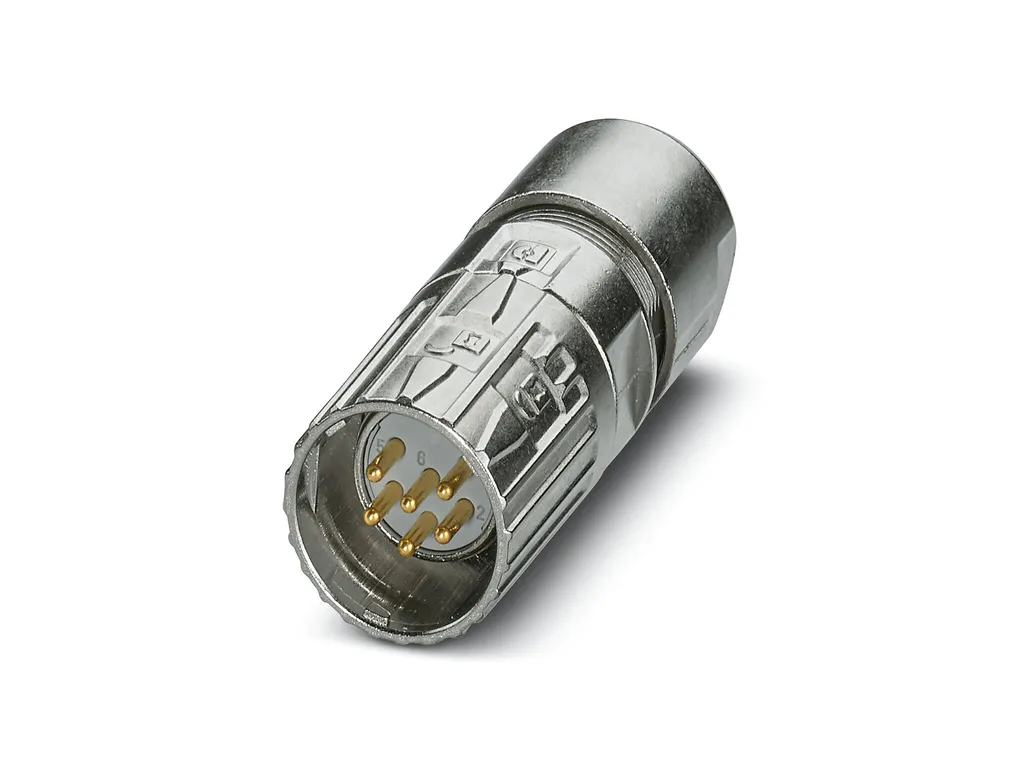

PHOENIX CONTACT 1626713
PHOENIX CONTACTNot available

RC-07P1N8A2200 - Device connector front mounting

M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Flat gasket, 4x Ø 2.7 mm, flange dimensions: 25 mm x 25 mm, Panel thickness min.: 1 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1245403
Product Code: 1626713
Partner cod.: 1626713
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesOrder information:: Order crimp contacts Ø 2 mm separately
Product propertiesProduct type: Circular connectors (device side)
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 2 mm separately
Coding: N
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 7
Direction of rotation: Standard
Connection profile: 7
Contact diameter Power contacts: 2 mm
Rated current Power contacts: 20 A
Rated voltage: 48 V AC
74 V DC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Flange dimensions: 25 mm x 25 mm
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Ambient temperature (storage/transport): 15 °C ... 25 °C
Permissible humidity (storage/transport): 50 % ... 65 %
