CA-63S1N12HZ00 - Device connector, rear mounting

M23, Device connector, rear mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 6+3, contact connection type: Socket, Solder connection, Axial seal, Central fixing, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1245473
Product Code: 1627287
Partner cod.: 1627287
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesProduct type: Circular connectors (device side)
Material specificationsFlammability rating according to UL 94: V0
ConnectorConnection 1
Head design: Socket
Insulating body
Coding: N
Insulation body material: PA 6.6
Contact material: CuZn
Contact surface material: Ni/Au
Insertion/withdrawal cycles: 100
Connection method: Solder connection
Contact switching type: Socket
Application: Signal
Number of positions: 9

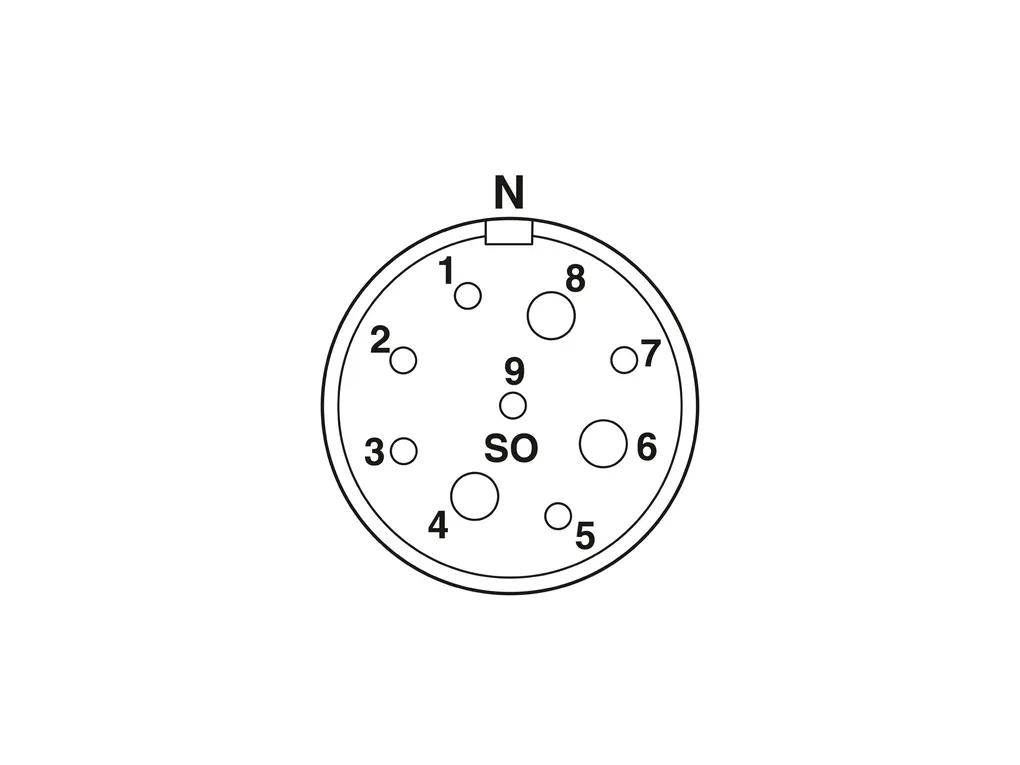

Connection profile: 6+3
Contact diameter Power contacts: 2 mm
Litz wire cross-section Power contacts max.: 2.5 mm²
Rated current Power contacts: 20 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Technical Specs
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 8.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12882.pdf
