1628989 PHOENIX CONTACT - Technology Bsa

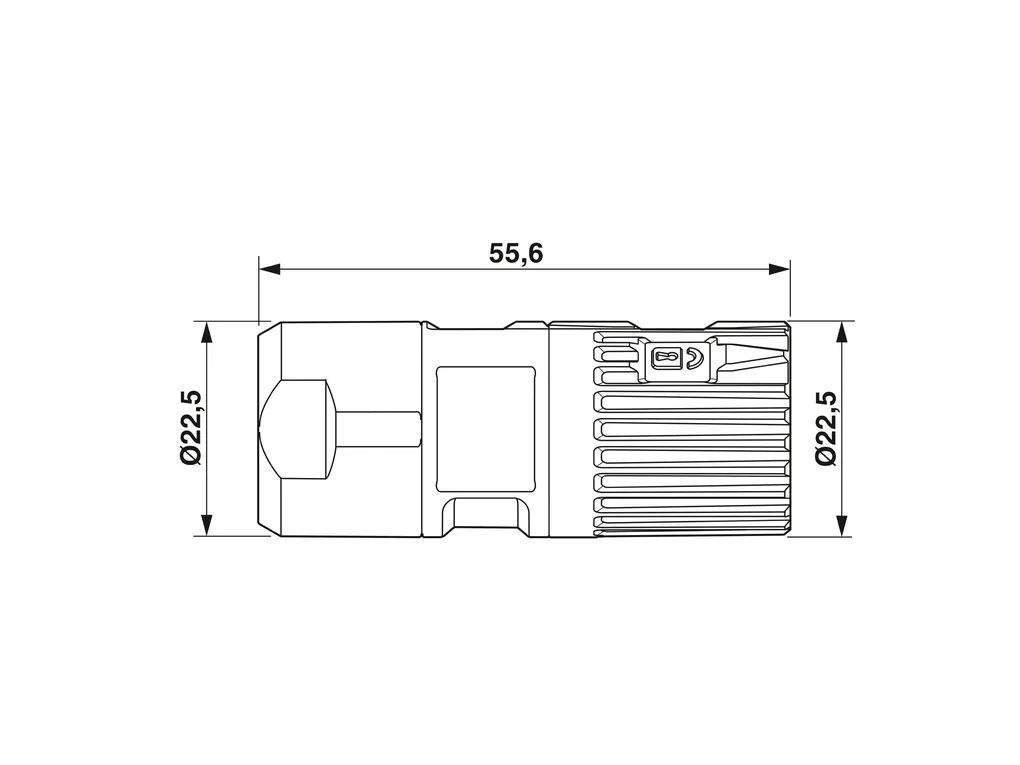

M17-6ES1N8A8002S - Cable connector

M17, Cable connector, series: M17 PRO, straight, shielded: yes, ONECLICK fast locking system, No. of pos.: 6+PE, contact connection type: Socket, Crimp connection, cable diameter range: 3.5 mm ... 6.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption6c (Pb<0.1%)

Product Code: 1628989

Partner cod.: 1628989

PHOENIX CONTACT

Notes	General: Order 7 x Ã 1 mm crimp contacts separately Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. Ã¢¢ The products are suitable for applications in plant, controller, and electrical device engineering. Ã¢¢ When operating the connectors in outdoor applications, they must be separately protected against environmental influences. Ã¢¢ Assembled products may not be manipulated or improperly opened. Ã¢¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢¢ For operating voltages > 50V AC, conductive connector housings must be grounded Ã¢¢ Ensure that the protective or functional ground has been properly connected. Ã¢¢ VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector Ã¢¢ Only use tools recommended by PhoenixContact Ã¢¢ The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. Ã¢¢ Operate the connector only when it is fully plugged in and interlocked. Ã¢¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢¢ Observe the minimum bending radius of the cable. Lay the cable without twisting it. Ã¢¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties	Product type: Circular connector (cable-side)
Connector	Insulating body Coding: N Insertion/withdrawal cycles: 100 Connection method: Crimp connection Contact switching type: Socket Application: Power Number of positions: 7 Connection profile: 6+PE Contact diameter Power contacts: 1 mm Litz wire cross-section Power contacts min.: 0.06 mm² Litz wire cross-section Power contacts max.: 1 mm² Rated current Power contacts: 14 A Note: for max. connection cross section Rated voltage: 630 V Rated surge voltage: 6 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: GD-Zn Type of locking: ONECLICK fast locking system Pg screw connection: none Degree of protection (plugged in): IP67 IP68, 24 h / 2 m Thread type: M17 Seal External cable diameter: 3.5 mm ... 6.5 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (see derating curve)
