M23-06P1N8AW500S - Device connector front mounting
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

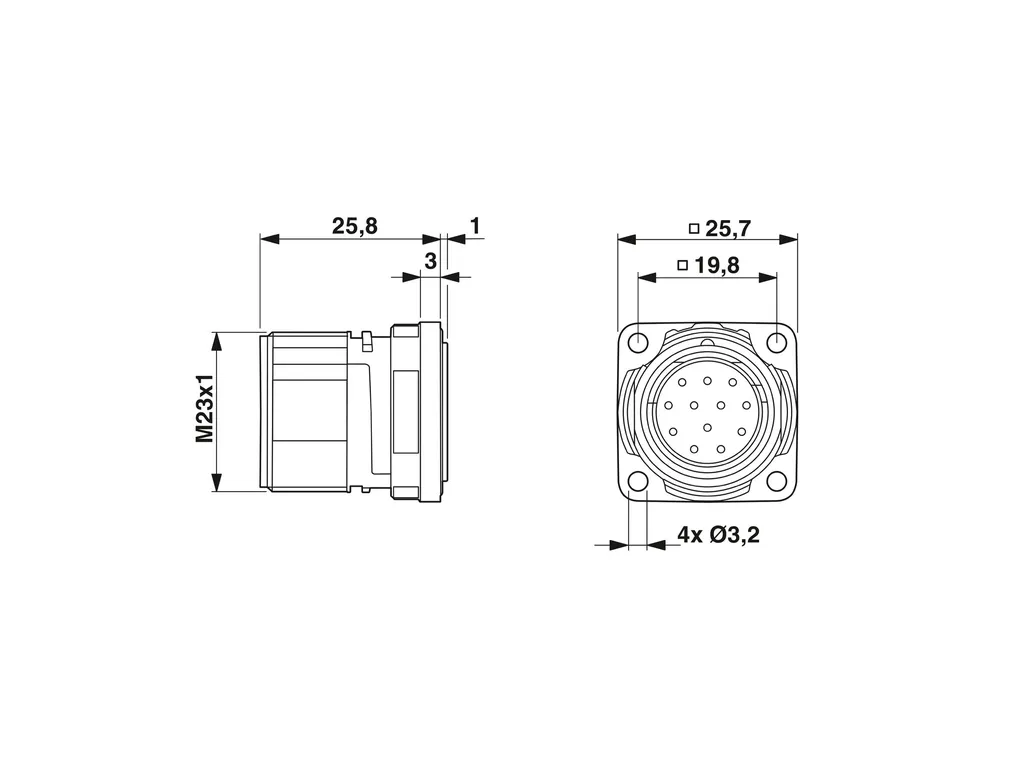

Notes | General: Order crimp contacts 6 x à 2 mm separately Please observe the derating curve. Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. ⢠WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. ⢠WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. ⢠The products are suitable for applications in plant, controller, and electrical device engineering. ⢠When operating the connectors in outdoor applications, they must be separately protected against environmental influences. ⢠Assembled products may not be manipulated or improperly opened. ⢠Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). ⢠When using the product in direct connection with third-party manufacturers, the user is responsible. ⢠For operating voltages > 50V AC, conductive connector housings must be grounded ⢠Ensure that the protective or functional ground has been properly connected. ⢠VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector ⢠Only use tools recommended by PhoenixContact ⢠The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. ⢠Operate the connector only when it is fully plugged in and interlocked. ⢠Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. ⢠Observe the minimum bending radius of the cable. Lay the cable without twisting it. ⢠The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Product properties | Product type: Circular connectors (device side) |
Material specifications | Flammability rating according to UL 94: V0 |
Connector | Insulating body Note: Order information: Order crimp contacts 6 x à 2 mm separately for max. connection cross section Coding: N Insulation body material: PA 6.6 Insertion/withdrawal cycles: 100 Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 6 Direction of rotation: Standard Connection profile: 6 Contact diameter Signal contacts: 2 mm Litz wire cross-section Signal contacts min.: 0.5 mm² Litz wire cross-section Signal contacts max.: 2.5 mm² Nominal current per signal contact: 20 A Rated voltage Signal contact: 300 V Rated surge voltage: 2.5 kV Overvoltage category: II Degree of pollution: 3 Installation height: 2000 m Housing Housing material: GD-Zn Flange dimensions: 26mm x 26mm Type of locking: for standard and ONECLICK fast locking system Pg screw connection: none Degree of protection (plugged in): IP66 / IP68 (2 m / 24 h) Thread type: M23 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -40°C ... 105°C (see to derating) Altitude: 2000 m Permanent temperature: 125°C (DINEN60512-9-2 / 1000h) |
ECLASS | ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109 |
ETIM | ETIM 9.0: EC003569 |
UNSPSC | UNSPSC 21.0: 39121400 |
