1632697 PHOENIX CONTACT - Technology Bsa

Notes	Note on application Note on application: Only for industrial use
Product properties	Product type: Cellular router Application: Ethernet MTTF: 379 Years (SN 29500 standard, temperature 25 °C, operating cycle 21%) 182 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25%) 77 Years (SN 29500 standard, temperature 40 °C, operating cycle 100%) Data management status Article revision: 00 Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	Electrical isolation: VCC // LTE // Ethernet // PE Maximum power dissipation for nominal condition: 4.8 W Mains type: Cellular communication Supply Supply voltage range: 10 V DC ... 30 V DC (Via pluggable Push-in terminal block) Typical current consumption: < 200 mA (24 V DC) 65 mA (With activated energy-saving mode) Max. current consumption: 1.7 A Function Management: Web-based management SNMPv1/v2/v3 SSHv2
Input data	Digital Description of the input: Digital input Number of inputs: 2 Voltage input signal: 10 V DC ... 30 V DC Switching level "1" signal: 10 V DC ... 30 V DC
Output data	Signal Output name: Digital output Number of outputs: 1 Voltage output signal: 10 V DC ... 30 V DC (depending on the operating voltage) Current output signal: Ã¢Ã¢°¤ 50 mA (Not short-circuit proof)
Connection data	Supply Connection method: Push-in spring connection Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 0.75 mm² Single conductor/terminal point, rigid: 0.14 mm² ... 1.5 mm² Single-wire/terminal point, flexible: 0.14 mm² ... 1.5 mm² Conductor cross section, flexible [AWG]: 26 ... 16 Stripping length: 9.00 mm
Interfaces	Web server: yes Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 Serial transmission speed: 10/100 Mbps, auto negotiation Connection method: RJ45 jack, shielded No. of channels: 2 Transmission length: 100 m (shielded twisted pair) Protocols supported: TCP/IP, UDP/IP, HTTP(S), (S)FTP VPN: IPsec, OpenVPN Auxiliary protocols: ARP, DHCP, DNS, DynDNS, PING (ICMP), SMTP(S), NTP, SSL/TLS, STARTTLS, SMS Wireless Interface description: 4G (LTE) / 3G (HSPA+) / 2G (EDGE) Frequency range: 2100 MHz (LTE (FDD), B1) 1900 MHz (LTE (FDD), B2) 1800 MHz (LTE (FDD), B3) 1700 MHz (LTE (FDD), B4) 2100 MHz (LTE (FDD), B4) 850 MHz (LTE (FDD), B5) 2600 MHz (LTE (FDD), B7) 900 MHz (LTE (FDD), B8) 700 MHz (LTE (FDD), B12) 700 MHz (LTE (FDD), B13) 800 MHz (LTE (FDD), B18) 800 MHz (LTE (FDD), B19) 800 MHz (LTE (FDD), B20) 1900 MHz (LTE (FDD), B25) 850 MHz (LTE (FDD), B26) 700 MHz (LTE (FDD), B28) 1700 MHz (LTE (FDD), B66) 2100 MHz (LTE (FDD), B66) 2000 MHz (LTE (TDD), B34) 2600 MHz (LTE (TDD), B38) 1900 MHz (LTE (TDD), B39) 2300 MHz (LTE (TDD), B40) 2500 MHz (LTE (TDD), B41) 2100 MHz (WCDMA, B1) 1900 MHz (WCDMA, B2) 1700 MHz (WCDMA, B4) 2100 MHz (WCDMA, B4) 850 MHz (WCDMA, B5) 850 MHz (WCDMA, B6) 900 MHz (WCDMA, B8) 800 MHz (WCDMA, B19) 1900 MHz (TD-SCDMA-GSM/EDGE, PCS) 1800 MHz (TD-SCDMA-GSM/EDGE, DCS) 900 MHz (TD-SCDMA-GSM/EDGE, E-GSM) 850 MHz (TD-SCDMA-GSM/EDGE, GSM) Data rate: Ã¢Ã¢°¤ 150 Mbps (LTE, DL) Ã¢Ã¢°¤ 50 Mbps (LTE, UL) Number: 2 Connection method: SMA (female) Impedance: 50 Ã© SIM Interface: 1.8 V, 3 V, mini SIM (2FF) LTE: CAT4 Country support: Global

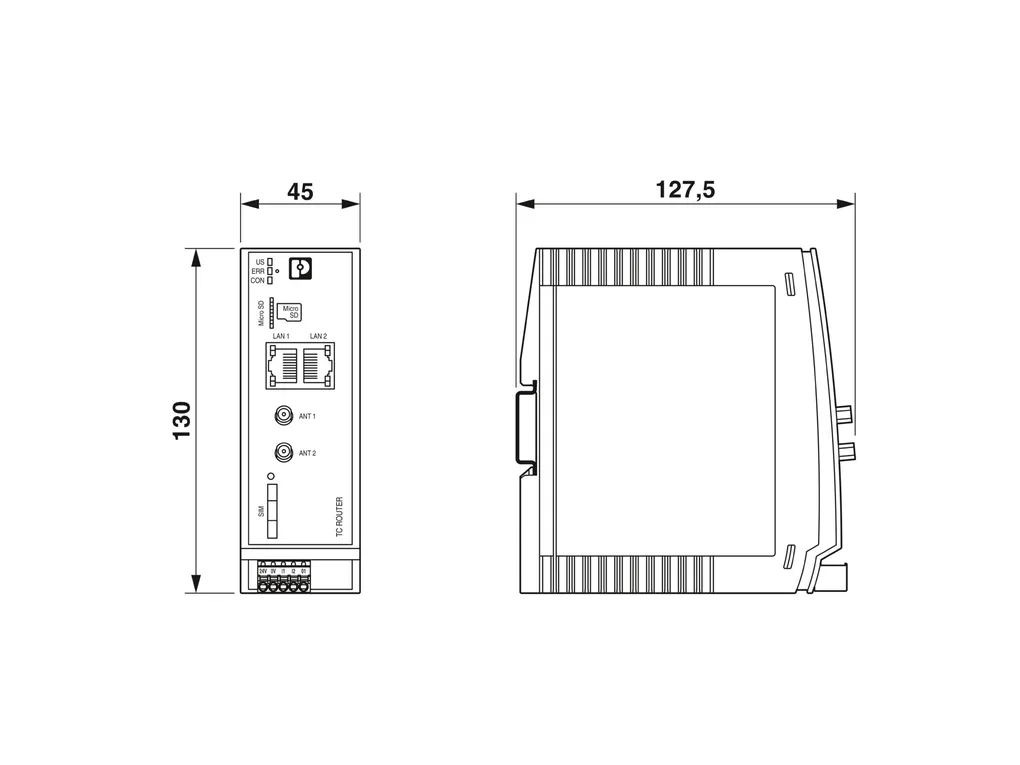

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/23010/full/b1500?format=jpg Width: 45 mm Height: 130 mm Depth: 127 mm
Material specifications	Color (Upper housing part): light gray (RAL 7035) Material (Housing): Polycarbonate
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40 °C ... 70 °C (Maximum transmission power 5 dBm) -40 °C ... 60 °C (Maximum transmission power 23 dBm) Ambient temperature (storage/transport): -40 °C ... 85 °C Altitude: Ã¢Ã¢°¤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) Permissible humidity (operation): 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
Approvals	CE Certificate: CE-compliant UL, USA Identification: Class I, Zone 2, AEx ec IIC T4 Gc Class I, Div. 2, Groups A, B, C, D T4 UL, Canada Identification: Ex ec IIC T4 Gc X Corrosive gas test Identification: ISA-S71.04-1985 G3 Harsh Group A Wireless approval USA, FCC Certificate: XMR202212EG25GL Wireless approval Canada, IC Certificate: 10224A-2022EG25GL
EMC data	Electromagnetic compatibility: Conformance with RED Directive 2014/53/EU Noise immunity: EN 61000-6-2 Electrostatic discharge Standards/regulations: EN 61000-4-2 Electrostatic dischargeÃ¢Ã¢¬Ã¢¹ Contact discharge: Ã± 6 kV (Test Level 3) Discharge in air: Ã± 8 kV (Test Level 3) Comments: Criterion B Electromagnetic HF field Standards/regulations: EN 61000-4-3 Electromagnetic HF fieldÃ¢Ã¢¬Ã¢¹ Frequency range: 80 MHz ... 3 GHz (Test Level 3) Field intensity: 10 V/m Comments: Criterion A Fast transients (burst) Standards/regulations: EN 61000-4-4 Fast transients (burst)Ã¢Ã¢¬Ã¢¹ Input: Ã± 2 kV (Test Level 3) Signal: Ã± 2 kV (Ethernet) Comments: Criterion B Surge current load (surge) Standards/regulations: EN 61000-4-5 Surge current load (surge)Ã¢Ã¢¬Ã¢¹ Input: Ã± 0.5 kV (symmetrical) Ã± 1 kV (asymmetrical) Signal: Ã± 1 kV (Data line, asymmetrical) Comments: Criterion B Conducted interference Standards/regulations: EN 61000-4-6 Conducted interferenceÃ¢Ã¢¬Ã¢¹ Frequency range: 0.15 MHz ... 80 MHz Comments: Criterion A Voltage: 10 V Emitted interference Radio interference voltage in acc. with EN 55011: Class B, area of application: Industry and residential Emitted radio interference in acc. with EN 55011: Class B, area of application: Industry and residential Criteria Criterion A: Normal operating behavior within the specified limits. Criterion B: Temporary impairment to operational behavior that is corrected by the device itself.
Mounting	Mounting type: DIN rail mounting Assembly note: Indoor installation Mounting position: Vertical (horizontal DIN rail)
