KV-M-M50-GD-( 8) - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Full screw connection Application: for data connectors No. of conductors: 1 Manufacturer: Pflitsch Manufacturer Designation: 25056 dpmk 1/8 Shielded: no |
Characteristics | Conductor sealing range: 7.50 mm ... 8.00 mm |

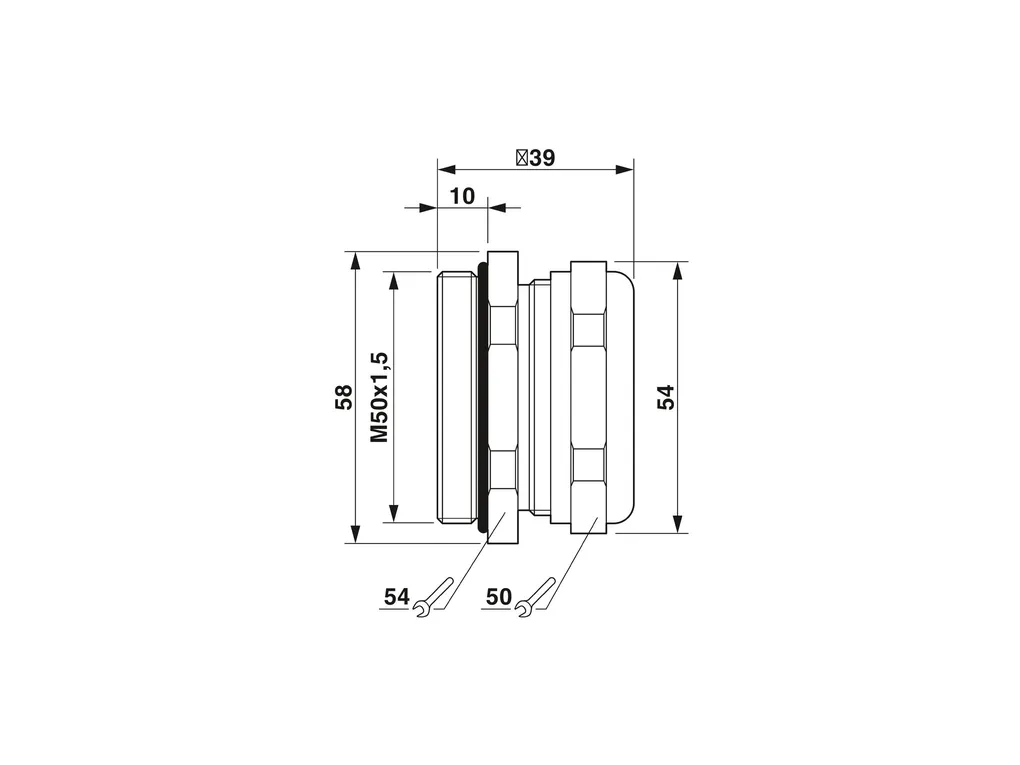

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c1e5d52f47e6a344b8a1595de5b90f72/-S204x204-FJPG Height: 58 mm Length: 39 mm Length of the connecting thread: 10 mm Wrench size, union nut: 50 mm Wrench size, support: 54 mm Hexagon angular dimension: 58 mm Thread type connection side: M50 x 1.5 Thread pitch: 1.5 mm Internal dimensions Internal diameter: 37 mm |
Material specifications | Color: Brass Seal material O-ring: NBR Seal material: TPE Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (Cable 1): 7.5 mm ... 8 mm Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
