| Product properties | Product type: Full screw connection No. of conductors: 1 Type: with cable bend protection and strain relief Manufacturer: wafi Shielded: no |

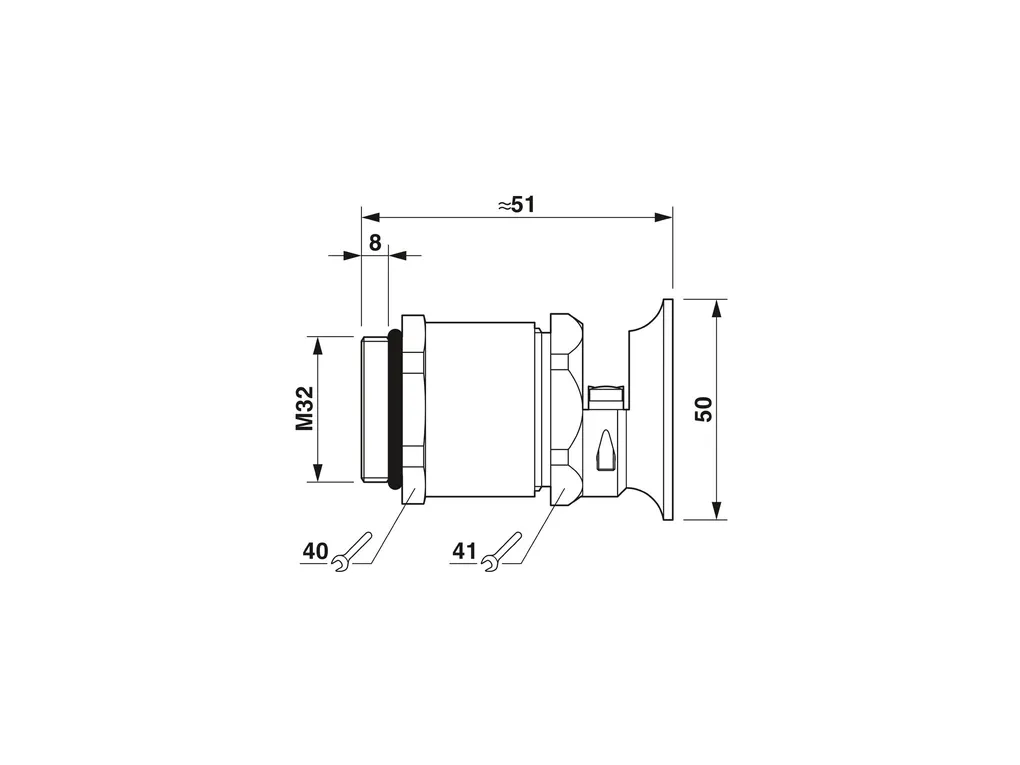

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/11b4d7fe173f324a9436396d94ee70be/-S204x204-FJPG Length: 51 mm Length of the connecting thread: 8 mm Length without connecting thread: 43 mm Diameter: 32 mm Connecting thread diameter: 32 mm Wrench size, union nut: 41 mm Wrench size, support: 40 mm Clamping range of the strain relief clip: 20.00 mm ... 30.00 mm Hexagon angular dimension: 50 mm Thread type connection side: M32 x 1.5 Thread pitch: 1.5 mm |
| Connection data | Tightening torque: 18 Nm (Support sleeve) 12 Nm (Union nut) |
| Material specifications | Seal material O-ring: NBR Seal material Cable seal: Perbunan Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (Cable 1): 18 mm ... 27 mm Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -20°C ... 80°C (static) |
