ENLAR-M-KV-M32/M40 - Extension adapter
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Extension adapter |

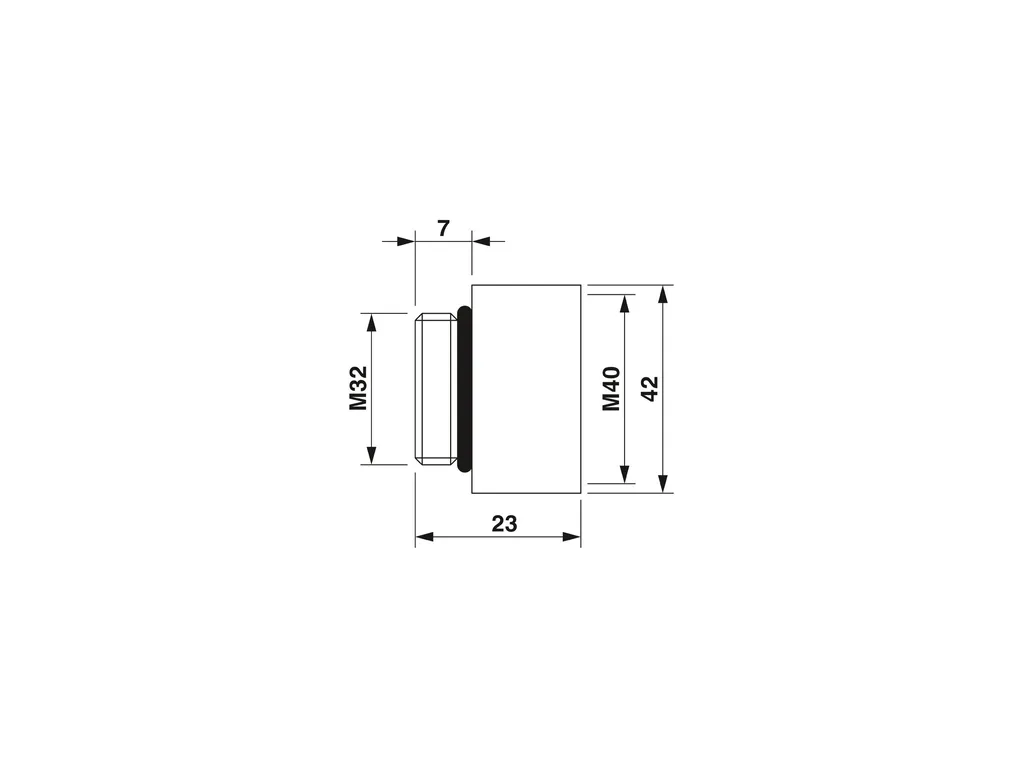

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b71746010ab11b4a88c18ef1ab82e31e/-S204x204-FJPG Length: 23 mm Length of the connecting thread: 7 mm Length without connecting thread: 16 mm Diameter: 32 mm Connecting thread diameter: 32 mm Hexagon angular dimension: 42 mm Thread type connection side: M32 x 1.5 Thread pitch: 1.5 mm Thread type on seal side: M40 |
Material specifications | Material: Brass, nickel-plated Seal material O-ring: NBR |
Cable/line | External cable diameter (): 26 mm Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (Depends on the screw connection used) Ambient temperature (operation): -20°C ... 80°C |
Mounting | Assembly instructions: With corresponding screw connection: IP68 |
ECLASS | ECLASS-11.0: 27430314 ECLASS-13.0: 27430314 ECLASS-12.0: 27430314 |
ETIM | ETIM 9.0: EC000938 |
UNSPSC | UNSPSC 21.0: 31163000 |
