| Notes | General: for flexible conductors with or without ferrules Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |

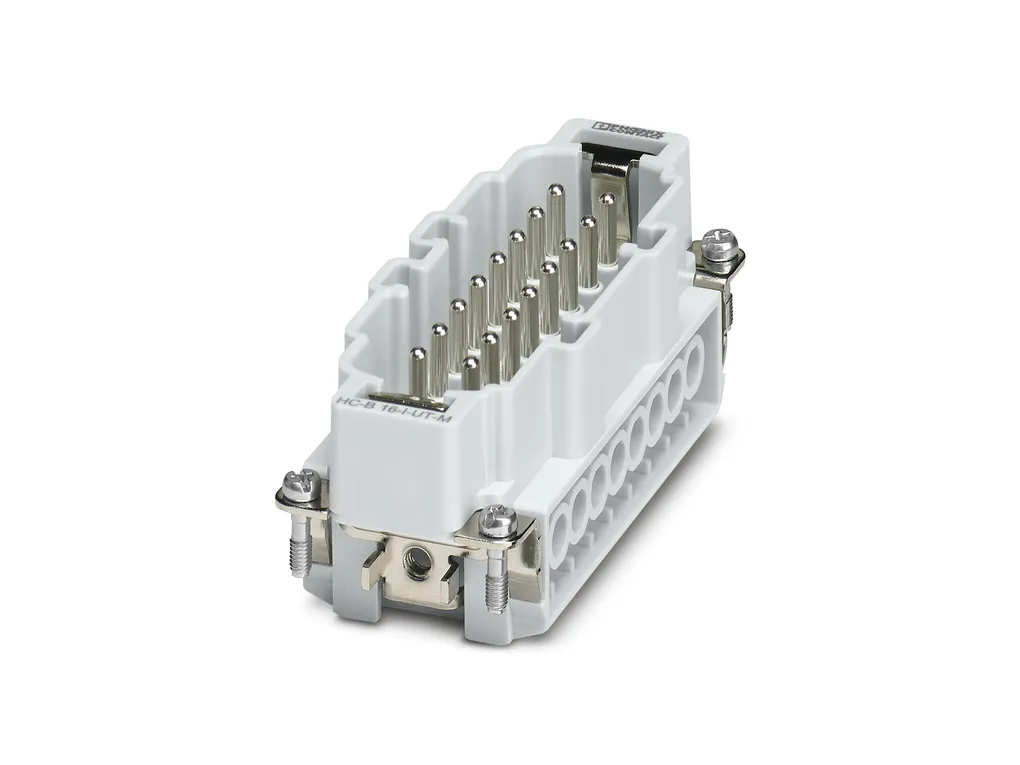

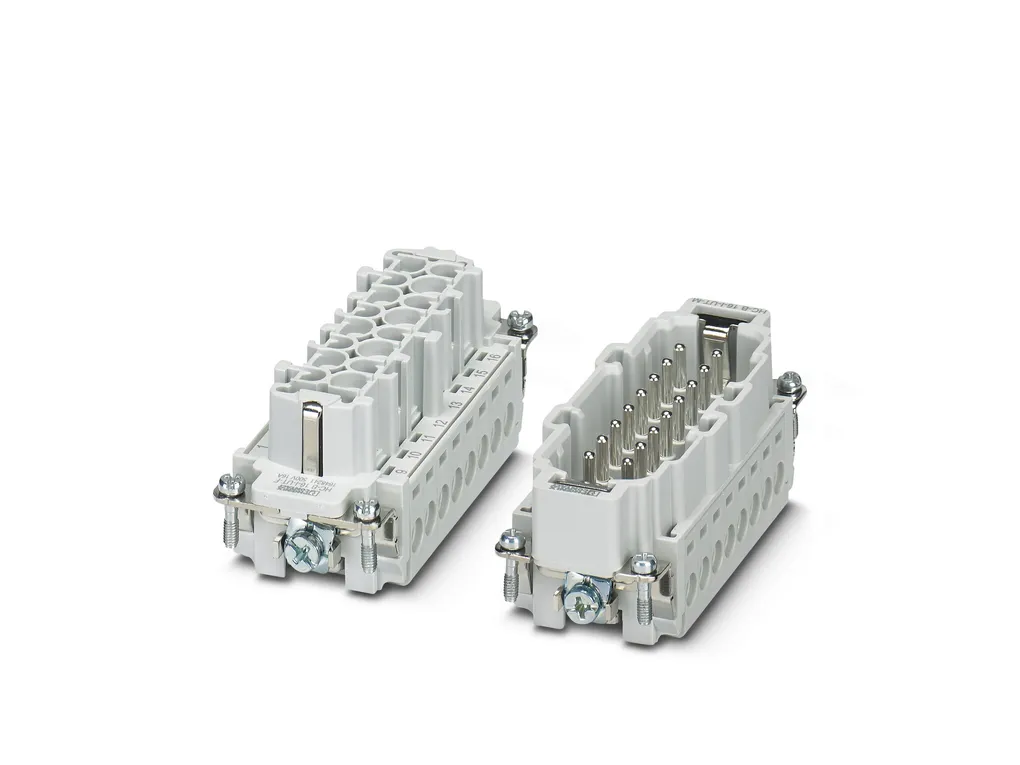

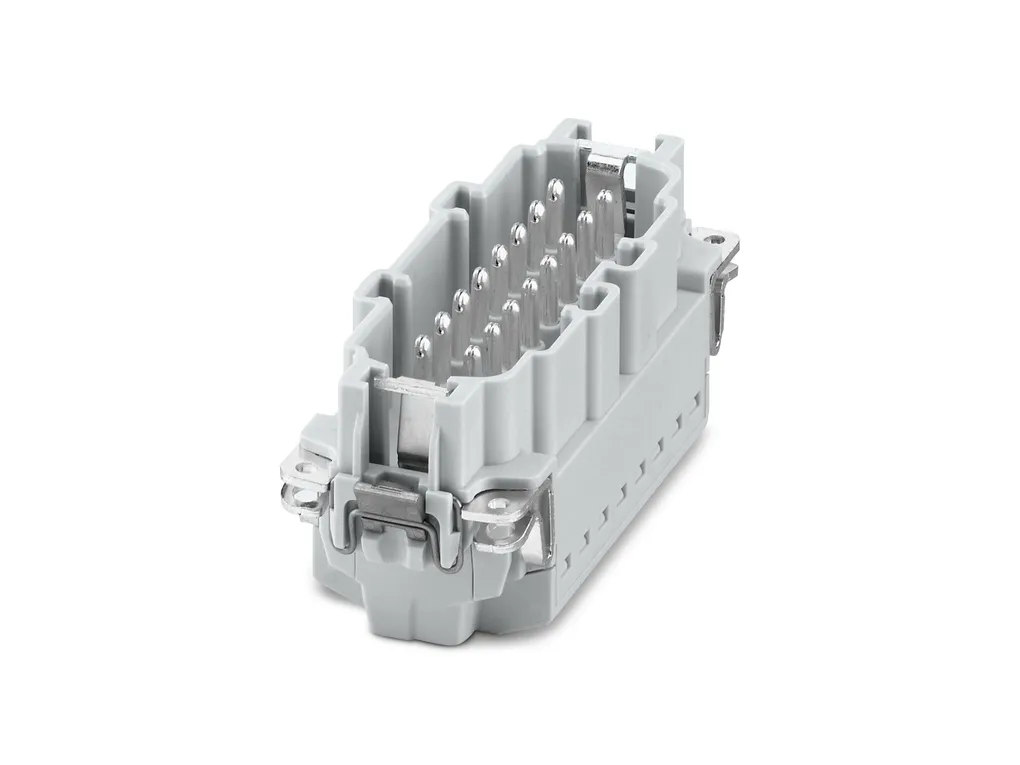

| Product properties | Type: B16 B32 Product type: Contact insert with a fixed no. of positions Number of positions: 16 Connection profile: 16+PE Contact numbering: 1 - 16 Application: Power Number of connections per position: 1 Contact material type: turned Series: HC-B Screwdriver blade: 0.5 x 3.5 mm Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4b6c3d9bb1da844cbd92fb01c5d430ef/-S204x204-FJPG Width: 34 mm Height: 32 mm Length: 84 mm Drill hole distance, horizontal: 77.5 mm Drill hole distance, vertical: 27 mm Mechanical characteristics Contact diameter: 2.5 mm |
| Connection data | Connection technology Connection technology: Screw connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 20 ... 14 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) 0.5 Nm ... 0.8 Nm Stripping length of the individual wire: 8 mm |
| Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A SCCR: 5 kA (UL 2237) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts) |
| Standards and regulations | Constructional and testing regulations: DINEN61984 DINEN60664 IEC 60352 Tests: DINEN61984 DINEN60664 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
| ETIM | ETIM 9.0: EC000438 |
| UNSPSC | UNSPSC 21.0: 39121500 |
