| Notes | General: For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B6 type Connectors may be operated only when there is no load/voltage. |
| Product properties | Type: B6 for the left side of the control cabinet Product type: Terminal adapter Number of positions: 6 Connection profile: 6+PE Contact numbering: 1 - 6 Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A SCCR: 5 kA (UL 2237) |
| Connection data | Connection technology Connection technology: Push-in connection Conductor connection Conductor cross section: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 22 ... 12 Stripping length of the individual wire: 10 mm (13Ãmm with ferrule) |

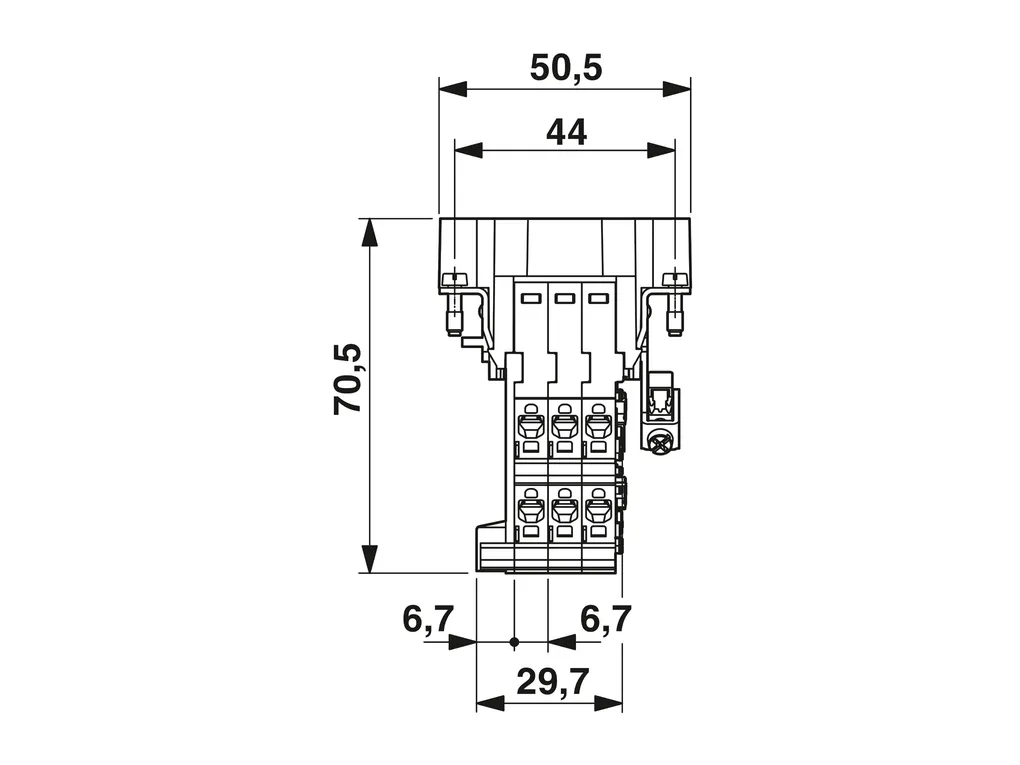

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ad3dc0bc5ea4c7438d91abc8af8efdb9/-S204x204-FJPG Width: 34 mm Height: 70.5 mm Length: 50.5 mm Drill hole distance, horizontal: 44 mm Drill hole distance, vertical: 27 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) |
| Cable/line | Stripping length of the individual wire: 10 mm (13Ãmm with ferrule) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
| Standards and regulations | Constructional and testing regulations: DINÃENÃ61984 DINÃENÃ60664 IEC 60352 Tests: DINÃENÃ61984 DINÃENÃ60664 IEC 60352 Testing Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required 1) Use ferrules. 0.5Ãmm² ... 2.5Ãmm² with insulating collar, length: 10Ãmm, stripping length: 13Ãmm, 2) screwdriver SZF0-0,4x2,5 (similar to DINÃ5264) |
