Not available
| Notes | General: With lockable pressure lock |
| Product properties | Product type: Mounting frame Type: for 1 front plate |

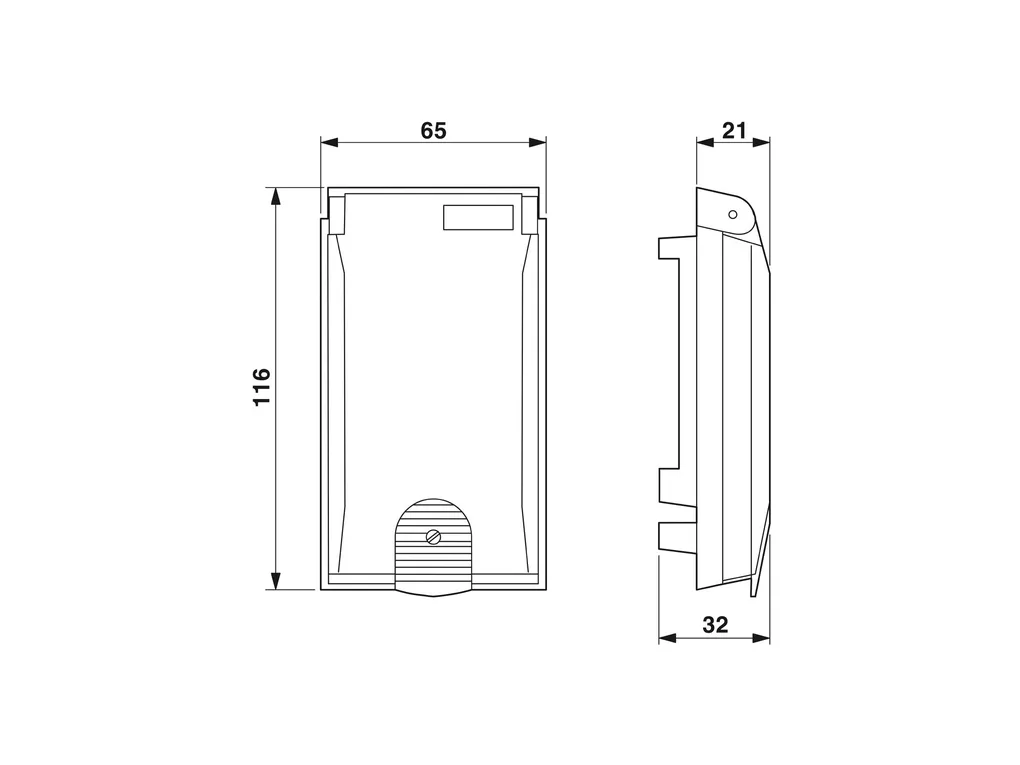

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/65b39f59fa1c9f46a89e03e44bb6640e/-S204x204-FJPG Width: 65 mm Height: 38 mm Length: 120 mm Installation dimensions Width of the assembly cutout: 52 mm Length of the assembly cutout: 91 mm |
| Material specifications | Material: Zinc alloy Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -10°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C |
| Mounting | Assembly instructions: Suitable for panel thicknesses 1 mm ... 5 mm |
