| Notes | General: With lockable pressure lock |
| Product properties | Product type: Mounting frame Type: for 2 front plates |

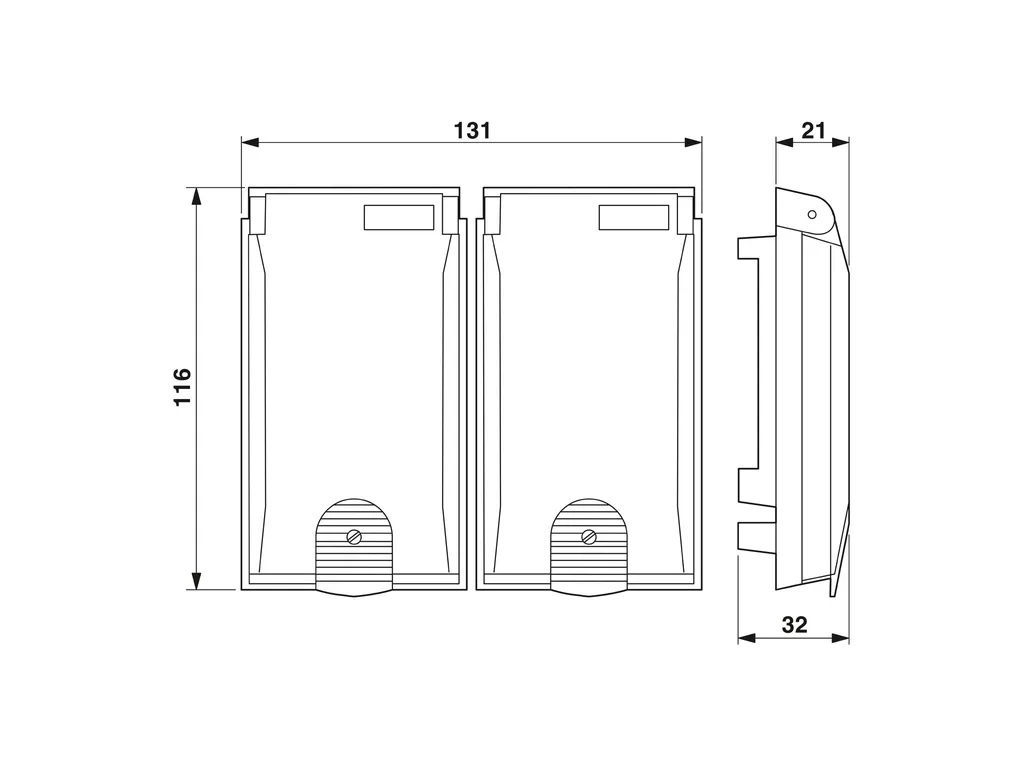

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f02830d9e8246a45a2c720123a46216f/-S204x204-FJPG Width: 130 mm Height: 35 mm Length: 120 mm Installation dimensions Width of the assembly cutout: 117 mm Length of the assembly cutout: 91 mm |
| Material specifications | Material: Zinc alloy Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -10°C ... 60°C Ambient temperature (storage/transport): -25°C ... 70°C |
| Mounting | Assembly instructions: Suitable for panel thicknesses 1 mm ... 5 mm |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27182806 |
| ETIM | ETIM 9.0: EC000456 |
| UNSPSC | UNSPSC 21.0: 31261500 |
