Not available
| Notes | General: with yellow LED display |

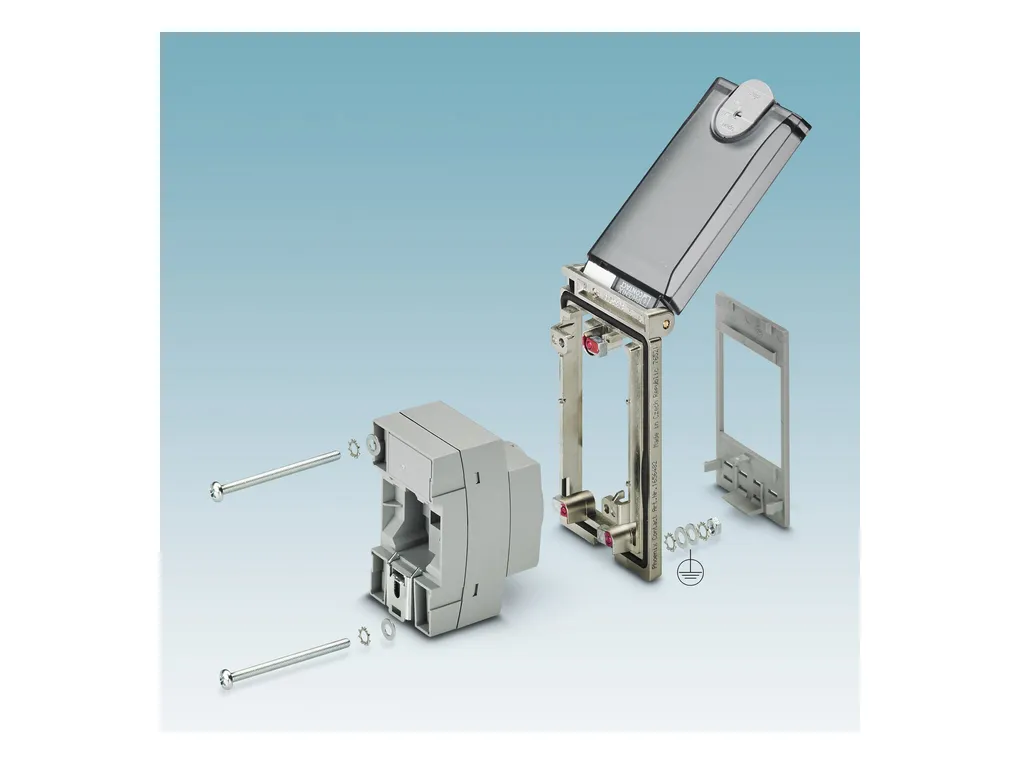

| Product properties | Product type: Socket Country ID: Germany |
| Electrical properties | Rated voltage (III/3): 250 V Rated current: 16 A |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/aae8f38379d66d42bef8702c7f99e2d7/-S204x204-FJPG Width: 50.7 mm Height: 87.5 mm Depth: 67.9 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
| Mounting | Assembly instructions: suitable for all mounting frames Connection method: Screw connection |
| ECLASS | ECLASS-11.0: 27144021 ECLASS-12.0: 27144021 ECLASS-13.0: 27144021 |
| ETIM | ETIM 9.0: EC000450 |
| UNSPSC | UNSPSC 21.0: 39121400 |
