1656668 PHOENIX CONTACT - Technology Bsa

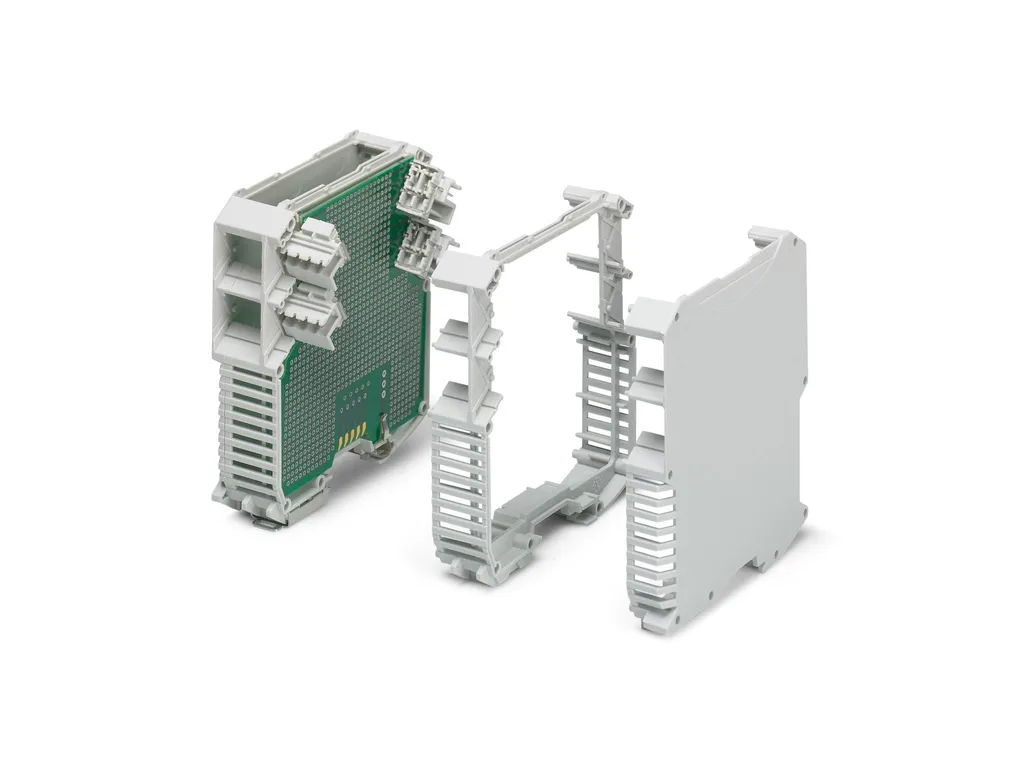

ME MAX 45 MT 3-3 RD3001 - Intermediate element

DIN rail housing, Intermediate element, tall design, with vents, width: 22.6 mm, height: 99 mm, depth: 112.85 mm, color: red (similar RAL 3001)

Product Code: 1656668 Copia - Copy

Partner cod.: 1656668 Copia - Copy

PHOENIX CONTACT

Notes	Assembly note: Refer to the data sheet for the range in the download area.
Product properties	Product type: Complete housing center part Housing type: DIN rail housing Housing series: ME-MAX Product family: ME MAX 45.. Number of rows: 3 Type: Intermediate element, tall design Ventilation openings present: yes Data management status Article revision: 00
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/22580/full/b1500?format=jpg Width: 22.6 mm Height: 99 mm Depth: 112.85 mm Depth from top edge of DIN rail: 107 mm
Material specifications	Color: red (RAL 3001) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide Surface characteristics: untreated
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) Ambient temperature (storage/transport): -40 °C ... 55 °C Ambient temperature (assembly): -5 °C ... 100 °C Relative humidity (storage/transport): 80 %
PCB data	Type of PCB mount: Latching
Mounting	Mounting type: DIN rail mounting
