Not available
| Product properties | Product type: Data front plate Number of slots: 2 Type: Female/Female |
| Electrical properties | Rated voltage (III/3): 50 V Rated current: 1 A |

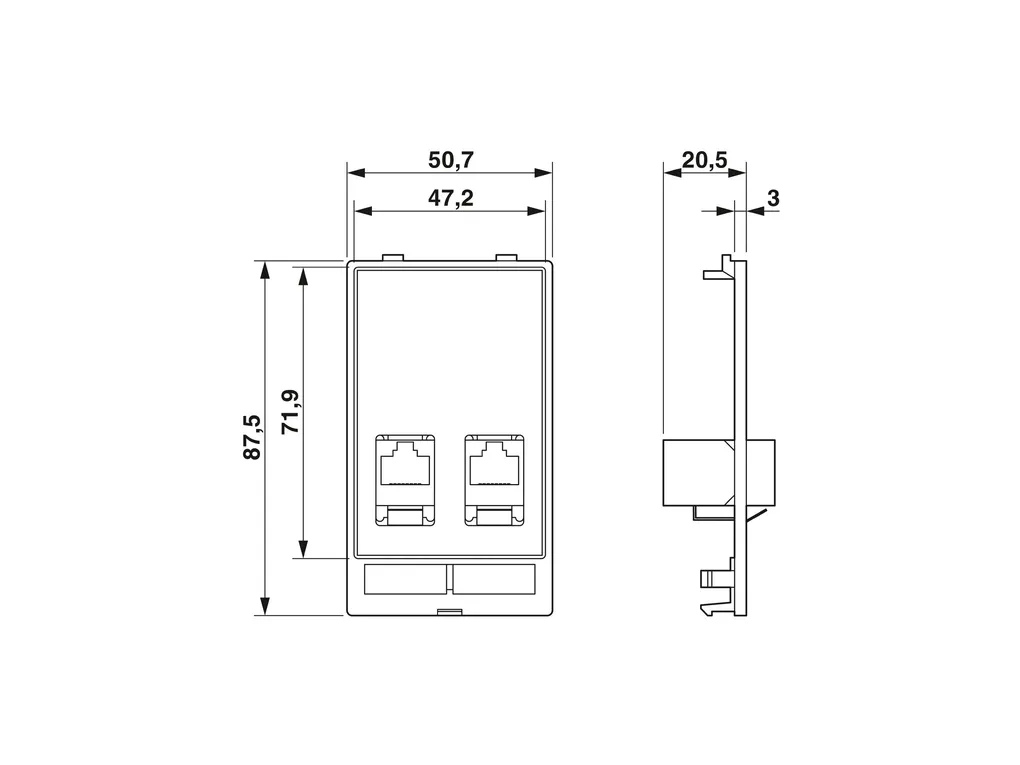

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8d06aa7b90650e45b339e2a4b42f6ed9/-S204x204-FJPG Width: 51 mm Height: 45 mm Length: 87.5 mm |
| Material specifications | Material: PBT Flammability rating according to UL 94: V0 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
| Mounting | Assembly instructions: suitable for all mounting frames |
