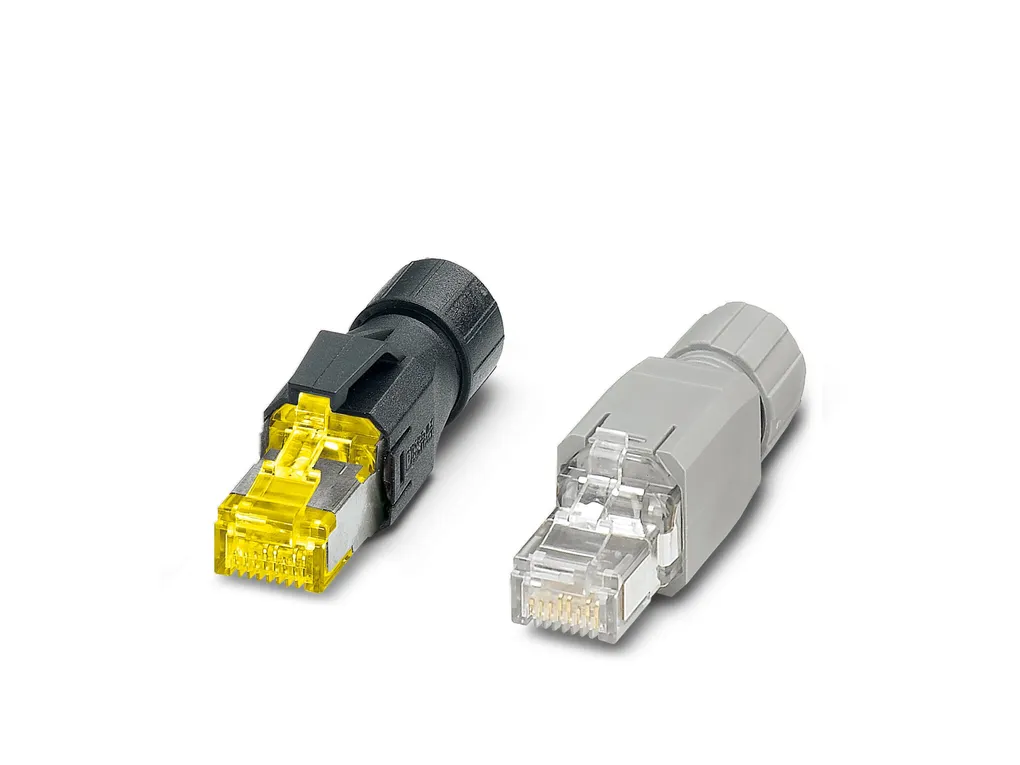

VS-08-RJ45-5-Q/IP20 BK - RJ45 connector
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: RJ45 Product type: Data connector (cable side) Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Positions/contacts: 8P8C Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
Electrical properties | Rated voltage (III/3): 72 V (DC) Rated surge voltage: 330 kV Rated current: 1.75 A Contact resistance: < 20 mé (Contact) < 100 mé (shield) > 10 mé (Wire â IDC) 0.005 é (Litz wires â IDC) Frequency range: 100 MHz Insulation resistance: > 500 Mé Nominal voltage UN: 48 V Nominal current IN: 1.75 A Contact resistance per contact pair: < 20 é Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 1 Gbps Power transmission: PoE++ |
Connection data | Connection technology Connection method: Insulation displacement connection Connection cross section AWG: 26 ... 23 (solid) 26 ... 23 (flexible) Conductor cross section: 0.14 mm² ... 0.25 mm² (solid) 0.14 mm² ... 0.25 mm² (flexible) Connection in acc. with standard: In accordance with IEC 60603-7-1 Cable outlet, angle: 180 |
Dimensions | Width: 14 mm Height: 14.6 mm Length: 55.85 mm |
Material specifications | Color: black Material: Plastic Flammability rating according to UL 94: V0 Cable seal material: NBR Contact material: CuSn Contact surface material: Au/Ni Contact carrier material: PC O-ring material: FPM Locking latch material: PC Material for screw connection: PA Housing material: Plastic |
Cable/line | External cable diameter (): 4.5 mm ... 8 mm External cable diameter: 4.5 mm ... 8 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V Halogen-free: no |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠1000 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N |
Environmental and real-life conditions | Test specification Type of test: Vibration test Specification: IEC 60068-2-6 Frequency: 10-500 Hz Sweep speed: 1octave/min Amplitude: 0.35 mm Acceleration: 50 m/s² Test duration: 20 s Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C |
Mounting | Mounting type: For field assembly Connection method: Insulation displacement connection |
ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
ETIM | ETIM 9.0: EC002636 |
UNSPSC | UNSPSC 21.0: 39121400 |
