| Notes | General: For wall cutouts of type D25 |
| Product properties | Type: D25 Product type: Cover plate Seal present: yes |

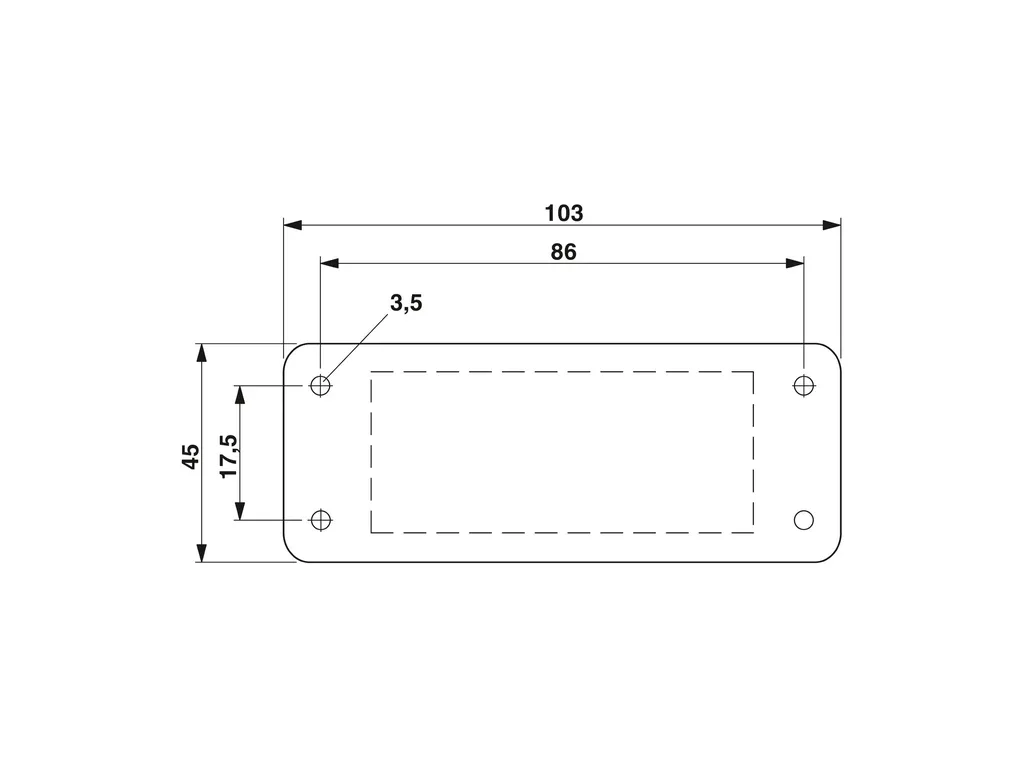

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c047b7b5ac236540b94bb5222162f5e4/-S204x204-FJPG Width: 45 mm Height: 3.5 mm Length: 103 mm Drill hole distance, horizontal: 86 mm Drill hole distance, vertical: 17.5 mm Hole diameter: 3.5 mm Installation dimensions Width of the assembly cutout: 24 mm Length of the assembly cutout: 74 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: HB Seal material: PTS |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -20°C ... 100°C |
