PHOENIX CONTACT 1661448
PHOENIX CONTACT 1661448
PHOENIX CONTACTNot available

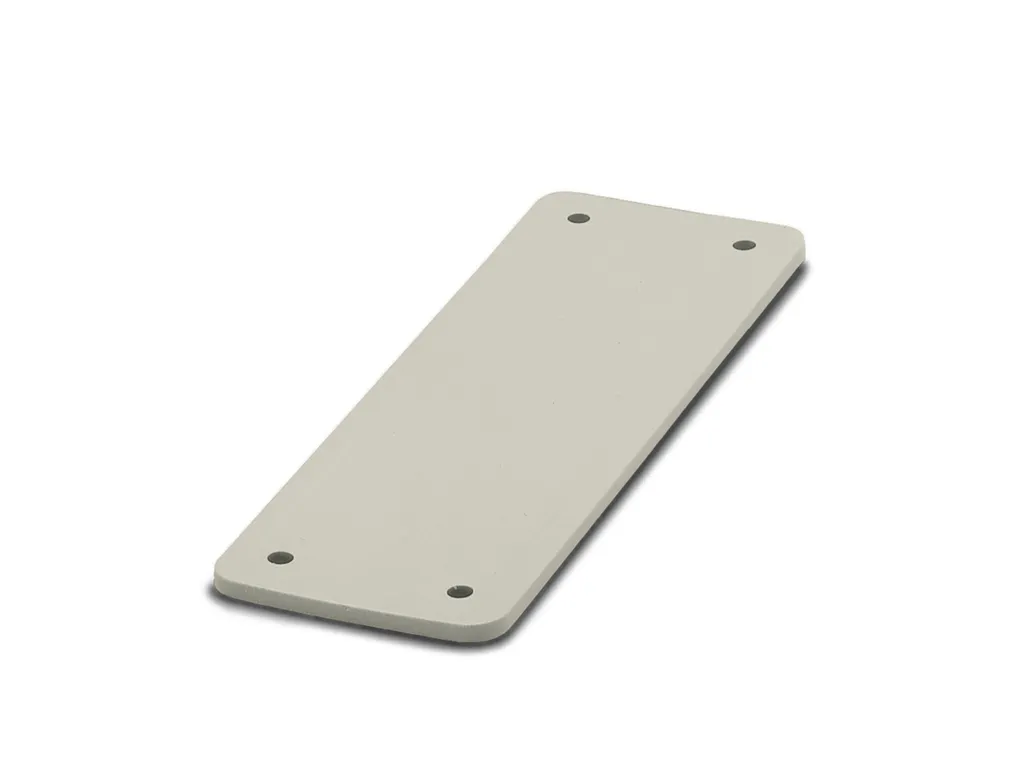

HC-B 24-ADP-3D 7-GY - Adapter plate

HEAVYCON adapter plate with a reinforced wall, three openings for D7 panel mounting base; type B24 on 3xD7, for panel cutouts of type B24; gray
Product Code: 1661448
Partner cod.: 1661448
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: For wall cutouts of type B24
Product propertiesType: B24
Product type: Adapter plate
Seal present: yes

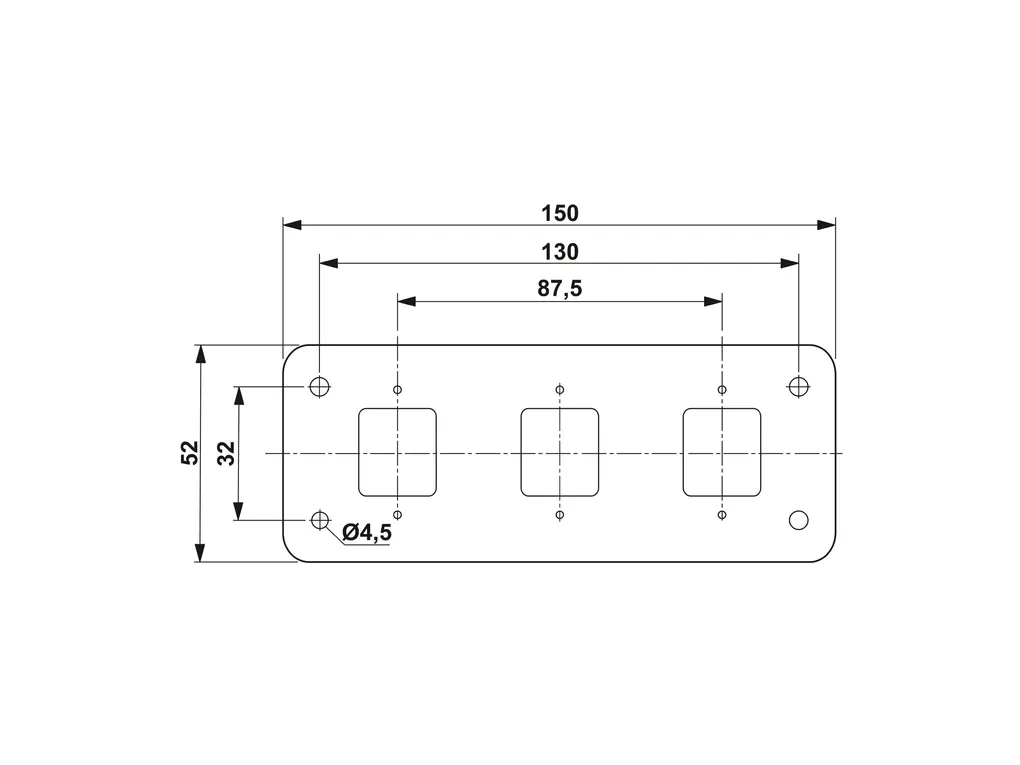

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ebaa2e240c88824eb3edc4a39948253b/-S204x204-FJPG
Width: 52 mm
Height: 7 mm
Length: 150 mm
Drill hole distance, horizontal: 130 mm
Drill hole distance, vertical: 32 mm
Hole diameter: 4.5 mm
Installation dimensions
Width of the assembly cutout: 36 mm
Length of the assembly cutout: 113 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: HB
Seal material: PTS
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP54
Ambient temperature (operation): -20°C ... 100°C
