1667905 PHOENIX CONTACT - Technology Bsa

TGGM/CDIO/17-BU - Cable connector

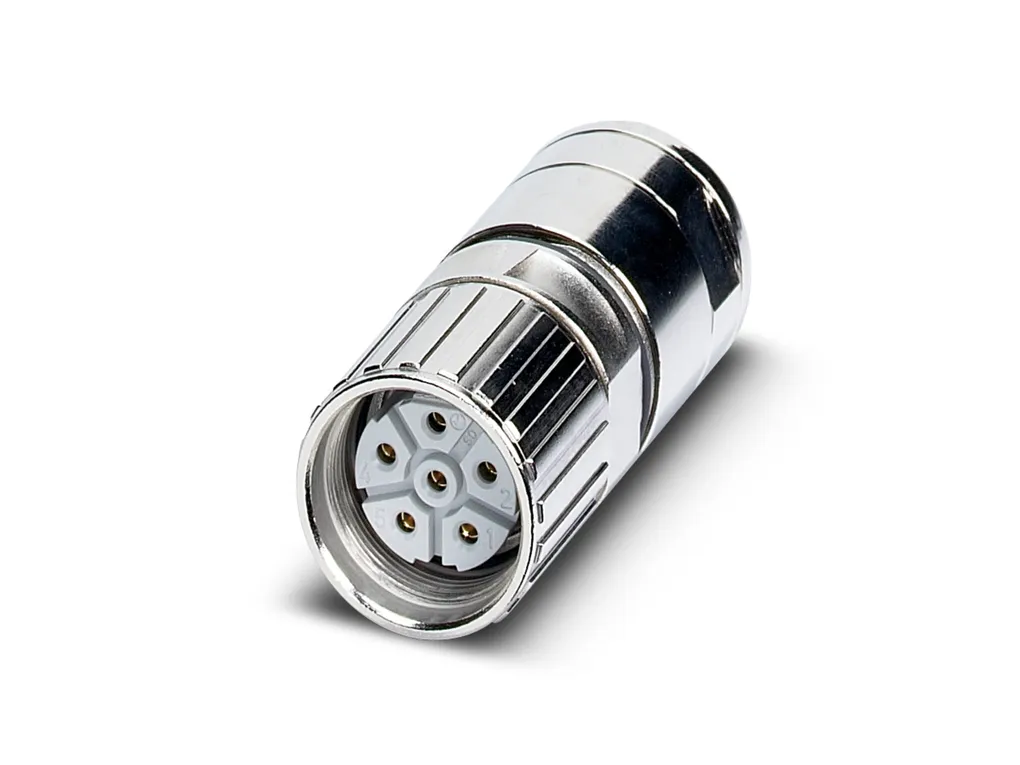

M23, Cable connector, series: UC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1245643

Product Code: 1667905 Copia - Copy

Partner cod.: 1667905 Copia - Copy

PHOENIX CONTACT

Mounting	Connection method: Crimp contacts, turned
Product properties	Product type: Circular connector (cable-side) Number of positions: 17
Material specifications	Seal material: NBR Housing material: CuZn, zinc die-cast
Connection data	Conductor connection Connection method: Crimp contacts, turned
Electrical properties	Contact Contact diameter: 1 mm Min. cross section: 0.14 mm² Max. cross section: 0.56 mm² ContactÃ¢Ã¢¬Ã¢¹ Contact diameter: 1 mm Min. cross section: 0.5 mm² Max. cross section: 0.75 mm²
Connector	Insulating body Note: Order information: Order crimp contacts ÃÃ 1 mm separately Coding: N Connection method: Crimp connection Contact switching type: Socket Application: Signal Number of positions: 17 Direction of rotation: Standard Connection profile: 17 Contact diameter Power contacts: 1 mm Rated current Power contacts: 8 A Rated voltage: 48 VÃAC 74 VÃDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Order information:: Order contact inserts separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: Pg16 Degree of protection (plugged in): IP67 Thread type: M23
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 125°C (short-term up to 145°C)
