| Product properties | Product type: Plug for cable screw gland |

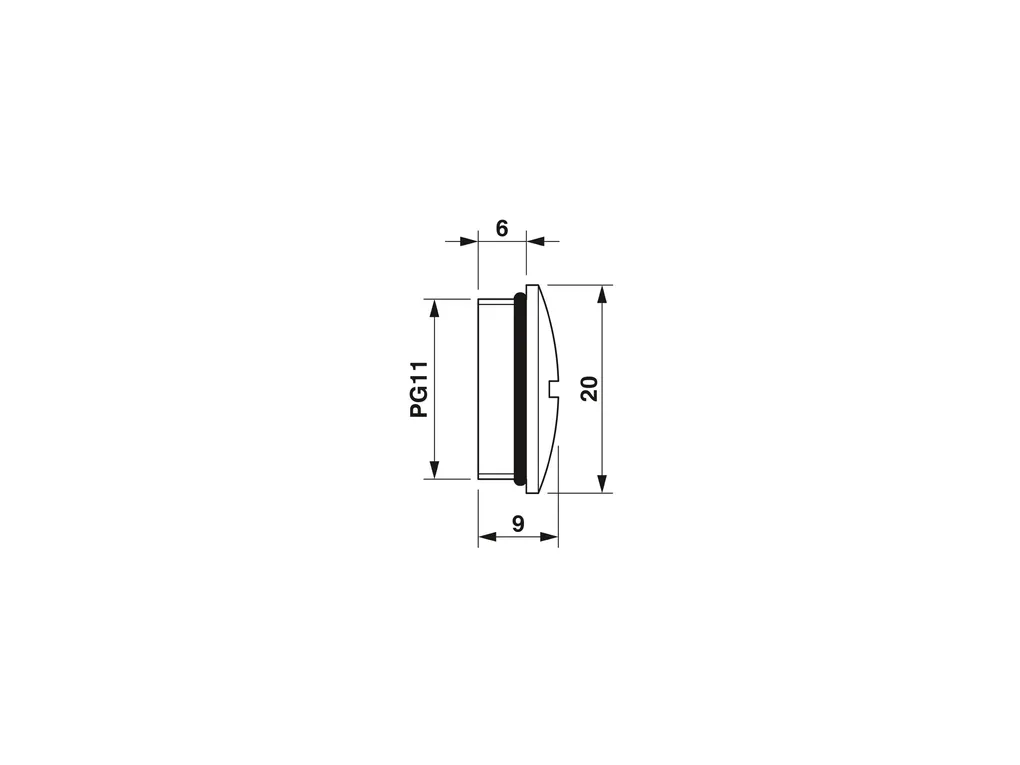

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d07a2299d60c3f4b832adff54f961a01/-S204x204-FJPG Length: 8 mm Length of the connecting thread: 4.5 mm Diameter: 22 mm Hexagon angular dimension: Diameter (no corners) Thread type connection side: Pg11 |
| Material specifications | Material: Brass, nickel-plated Seal material O-ring: NBR Housing surface material: Nickel Material for screw connection: Brass, nickel-plated |
| Cable/line | Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -20°C ... 80°C |
