PHOENIX CONTACT 1674503
PHOENIX CONTACTNot available

HC-BS-PG13 - Screw plug

Screw plug, material for screw connection: Brass, nickel-plated, connecting thread: Pg13.5, color: silver
Product Code: 1674503
Partner cod.: 1674503
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesProduct type: Plug for cable screw gland
Pg screw connection: Pg13,5

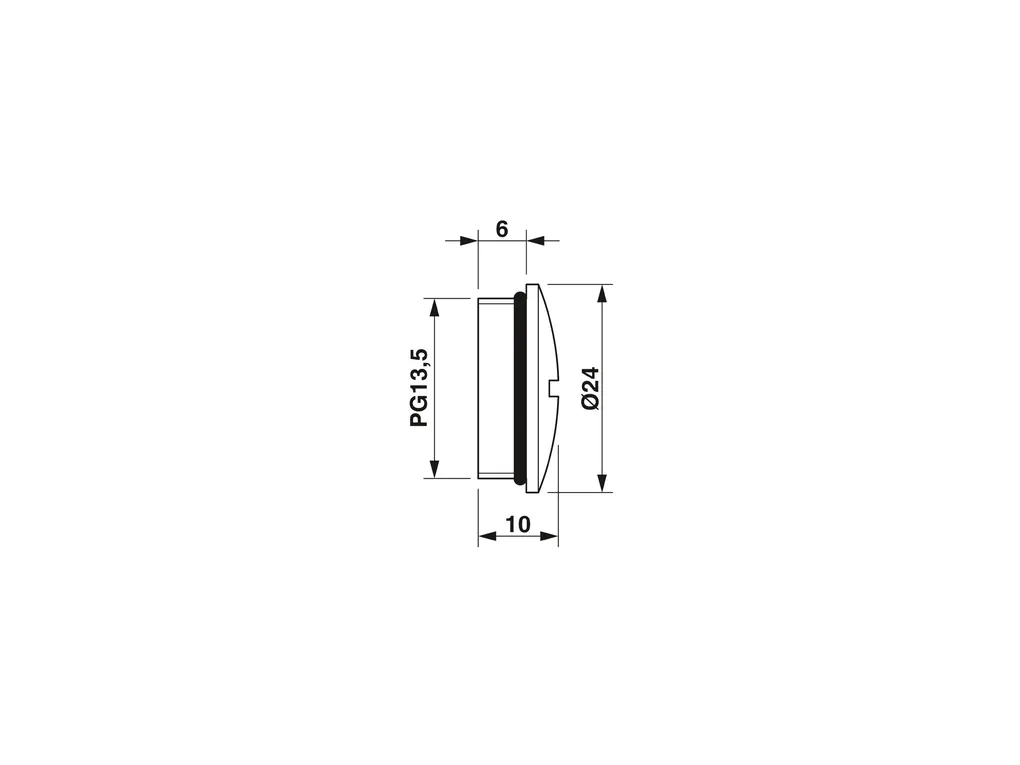

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d8394ec647ec8c48ac763789b371633c/-S204x204-FJPG
Length: 10 mm
Length of the connecting thread: 6 mm
Diameter: 24 mm
Hexagon angular dimension: Diameter (no corners)
Thread type connection side: Pg13.5
Material specificationsMaterial: Brass, nickel-plated
Seal material O-ring: NBR
Housing surface material: Nickel
Material for screw connection: Brass, nickel-plated
Cable/lineHalogen-free: no
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP68
Ambient temperature (operation): -20°C ... 80°C
Technical Specs
ECLASSECLASS-11.0: 23111190
ECLASS-12.0: 23111190
ECLASS-13.0: 23111190
ETIMETIM 9.0: EC000032
UNSPSCUNSPSC 21.0: 31261500
Description
Screw plug, material: Brass, nickel-plated, connecting thread: Pg13.5, color: silver
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_13064.pdf

Technical_drawing_18266.pdf
