HC-BS-PG21 - Screw plug
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Plug for cable screw gland Pg screw connection: Pg21 |

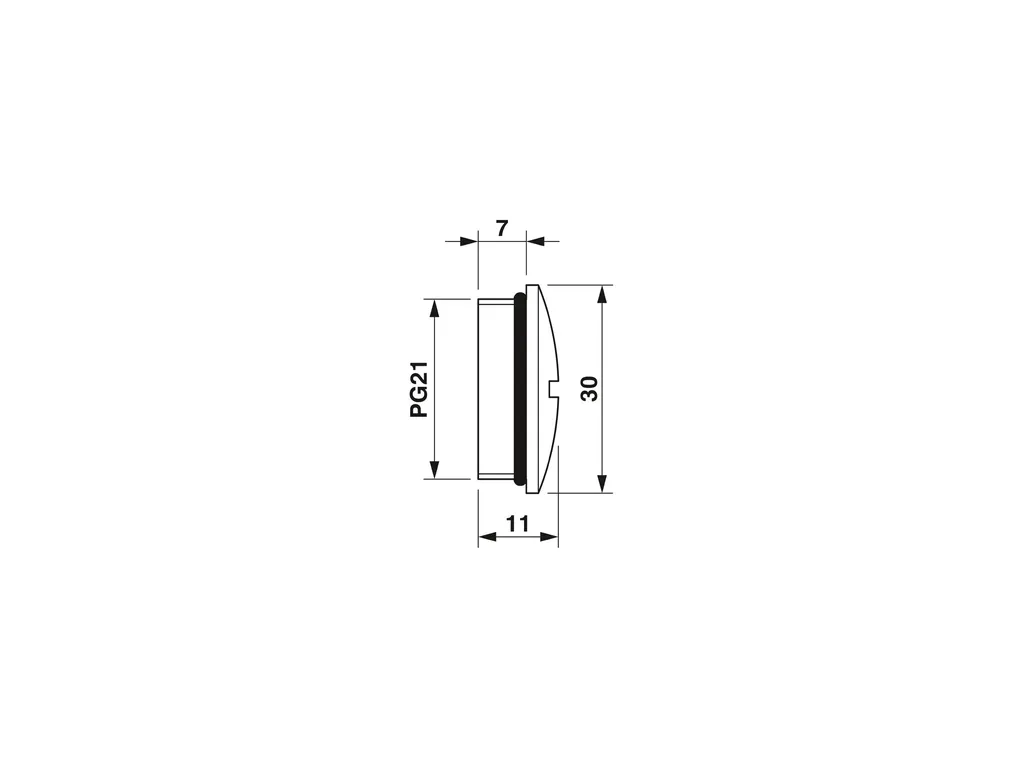

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a0bd4599ec740c4790e45503bbf19006/-S204x204-FJPG Length: 11 mm Length of the connecting thread: 7 mm Diameter: 30 mm Hexagon angular dimension: Diameter (no corners) Thread type connection side: Pg21 |
Material specifications | Material: Brass, nickel-plated Seal material O-ring: NBR Housing surface material: Nickel Material for screw connection: Brass, nickel-plated |
Cable/line | Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -20°C ... 80°C |
ECLASS | ECLASS-11.0: 23111190 ECLASS-12.0: 23111190 ECLASS-13.0: 23111190 |
ETIM | ETIM 9.0: EC000032 |
UNSPSC | UNSPSC 21.0: 31261500 |
