PHOENIX CONTACT 1680539
PHOENIX CONTACTAvailable

PROT-M12 - Screw plug

An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors
Product Code: 1680539
Partner cod.: 1680539
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: Also suitable for M12 push-pull.
Product propertiesProduct type: Plug for cable screw gland
Application: Sensor/actuator box
Thread type: M12
Connection dataTightening torque: 0.4 Nm

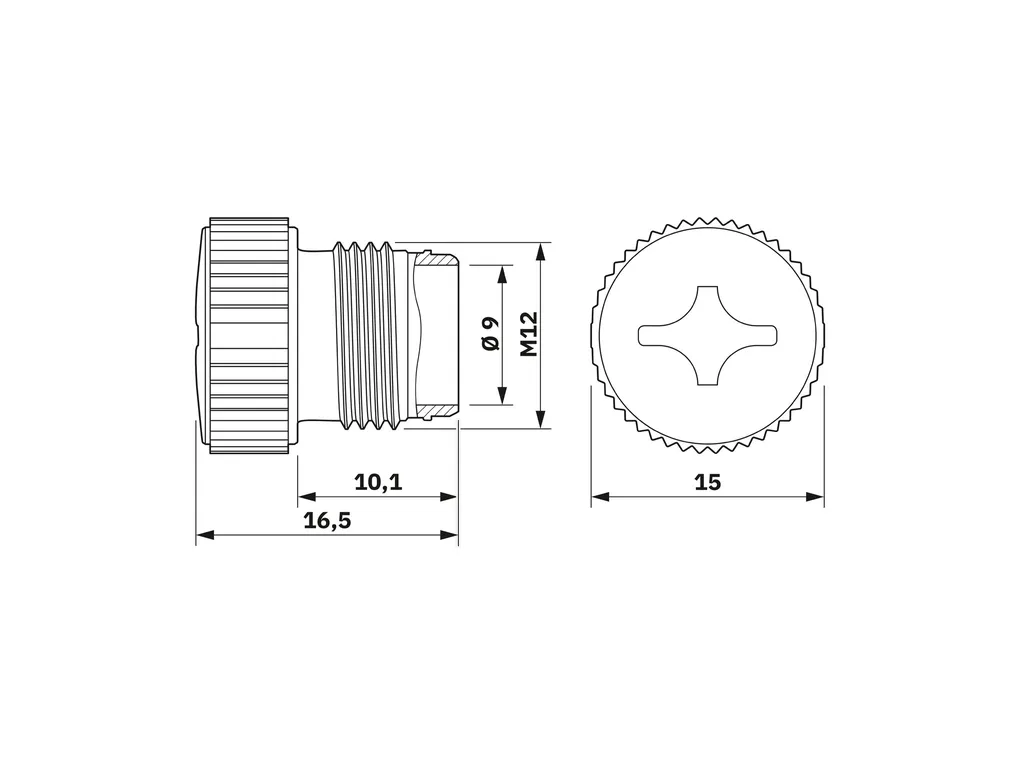

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/328686a70a30b74c8ca1fc7093fce1b0/-S204x204-FJPG
Diameter: 15 mm
Material specificationsFlammability rating according to UL 94: V0
Material for screw connection: PA 6.6
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65
IP67
Ambient temperature (operation): -40°C ... 85°C
Technical Specs
ECLASSECLASS-11.0: 23111190
ECLASS-12.0: 23111190
ECLASS-13.0: 23111190
ETIMETIM 9.0: EC000032
UNSPSCUNSPSC 21.0: 31261500
Description
An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_18298.pdf
