PHOENIX CONTACT 1688638
PHOENIX CONTACTNot available

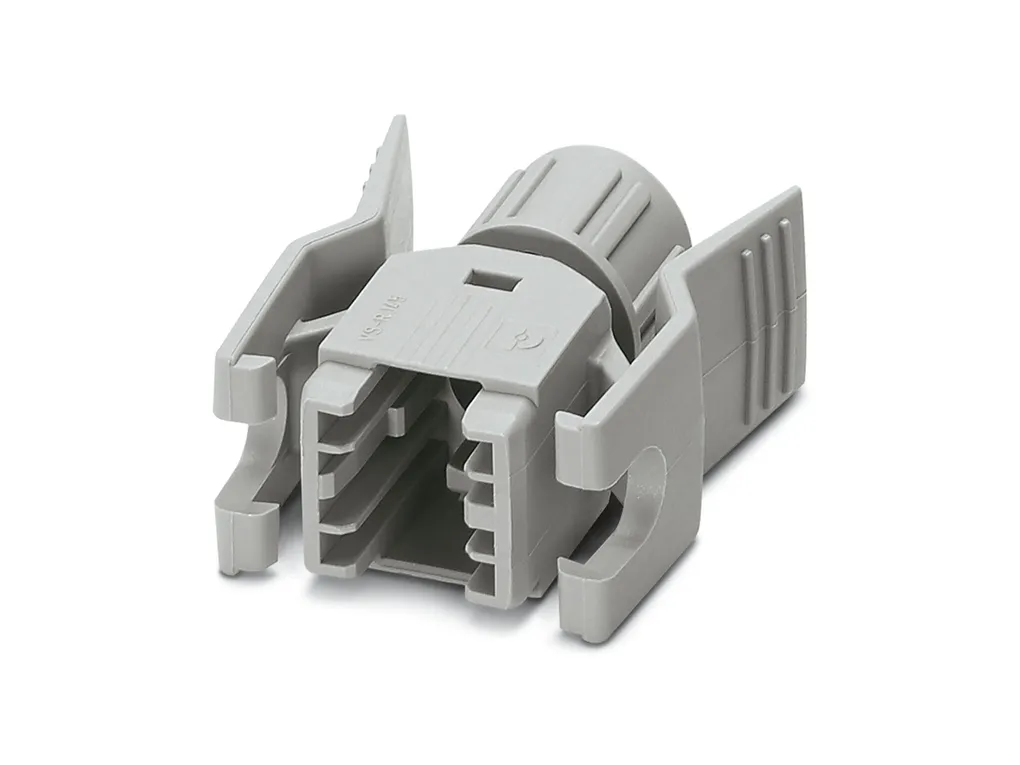

VS-08-T-RJ45/IP 20 - RJ45 sleeve housings

RJ45 sleeve housing IP20, for pin insert VS-08-ST-RJ45, with push-pull interlocking for panel mounting frames, for cable cross section 5.0 mm ... 6.5 mm
Product Code: 1688638
Partner cod.: 1688638
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesType: RJ45
Product type: Sleeve housings
No. of cable outlets: 1
Cable outlet: straight

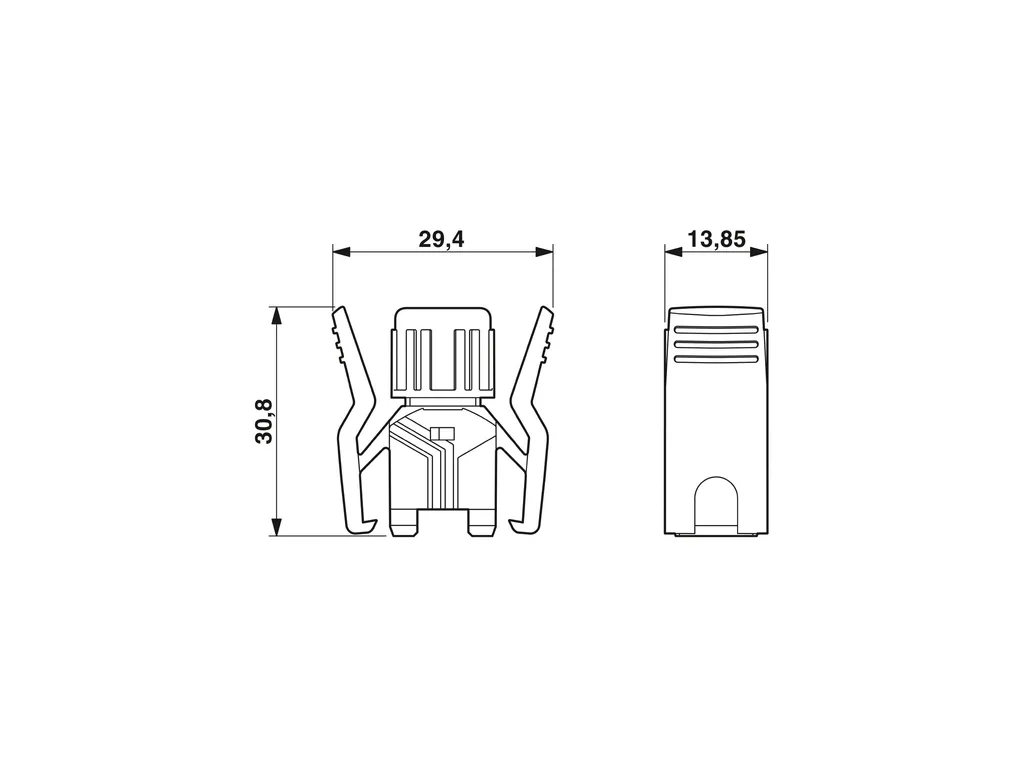

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/68d5ad94d59fbb4f8d4105352432e23e/-S204x204-FJPG
Width: 29.4 mm
Height: 13.8 mm
Length: 30.1 mm
Material specificationsColor: gray
Flammability rating according to UL 94: V0
Housing material: PA
Cable/lineExternal cable diameter (): 5 mm ... 6 mm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 750
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 80°C
Technical Specs
ECLASSECLASS-11.0: 27440202
ECLASS-12.0: 27440202
ECLASS-13.0: 27440224
ETIMETIM 9.0: EC000437
UNSPSCUNSPSC 21.0: 31261500
Description
RJ45 sleeve housing IP20, for pin insert VS-08-ST-RJ45, with push-pull interlocking for panel mounting frames, for cable cross section 5.0 mm ... 6.5 mm
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05511.pdf

Technical_drawing_18381.pdf
