Product properties | Type: B6 Product type: Protective cover Housing type: Protective cover Seal present: no |

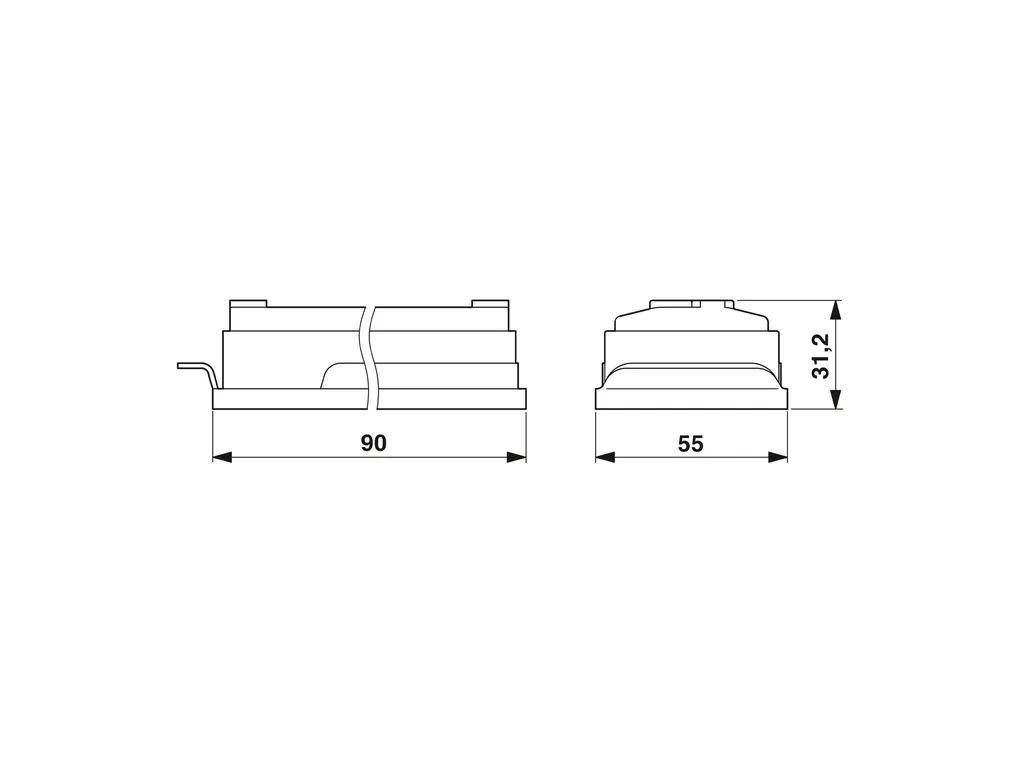

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/dd12647d2be5934d83ad4be8870a890f/-S204x204-FJPG Width: 55 mm Height: 31.2 mm Length: 90 mm Diameter: 3.5 mm |
Material specifications | Material: PA Flammability rating according to UL 94: V0 Material, protective cover: PA |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP50 Ambient temperature (operation): -20°C ... 100°C |
ECLASS | ECLASS-11.0: 27440208 ECLASS-12.0: 27440208 ECLASS-13.0: 27440208 |
ETIM | ETIM 9.0: EC002314 |
UNSPSC | UNSPSC 21.0: 39121400 |
