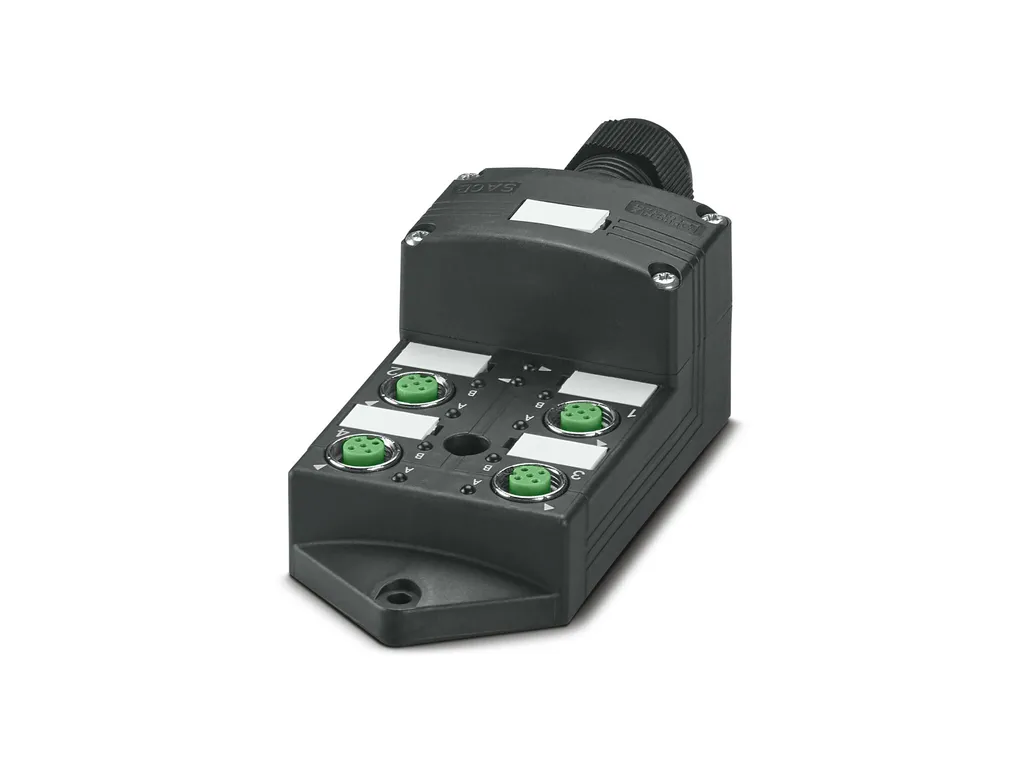

SACB-4/ 8-L-M23 - Distributor box

Distributor box, application: Standard, connection method: M12 socket Plastic, number of slots: 4, number of positions: 5, coding: A, slot assignment: Double, status display: Yes, pnp; master cable connection: M23 plug connection 90°, shielding: no

Product Code: 1692417

Partner cod.: 1692417

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Standard Number of slots: 4 Coding: A LED: yes
Material specifications	Material: PA Flammability rating according to UL 94: V0 Seal material O-ring: NBR Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: gold-plated

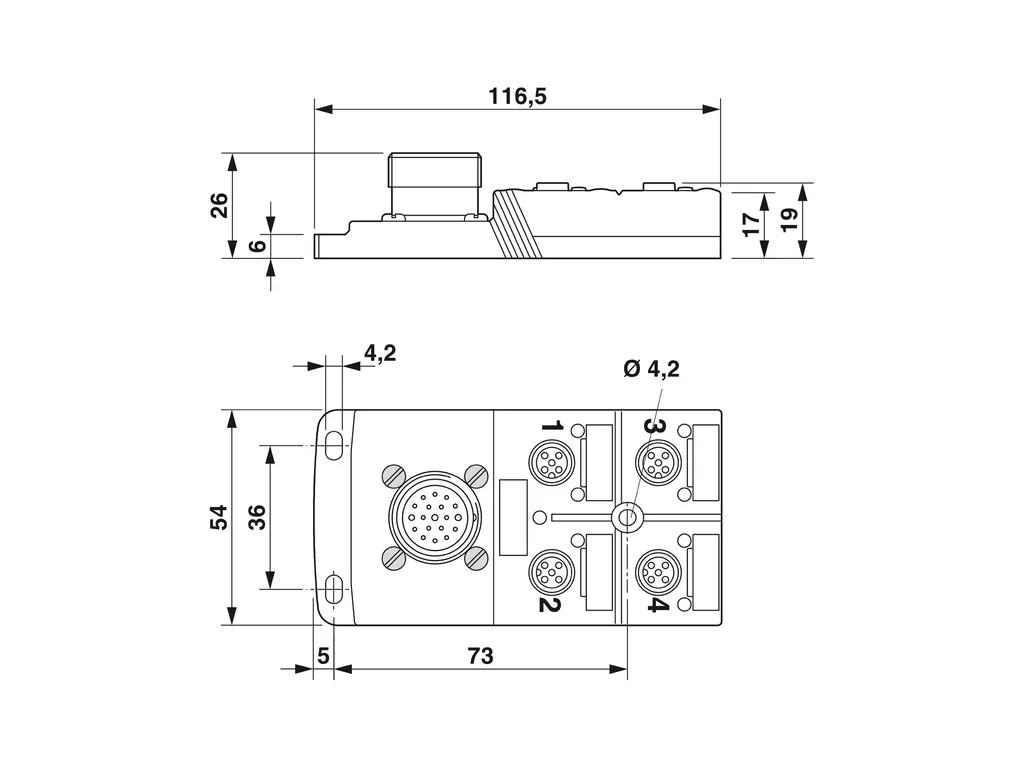

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2e9ebee78a308146af1b65d1f35d7fe0/-S204x204-FJPG Width: 54 mm Height: 26 mm Length: 117 mm
Connection data	Conductor connection Connection method: M23 plug connection Tightening torque slot sensor/actuator cable: 0.4 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=15 1 / 2 (B)=7 2 / 4 (A)=5 2 / 2 (B)=4 3 / 4 (A)=16 3 / 2 (B)=8 4 / 4 (A)=3 4 / 2 (B)=14 1-4 / 1 (+ 24 V)=19 1-4 / 3 (0 V)=6 1-4 / 5 (PE)=12
Signaling	Status display present: Yes
Electrical properties	Max. operating voltage U_max: 30 VDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 12 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Sensor/actuator connection system: M12 socket Connection method: M23 plug connection Tightening torque slot sensor/actuator cable: 0.4 Nm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 75°C
