SPT 5/ 2-H-7,5-ZB ESD - PCB terminal block

PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 6 mm², number of rows: 1, number of positions per row: 2, product range: SPT 5/..-H, pitch: 7.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 4.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Product Code: 1704873

Partner cod.: 1704873

PHOENIX CONTACT

Product properties	Product line: COMBICON Terminals L Product type: Printed circuit board terminal Product family: SPT 5/..-H Number of positions: 2 Pitch: 7.5 mm Number of rows: 1 Pin layout: Zigzag pinning W Solder pins per potential: 2
Electrical properties	Nominal current I_N: 41 A Nominal voltage U_N: 1000 V Degree of pollution: 3 Rated voltage (III/3): 800 V Rated surge voltage (III/3): 8 kV Rated voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV Rated voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV
Connection data	Connection technology Nominal cross section: 6 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 0.2 mm² ... 10 mm² Conductor cross section flexible: 0.2 mm² ... 6 mm² Conductor cross section AWG: 24 ... 8 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 6 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 6 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.25 mm² ... 1.5 mm² Stripping length: 15 mm
Mounting	Mounting type: Wave soldering Pin layout: Zigzag pinning W Connection method: Push-in spring connection
Material specifications	Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (4 - 8 µm Sn) Metal surface soldering area (top layer): Tin (4 - 8 µm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125 °C
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 7.5 mm Width [w]: 16.8 mm Height [h]: 24.2 mm Length [l]: 24.15 mm Installed height: 19.6 mm Solder pin length [P]: 4.6 mm Pin dimensions: 1.7 x 0.8 mm PCB design Pin spacing: 13.2 mm Hole diameter: 2.1 mm
Mechanical tests	Connection test Specification: IEC60998-2-2:2002-12 Result: Test passed Test for conductor damage and slackening Specification: IEC60998-2-2:2002-12 Result: Test passed Pull-out test Specification: IEC60998-2-2:2002-12 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 10 mm² / solid / > 90 N 6 mm² / flexible / > 80 N Flexion test Specification: IEC60998-2-2:2002-12 Result: Test passed Insulation holder for crimp connections Result: Test passed

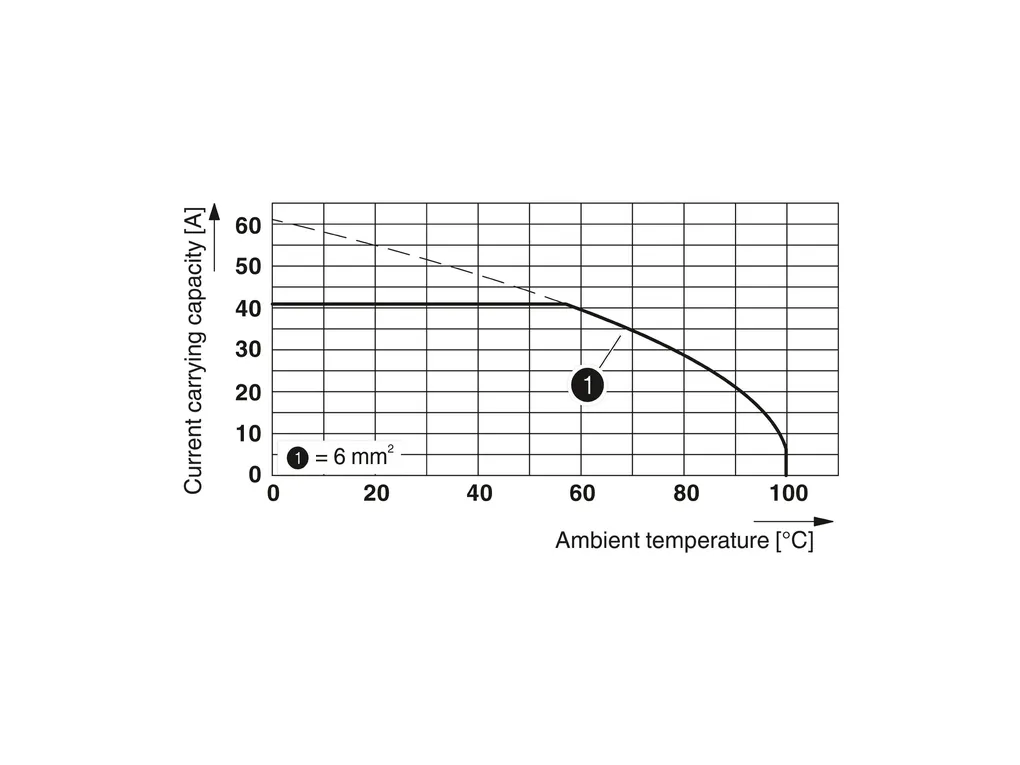

Electrical tests	Temperature-rise test Specification: IEC60998-2-1:2002-12 Requirement temperature-rise test: Increase in temperature Ã¢¤45K Insulation resistance Specification: IEC60998-1:2002-12 Insulation resistance, neighboring positions: >5MÃ© Air clearances and creepage distances \| Specification: IEC60664-1:1992-10 + A1:2000-02 + A2:2002-05 Insulating material group: I Comparative tracking index (IEC60112): CTI 600 Rated insulation voltage (III/3): 800 V Rated surge voltage (III/3): 8 kV minimum clearance value - non-homogenous field (III/3): 8 mm minimum creepage distance (III/3): 10 mm Rated insulation voltage (III/2): 1000 V Rated surge voltage (III/2): 8 kV minimum clearance value - non-homogenous field (III/2): 8 mm minimum creepage distance (III/2): 8 mm Rated insulation voltage (II/2): 1000 V Rated surge voltage (II/2): 6 kV minimum clearance value - non-homogenous field (II/2): 5.5 mm minimum creepage distance (II/2): 5.5 mm
Environmental and real-life conditions	Vibration test Specification: IEC60068-2-6:1995-03 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC60998-1:2002-12 Temperature: 850 °C Time of exposure: 5 s Ambient conditions Ambient temperature (operation): -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40 °C ... 70 °C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5 °C ... 100 °C
Packaging specifications	Type of packaging: packed in cardboard
