PV-FT-CCF-2,5-4-R1000 - Crimp contact

Crimp contact, Range of articles: Sunclix, min. conductor cross section: 2.5 mm², max. conductor cross section: 4 mm², rated current: 27 A, Connection method: Crimp, Contact connection type: Socket. Crimping recommendation: Crimp the conductor with the crimp contact in accordance with IEC 60352

Product Code: 1704930

Partner cod.: 1704930

PHOENIX CONTACT

Notes	General: Crimping recommendation: Crimp the conductor with the crimp contact in accordance with IEC 60352 When using the CRIMPFOX-P SR 6 manual crimping tool, item no. 1212755, please note the use of the standard locator (no marking). Safety note Safety note: Ã¢¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢¢ The products are suitable for applications in plant, controller, and electrical device engineering. Ã¢¢ Assembled products may not be manipulated or improperly opened. Ã¢¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢¢ For operating voltages > 50V AC, conductive connector housings must be grounded Ã¢¢ Ensure that the protective or functional ground has been properly connected. Ã¢¢ Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product Ã¢¢ The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. Ã¢¢ Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products Ã¢¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). Ã¢¢ Operate the connector only when it is fully plugged in and interlocked. Ã¢¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢¢ Observe the minimum bending radius of the cable. Lay the cable without twisting it.
Mounting	Connection method: Crimp
Product properties	Product type: Crimp contact Product family: Sunclix Insulation characteristics Degree of pollution: 2
Connection data	Conductor connection Cross section range, metric: 2.5 mm² ... 4 mm² Connection method: Crimp Contact connection type: Socket Stripping length of the individual wire: 8 mm -1mm Conductor cross section flexible: 2.5 mm² ... 4 mm²
Material specifications	Flammability rating according to UL 94: V0 Insulating material group: I / CTI 600 Contact surface: Silver Ag Contact material: Cu Contact surface material: Ag

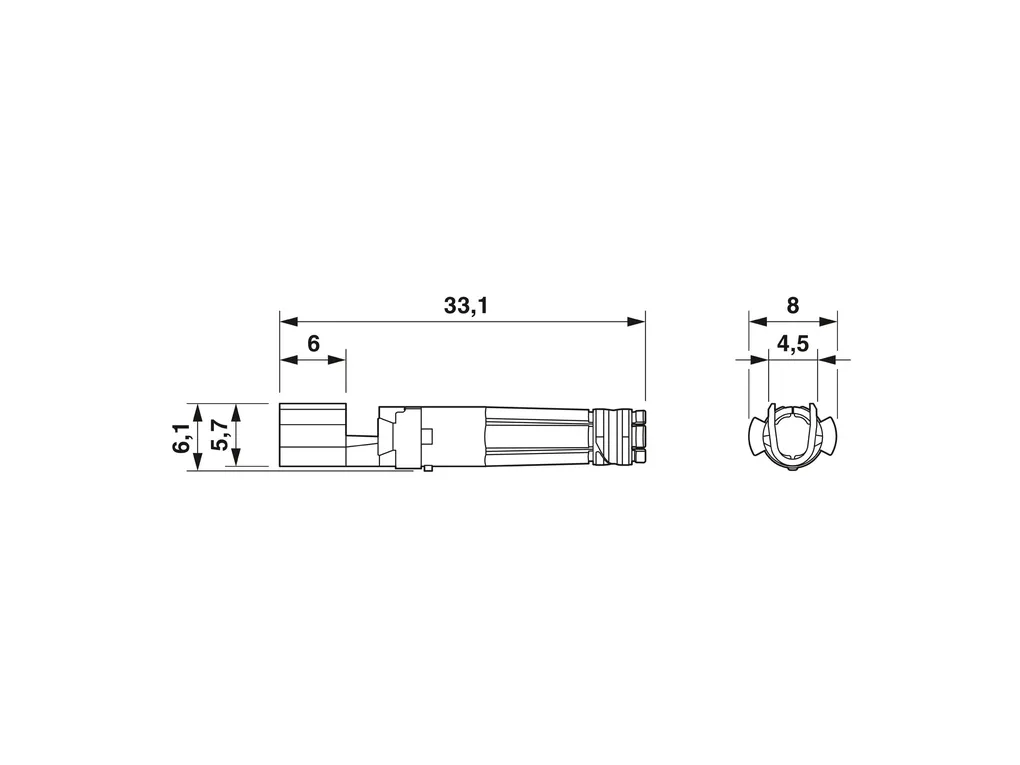

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2616c29cbd6c1647a2c2114727ec01e9/-S204x204-FJPG Width: 5.4 mm Height: 5.4 mm Length: 33.1 mm
Electrical properties	Maximum load current: 35 A (for 4 mm²) Rated voltage (II/2): 1000 V Rated voltage (III/2): 1500 V Rated surge voltage (II/2): 12 kV Rated surge voltage (III/2): 12 kV Rated surge voltage (III/3): 16 kV Rated current (2.5 mm²): 27 A Rated current (4.0 mm²): 35 A Contact resistance: 0.45 mÃ©
Mechanical properties	Mechanical data Insertion force: 45 N ±10N
Environmental and real-life conditions	Ambient conditions Degree of protection (when plugged in): IP66 /IP68 (2 m / 24 h) Degree of protection (not plugged in): IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (assembly): -25°C ... 50°C
