| Notes | General: For housing HC-B6 |
| Product properties | Type: B6 Product type: Adapter plate Number of positions: 9 Seal present: no |

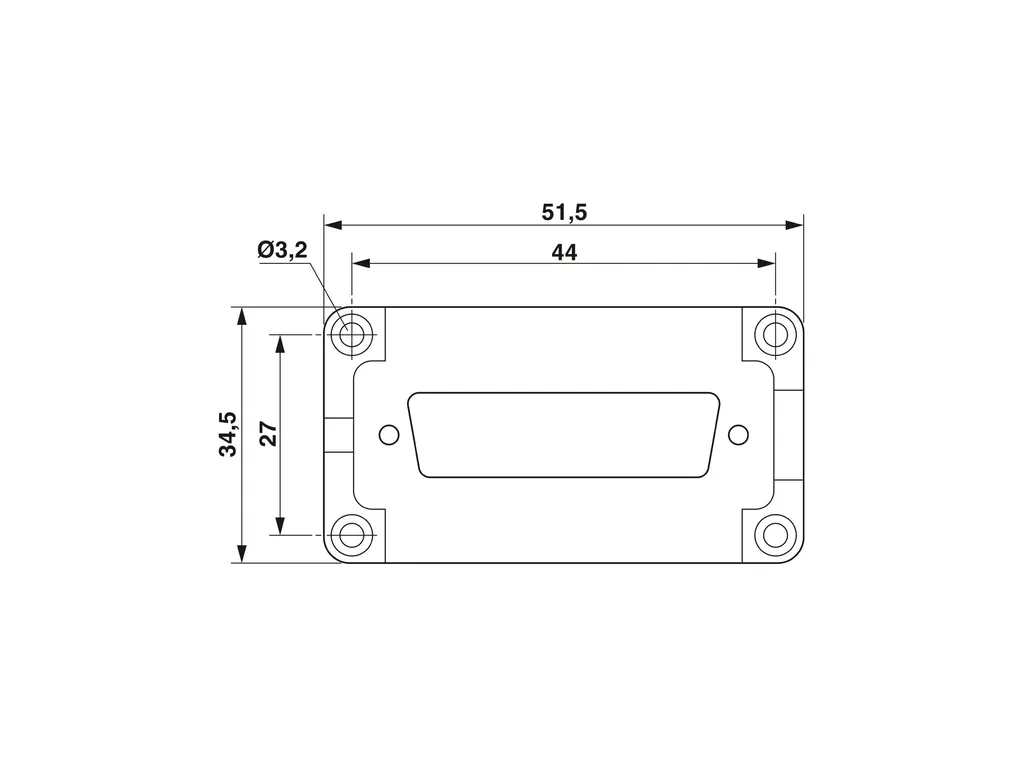

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61e940d8ef56b64f9b856737a0002182/-S204x204-FJPG Width: 34.5 mm Height: 10 mm Length: 51.5 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: HB |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 100°C |
| Mounting | Assembly instructions: Mounting position of the adapter plate in the sleeve housing: T is visible after mounting in the housing. Mounting position of the adapter plate in the panel mounting base/socket housing/coupling housing: A is visible after mounting in the housing. Mounting position of the D-SUB (after mounting in the housing): in front of the mounting panel (front mounting) |
