PHOENIX CONTACT 1777918
PHOENIX CONTACTNot available

FRONT-MSTB 2,5/14-STF-5,08 - PCB connector

PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 14, number of rows: 1, number of positions: 14, number of connections: 14, product range: FRONT-MSTB 2,5/..-STF, pitch: 5.08 mm, connection method: Front screw connection, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking mechanism, mounting: Screw flange, type of packaging: packed in cardboard
Product Code: 1777918
Partner cod.: 1777918
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesType: Standard
Product line: COMBICON Connectors M
Product type: PCB connector
Product family: FRONT-MSTB 2,5/..-STF
Number of positions: 14
Pitch: 5.08 mm
Number of connections: 14
Number of rows: 1
Mounting flange: Screw flange
Number of potentials: 14
Electrical propertiesNominal current IN: 12 A
Nominal voltage UN: 320 V
Degree of pollution: 3
Contact resistance: 1.5 mΩ
Rated voltage (III/3): 250 V
Rated surge voltage (III/3): 4 kV
Rated voltage (III/2): 320 V
Rated surge voltage (III/2): 4 kV
Rated voltage (II/2): 630 V
Rated surge voltage (II/2): 4 kV
Connection dataConnection technology
Type: Standard
Connector system: COMBICON MSTB 2,5
Nominal cross section: 2.5 mm²
Contact connection type: Socket
Interlock
Locking type: Screw locking mechanism
Mounting flange: Screw flange
Tightening torque: 0.3 Nm
Conductor connection
Connection method: Front screw connection
Conductor/PCB connection direction: 0 °
Conductor cross section rigid: 0.34 mm² ... 2.5 mm²
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section AWG: 24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid: 0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm²
Cylindrical gauge a x b / diameter: 2.8mmx2.0mm / 2.4mm
Stripping length: 10 mm
Tightening torque: 0.5 Nm ... 0.6 Nm
Specifications for ferrules without insulating collar
recommended crimping tool: 1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN46228‑1: Cross section:0.5 mm²; Length: 8 mm ... 10 mm
Cross section:0.75 mm²; Length: 8 mm ... 10 mm
Cross section:1 mm²; Length: 8 mm ... 10 mm
Cross section:1.5 mm²; Length: 8 mm ... 10 mm
Cross section:2.5 mm²; Length: 10 mm
Specifications for ferrules with insulating collar
recommended crimping tool: 1212034 CRIMPFOX 6
ferrules with insulating collar, according to DIN46228‑4: Cross section:0.5 mm²; Length: 8 mm ... 10 mm
Cross section:0.75 mm²; Length: 8 mm ... 10 mm
Cross section:1 mm²; Length: 8 mm ... 10 mm
Cross section:1.5 mm²; Length: 8 mm ... 10 mm
Cross section:2.5 mm²; Length: 10 mm
Material specificationsMaterial data - contact
Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material: Cu alloy
Surface characteristics: hot-dip tin-plated
Metal surface terminal point (top layer): Tin (4 - 8 µm Sn)
Metal surface contact area (top layer): Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing): green (6021)
Insulating material: PA
Insulating material group: I
CTI according to IEC 60112: 600
Flammability rating according to UL 94: V0
Glow wire flammability index GWFI according to EN60695-2-12: 850
Glow wire ignition temperature GWIT according to EN60695-2-13: 775
Temperature for the ball pressure test according to EN60695-10-2: 125 °C

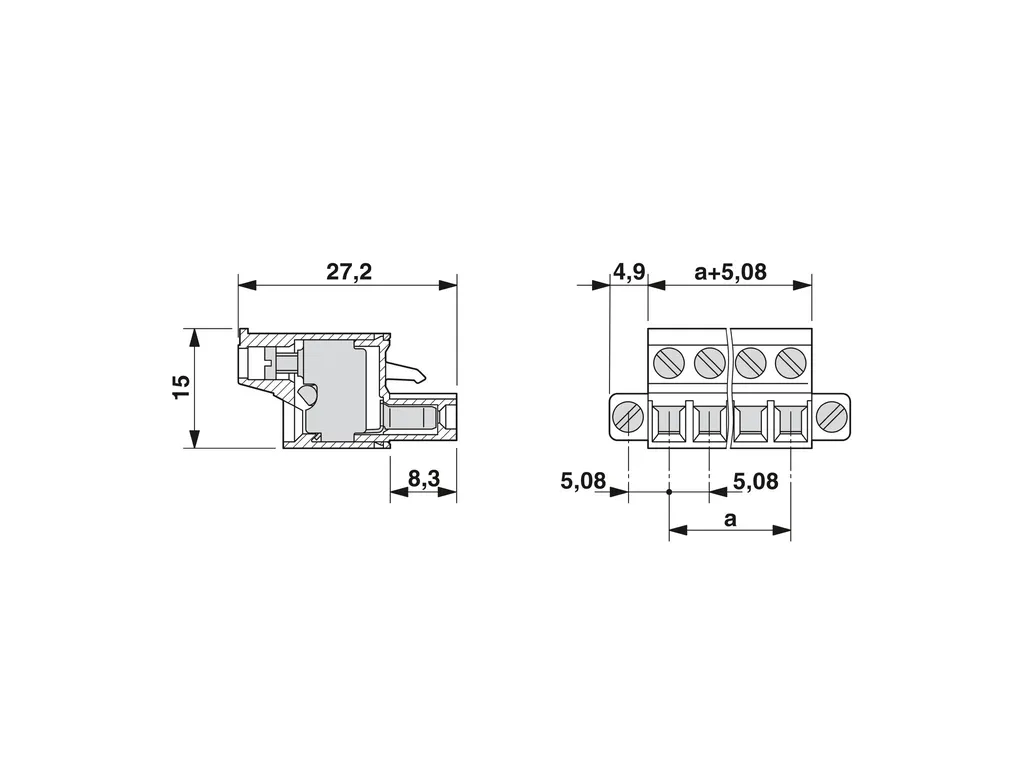

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e1234e2392bde14688da8fe58a63c0c9/-S204x204-FJPG
Pitch: 5.08 mm
Width [w]: 80.92 mm
Height [h]: 15 mm
Length [l]: 27.2 mm
MountingDrive form screw head: Slotted(L)
Connection method: Front screw connection
Flange
Tightening torque: 0.3 Nm
NotesNotes on operation: In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Mechanical testsTest for conductor damage and slackening
Specification: IEC60999-1:1999-11
Result: Test passed
Pull-out test
Specification: IEC60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value: 0.34 mm² / solid / > 15 N
0.2 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
2.5 mm² / flexible / > 50 N
Insertion and withdrawal forces
Result: Test passed
No. of cycles: 25
Insertion strength per pos. approx.: 12 N
Withdraw strength per pos. approx.: 9 N
Torque test
Specification: IEC60999-1:1999-11
Resistance of inscriptions
Specification: IEC60068-2-70:1995-12
Result: Test passed
Polarization and coding
Specification: IEC60512-13-5:2006-02
Result: Test passed
Visual inspection
Specification: IEC60512-1-1:2002-02
Result: Test passed
Dimension check
Specification: IEC60512-1-2:2002-02
Result: Test passed
Environmental and real-life conditionsVibration test
Specification: IEC60068-2-6:2007-12
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1octave/min
5g (60.1Hz...150Hz)
Amplitude: 0.35mm (10Hz...60.1Hz)
Test duration per axis: 2.5 h
Durability test
Specification: IEC60512-9-1:2010-03
Impulse withstand voltage at sea level: 4.8 kV
Contact resistance R1: 1.5 mΩ
Contact resistance R2: 1.6 mΩ
Contact resistance R2 2nd level: 1.9 mΩ
Insertion/withdrawal cycles: 25
Insulation resistance, neighboring positions: >5MΩ
Climatic test
Specification: ISO6988:1985-02
Corrosive stress: 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress: 100°C/168h
Power-frequency withstand voltage: 2.21 kV
Ambient conditions
Ambient temperature (operation): -40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport): -40 °C ... 70 °C
Relative humidity (storage/transport): 30 % ... 70 %
Ambient temperature (assembly): -5 °C ... 100 °C
Electrical testsThermal test | Test group C
Specification: IEC60512-5-1:2002-02
Tested number of positions: 17
Insulation resistance
Specification: IEC60512-3-1:2002-02
Insulation resistance, neighboring positions: >5MΩ
Air clearances and creepage distances |
Specification: IEC60664-1:2007-04
Insulating material group: I
Comparative tracking index (IEC60112): CTI 600
Rated insulation voltage (III/3): 250 V
Rated surge voltage (III/3): 4 kV
minimum clearance value - non-homogenous field (III/3): 3 mm
minimum creepage distance (III/3): 3.2 mm
Rated insulation voltage (III/2): 320 V
Rated surge voltage (III/2): 4 kV
minimum clearance value - non-homogenous field (III/2): 3 mm
minimum creepage distance (III/2): 3 mm
Rated insulation voltage (II/2): 630 V
Rated surge voltage (II/2): 4 kV
minimum clearance value - non-homogenous field (II/2): 3 mm
minimum creepage distance (II/2): 3.2 mm
Packaging specificationsType of packaging: packed in cardboard
Technical Specs
ECLASSECLASS-11.0: 27460202
ECLASS-12.0: 27460202
ECLASS-13.0: 27460202
ETIMETIM 9.0: EC002638
UNSPSCUNSPSC 21.0: 39121400
