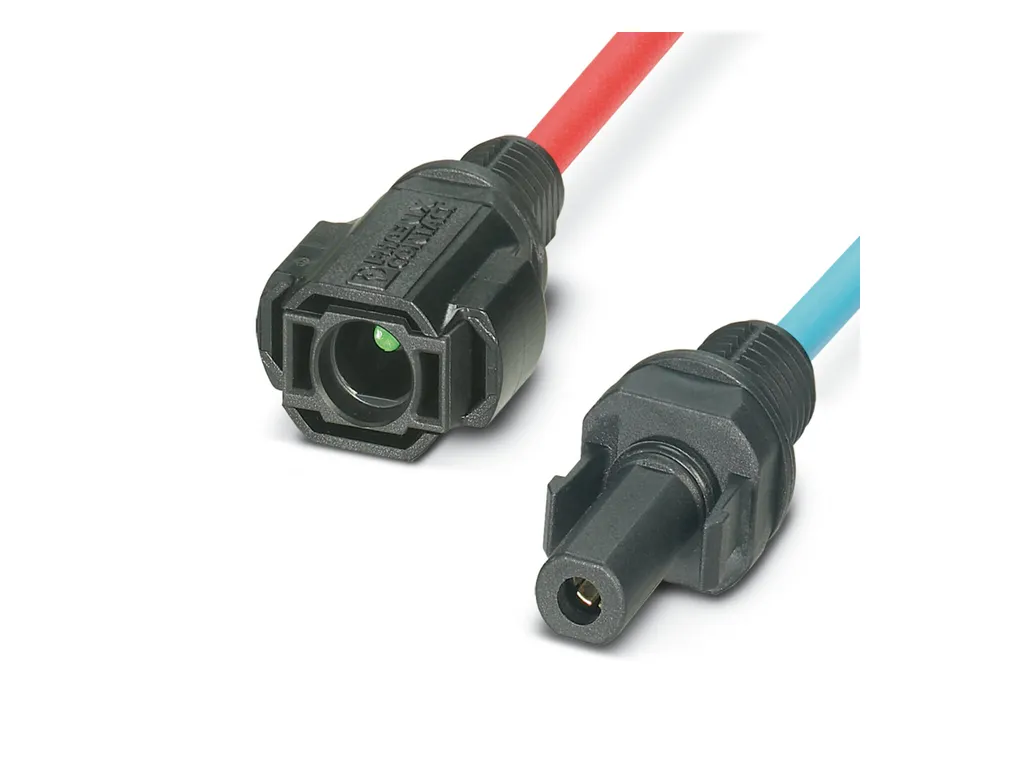

PV-FT-CM-C-2,5-130-RD - Device connector front mounting
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | Safety note Safety note: ⢠WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. ⢠WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. ⢠The products are suitable for applications in plant, controller, and electrical device engineering. ⢠Assembled products may not be manipulated or improperly opened. ⢠Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). ⢠When using the product in direct connection with third-party manufacturers, the user is responsible. ⢠For operating voltages > 50V AC, conductive connector housings must be grounded ⢠Ensure that the protective or functional ground has been properly connected. ⢠Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product ⢠The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. ⢠Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products ⢠The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). ⢠Operate the connector only when it is fully plugged in and interlocked. ⢠Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. ⢠Observe the minimum bending radius of the cable. Lay the cable without twisting it. |
Product properties | Product type: Panel feed-through Product family: Sunclix Number of positions: 1 Insulation characteristics Protection class: II Degree of pollution: 2 |
Connection data | Conductor connection Tightening torque: 1.8 Nm ±0.1Nm |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/756e072859a14648b3fdb1a2cea1f586/-S204x204-FJPG Width: 26.3 mm Height: 26.3 mm Length: 41.5 mm |
Electrical properties | Rated voltage (III/2): 1000 V Nominal voltage ATD: 1000 V DC in accordance with IEC 62852:2014/AMD1:2020 Rated surge voltage (III/2): 12 kV Rated current (2.5 mm²): 27 A (in accordance with IEC 62852:2014/AMD1:2020) Contact resistance: 0.45 mé ⤠0.45 mé (when plugged in (without cable)) |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: 100 Insertion force: 45 N ±10N Withdrawal force: 250 N ±50N (when locked) |
Material specifications | Color: black Color of the housing part: black Material: PPE Flammability rating according to UL 94: V0 Insulating material group: III Seal material: EPDM Insulating material: mPPE Contact surface: Silver Ag Cable seal material: Elastosil LR 3065/50 Contact material: Cu Contact surface material: Ag Contact carrier material: PPE Housing material: PPE Outer sheath, material: PE-X |
Cable/line | Cable length: 130 mm Cable type: S01 Hose line Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: 50x0.25 Cable structure: 50 x 0.25mm à litz wires, tin-plated, 1x bunched External cable diameter: 4.25 mm ±0.15mm Outer sheath, material: PE-X External sheath, color: red, similar to RAL3000 Single wire, material: Cu Single wire, cross section: 2.5 mm² Nominal voltage, cable: 1.8 kV DC (max U (conductor / conductor, ungrounded system)) Test voltage, cable: ⥠8 kV AC (Spark test online (standard designation)) Smallest bending radius, fixed installation: 21.25 mm (5x Ã) Smallest bending radius, movable installation: 40.25 mm (10x Ã) Cable pull-out force: > 80 N Halogen-free: yes Resistance to oil: no Flame resistance: no |
Mounting | Connection method: Crimp |
Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP66 /IP68 (2 m / 24 h) Degree of protection (not plugged in): IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (assembly): -25°C ... 50°C Resistance to oil: no |
Standards and regulations | Flame resistance: no Resistance to oil: no Standards/specifications: IEC 62852:2014/AMD1:2020 |
ECLASS | ECLASS-11.0: 27440107 ECLASS-12.0: 27440107 ECLASS-13.0: 27440107 |
ETIM | ETIM 9.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
