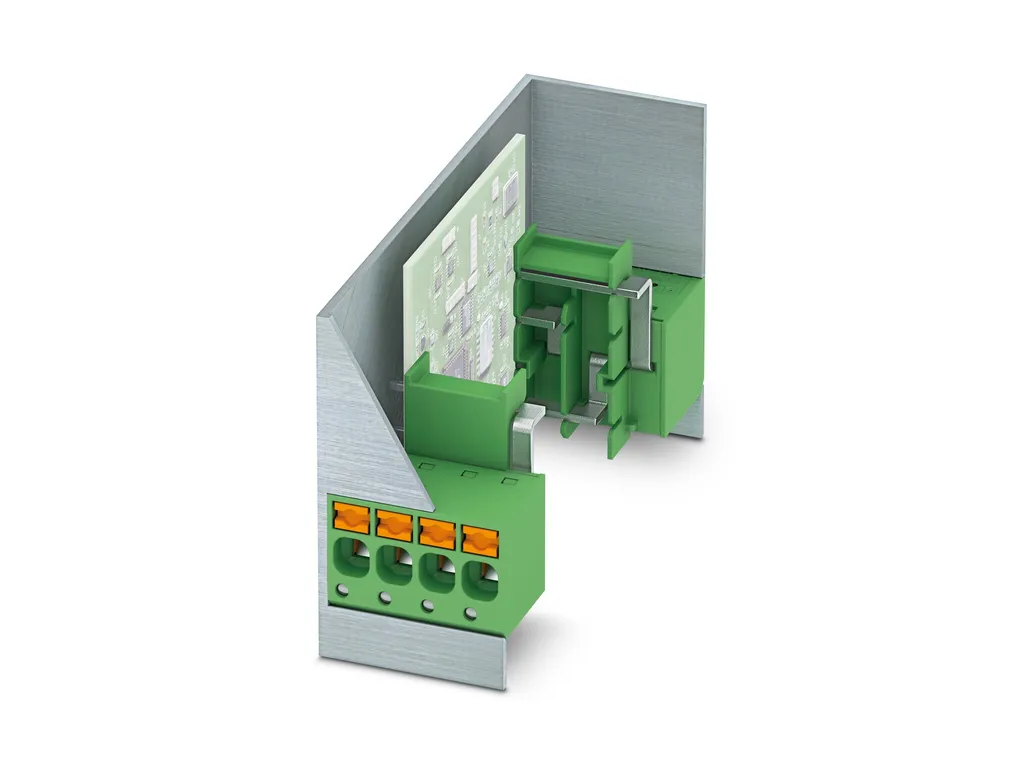

FKDSO 2,5/ 2-L1 - PCB terminal block
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product line: COMBICON Terminals M Product type: Printed circuit board terminal Product family: FKDSO 2,5/ ..-L1 Number of positions: 2 Pitch: 5 mm Number of connections: 2 Number of rows: 1 Number of potentials: 2 Pin layout: Linear pinning Solder pins per potential: 1 |
Electrical properties | Nominal current IN: 20 A Nominal voltage UN: 320 V Degree of pollution: 3 Rated voltage (III/3): 200 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 320 V Rated surge voltage (II/2): 4 kV |
Connection data | Connection technology Nominal cross section: 2.5 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Stripping length: 10 mm |
Mounting | Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Push-in spring connection Processing notes Process: Wave soldering |
Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (5 - 7 µm Sn) Metal surface soldering area (top layer): Tin (5 - 7 µm Sn) Material data - housing Color (Housing): green (6021) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Material data – actuating element Color (Actuating element): orange (2003) Insulating material: PBT GF Insulating material group: IIIa CTI according to IEC 60112: 275 Flammability rating according to UL 94: V0 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 5 mm Width [w]: 10.6 mm Height [h]: 19.4 mm Length [l]: 18.8 mm Installed height: 15.9 mm Solder pin length [P]: 3.5 mm Pin dimensions: 0.8 x 1 mm PCB design Pin spacing: 5 mm Hole diameter: 1.4 mm |
Mechanical tests | Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 2.5 mm² / solid / > 50 N 0.2 mm² / flexible / > 10 N 4 mm² / flexible / > 60 N |
Electrical tests | Temperature-rise test Specification: IEC 60947-7-4:2013-08 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2013-08 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >5MΩ Air clearances and creepage distances | Specification: IEC 60664-1:2007-04 Insulating material group: I Comparative tracking index (IEC 60112): CTI 275 Rated insulation voltage (III/3): 200 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm Rated insulation voltage (III/2): 320 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 3.2 mm Rated insulation voltage (II/2): 320 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm |
Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2000-10 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2013-08 Ambient conditions Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -25°C ... 105°C |
Packaging specifications | Type of packaging: packed in cardboard |
ECLASS | ECLASS-11.0: 27460101 ECLASS-12.0: 27460101 ECLASS-13.0: 27460101 |
ETIM | ETIM 9.0: EC002643 |
UNSPSC | UNSPSC 21.0: 39121400 |
