| Notes | General: for HC-D40, HC-D64 contact carriers |

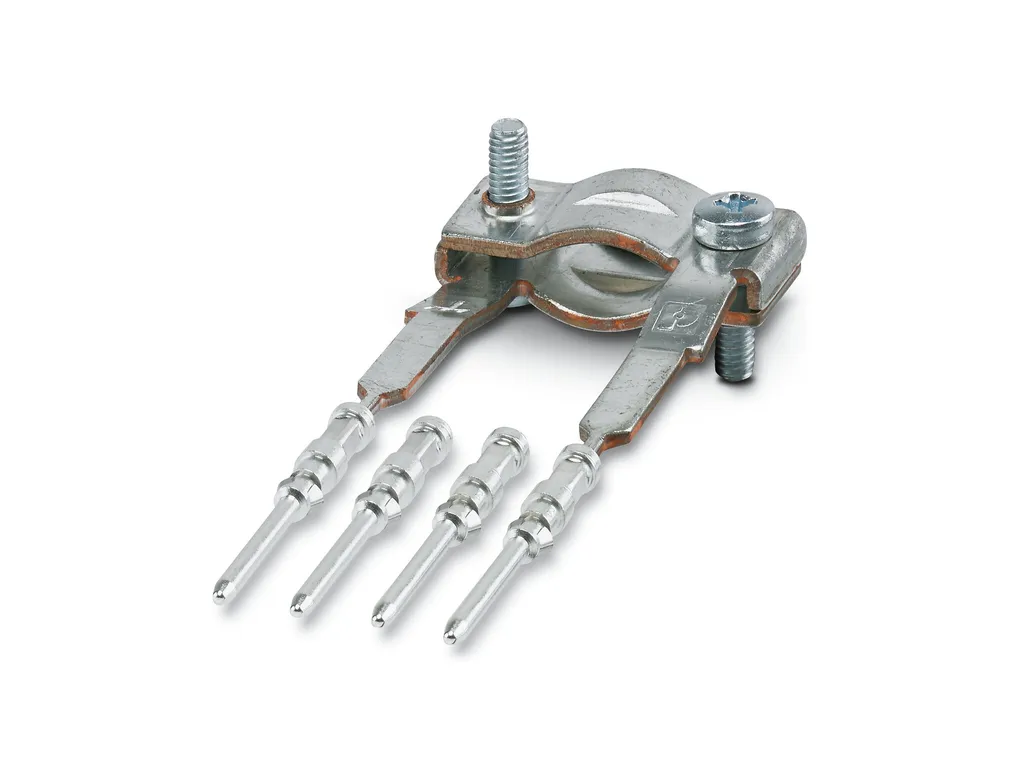

| Product properties | Product type: Shield connection Contact material type: turned |
| Electrical properties | Rated voltage (III/3): 60 V |
| Connection data | Connection technology Connection method: Crimp connection |

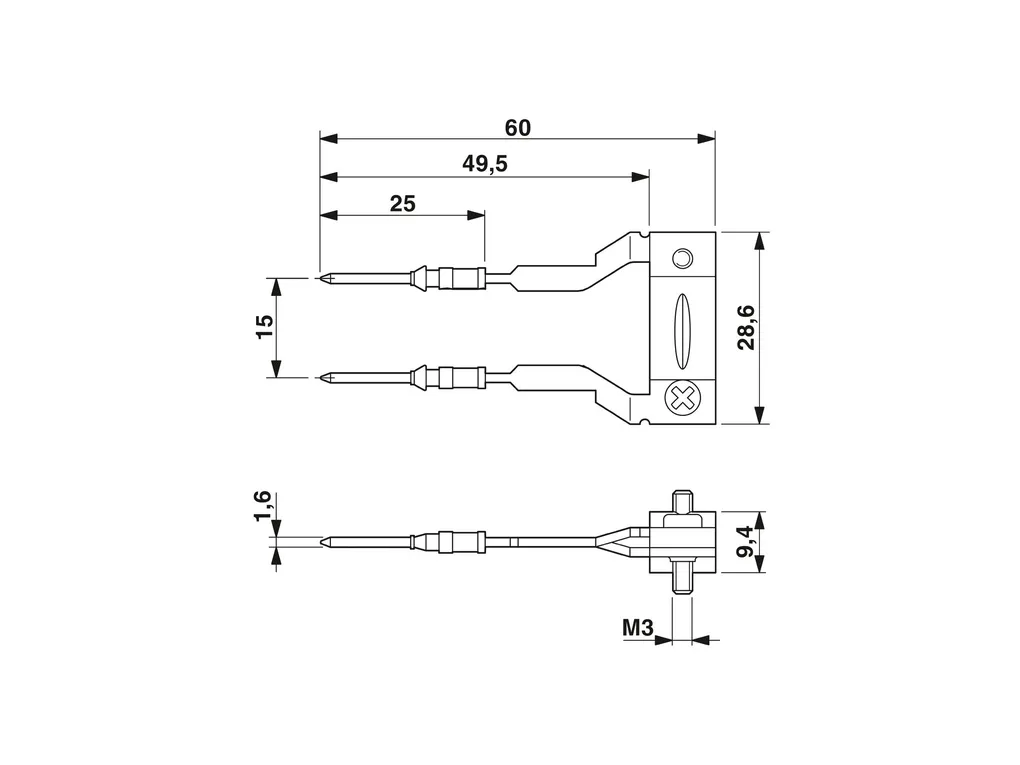

| Dimensions | Mechanical characteristics Contact diameter: 1.6 mm |
| Material specifications | Contact material: Copper alloy Contact surface material: hard-silver plated |
| Cable/line | External cable diameter (): 6 mm ... 9 mm Stripping length of the individual wire: 6 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 60°C |
| Mounting | Assembly instructions: for a bus line, see assembly instruction 9655870, with two CK1,6-ED-0,37ST AG crimp contacts Connection method: Crimp connection |
| ECLASS | ECLASS-11.0: 27440192 ECLASS-12.0: 27440192 ECLASS-13.0: 27440192 |
| ETIM | ETIM 9.0: EC002943 |
| UNSPSC | UNSPSC 21.0: 39121400 |
