PHOENIX CONTACT 1961850

Not available

MCV 1,5/ 7-GR-3,5 THT - PCB header

PCB headers, color: black, contact surface: Tin, number of positions: 7, product range: MCV 1,5/..-GR-THT, pitch: 3.5 mm, pin layout: Linear pinning, solder pin [P]: 3.4 mm, type of packaging: packed in cardboard, Two-in-one â Pin strips must always be made up of a left (L) and a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the THR pin strip. User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads".

Product Code: 1961850

Partner cod.: 1961850

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Type: Component suitable for through hole reflow Product type: PCB headers Product family: MCV 1,5/..-GR-THT Number of positions: 7 Pitch: 3.5 mm Mounting flange: without Pin layout: Linear pinning
Electrical properties	Maximum load current: 8 A (per position) Rated voltage (II/2): 250 V Rated voltage (III/2): 160 V Rated surge voltage (II/2): 2.5 kV Rated surge voltage (III/2): 2.5 kV Rated surge voltage (III/3): 2.5 kV
Mounting	Mounting type: THR soldering Pin layout: Linear pinning
Material specifications	Color: black Flammability rating according to UL 94: V0 Insulating material group: IIIa Insulating material: PA Contact surface: Tin Sn Contact surface material: Sn

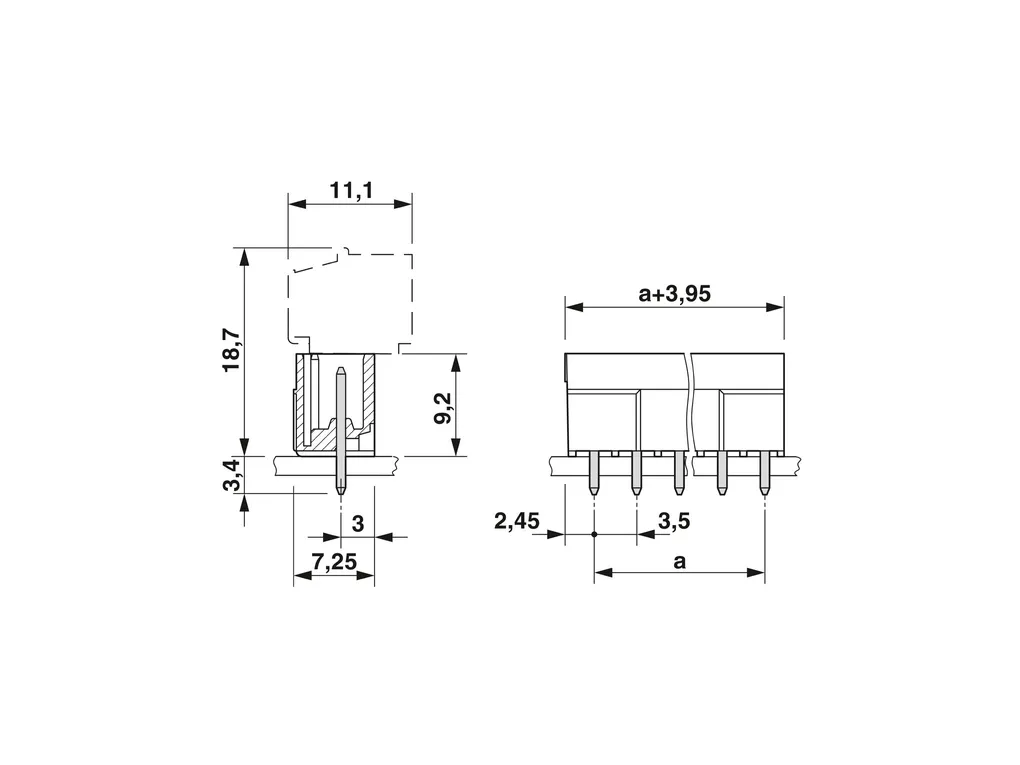

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e3e0eb1d43dccf409961ac14fd0926c7/-S204x204-FJPG Height: 9.2 mm Installed height: 10 mm Length of the solder pin: 3.4 mm Length: 7.25 mm Hole diameter: 1.3 mm Pitch: 3.5 mm PCB design Pin spacing: 3.50 mm
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Dry bag

Technical Specs

ECLASS	ECLASS-11.0: 27460201 ECLASS-12.0: 27460201 ECLASS-13.0: 27460201
ETIM	ETIM 9.0: EC002637
UNSPSC	UNSPSC 21.0: 39121400

Download
