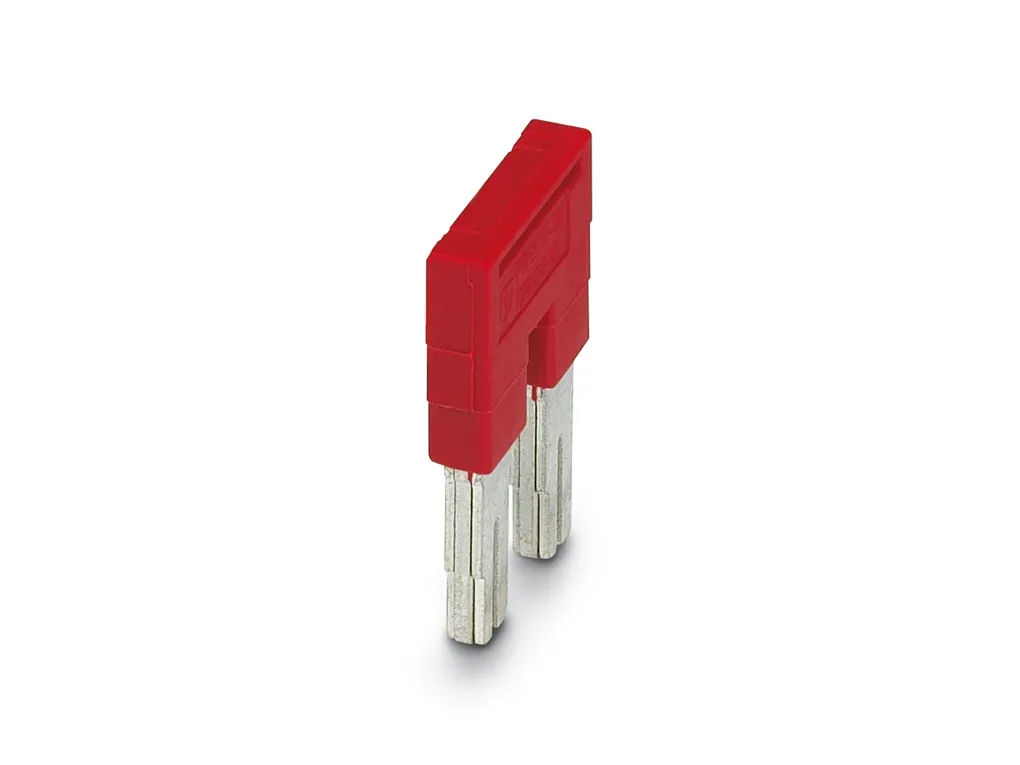

| Product properties | Product line: COMBICON Terminals Special Product type: Bridge Product family: FBSK Number of positions: 3 Pitch: 10 mm Number of connections: 3 Number of rows: 1 Number of potentials: 3 |
| Electrical properties | Degree of pollution: 3 |
| Dimensions | Pitch: 10 mm |
| Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Material data - housing Color (Housing): red (3001) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Glow wire flammability index GWFI according to EN60695-2-12: 850 Glow wire ignition temperature GWIT according to EN60695-2-13: 775 Temperature for the ball pressure test according to EN60695-10-2: 125°C |
| Connector | Connection 1 Insulating material: PA CTI according to IEC 60112: 600 |
| ECLASS | ECLASS-11.0: 27460406 ECLASS-12.0: 27460406 ECLASS-13.0: 27460406 |
| ETIM | ETIM 9.0: EC002943 |
| UNSPSC | UNSPSC 21.0: 39121400 |
