2200058 PHOENIX CONTACT - Technology Bsa

ME MAX 22,5 F-GR G 3-3 BK - Housing half shell

DIN rail housing, Housing half shell (right), flat design, without vents, width: 16.3 mm, height: 85 mm, depth: 90.35 mm, color: black (9005)

Product Code: 2200058

Partner cod.: 2200058

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold)
Product properties	Product type: Housing half shells Product family: ME MAX..F G 3-3 Number of positions: 18 30 Max. number of positions: 30 (pitch: 3.5 mm) 24 (pitch: 5 mm) 18 (pitch: 7.25 mm/7.5 mm) Number of rows: 3 Type: Housing half shell (right), flat design Housing type: DIN rail housing Ventilation openings present: no Housing series: ME-MAX

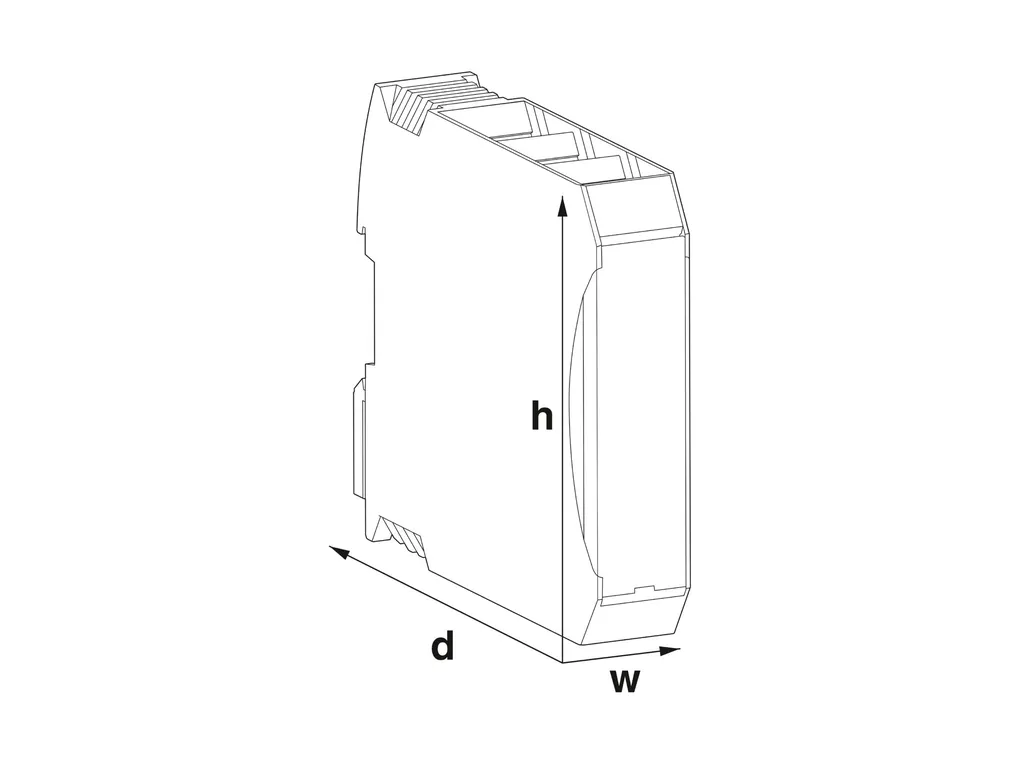

Dimensions	Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 16.3 mm Height: 85 mm Depth: 90.35 mm Depth from top edge of DIN rail: 84.5 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Power dissipation single housing for 20°C Ambient temperature: 20°C Reduction factor: 1 Mounting position: vertical Power dissipation: 5.5 W Power dissipation single housing for 30°C Ambient temperature: 30°C Reduction factor: 0.91 Mounting position: vertical Power dissipation: 5 W Power dissipation single housing for 40°C Ambient temperature: 40°C Reduction factor: 0.81 Mounting position: vertical Power dissipation: 4.5 W Power dissipation single housing for 50°C Ambient temperature: 50°C Reduction factor: 0.7 Mounting position: vertical Power dissipation: 3.8 W Power dissipation single housing for 60°C Ambient temperature: 60°C Reduction factor: 0.57 Mounting position: vertical Power dissipation: 3.1 W Power dissipation single housing for 70°C Ambient temperature: 70°C Reduction factor: 0.49 Mounting position: vertical Power dissipation: 2.7 W Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Mechanical strength / tumbling barrel Specification: IEC 60998-1:2002-12 Height of fall: 50cm Frequency: 10 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
PCB data	Number of PCB holders: 1 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
