| Notes | General: Refer to the data sheet for the range in the download area. |

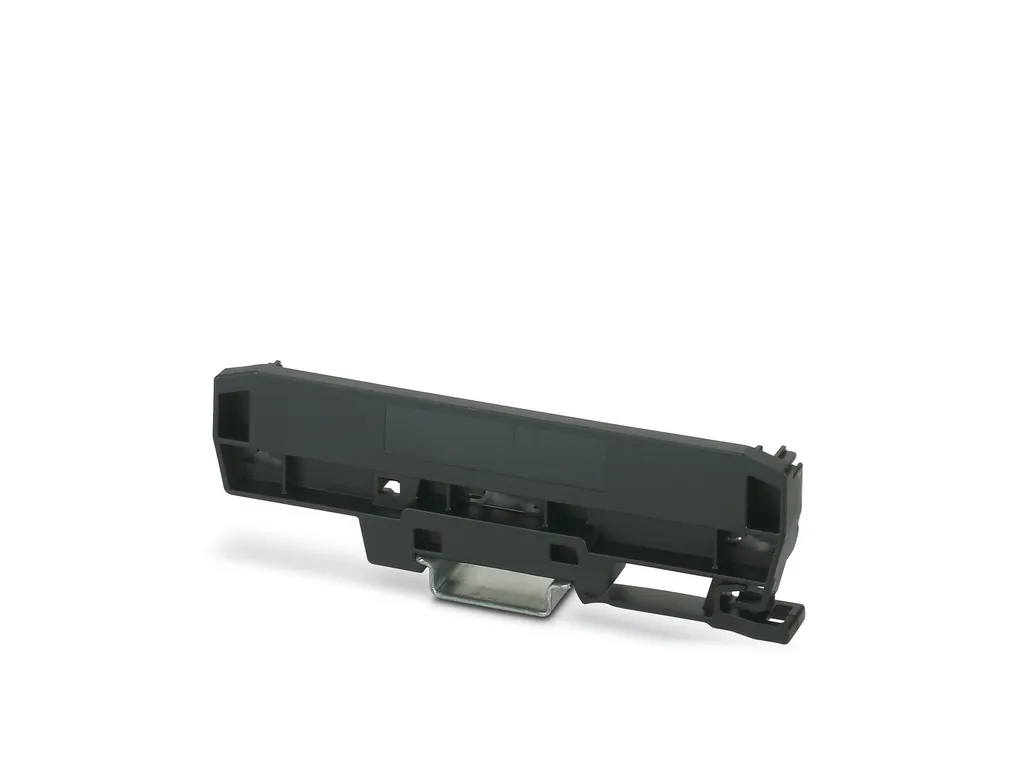

| Product properties | Product type: Panel mounting base side part Product family: UM-PRO 108 Type: Side element (right) with mounting foot for the DIN rail Housing type: Press-drawn section housings Housing series: UM-PRO |
| Dimensions | Width: 19.5 mm Height: 127.8 mm Depth: 39.45 mm Depth from top edge of DIN rail: 32.45 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 125°C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
| PCB data | Number of PCB holders: 3 Type of PCB mount: Insertion/securing with additional elements PCB surface: 700 mm² ... 1200 mm² (per basic profile cm) Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: DIN rail mounting/wall mounting (with optional mounting flange) |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
| ECLASS | ECLASS-11.0: 27182701 ECLASS-13.0: 27190602 |
| ETIM | ETIM 9.0: EC002779 |
| UNSPSC | UNSPSC 21.0: 31261500 |
