PHOENIX CONTACT 2200435

Not available

UM 122-PROFIL PA L19CM KMGY - Profile

Press-drawn section housings, Basic profile, color: light grey (7035), profile width (internal): 122 mm, profile width (external): 127.5 mm, length: 190 mm

Product Code: 2200435 Copia - Copy

Copia - Copy

Partner cod.: 2200435 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Component housing lower part Product family: UM122 Type: Basic profile Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM
Dimensions	Length: 190 mm External dimensions Profile width (external): 127.5 mm Internal dimensions Profile width (internal): 122 mm
Material specifications	Color: light grey (7035) Surface characteristics: untreated Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_35683.pdf

Other products

Description other products

PHOENIX CONTACT 2853048

ME 17,5 OT-MKDSO RD - Upper part of housing
Cod. Articolo: 2853048

DIN rail housing, Upper housing part for PCB terminal blocks with screw connection, width: 17.6 mm, height: 99 mm, depth: 45.85 mm, color: red (3001)

PHOENIX CONTACT 2201304

FKDSO 2,5/ 4-R GN BD: 13-24 - PCB terminal block
Cod. Articolo: 2201304

PCB terminal block, nominal current: 22 A, rated voltage (III/2): 250 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: FKDSO 2,5/..-R, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. Product with pin output on right side

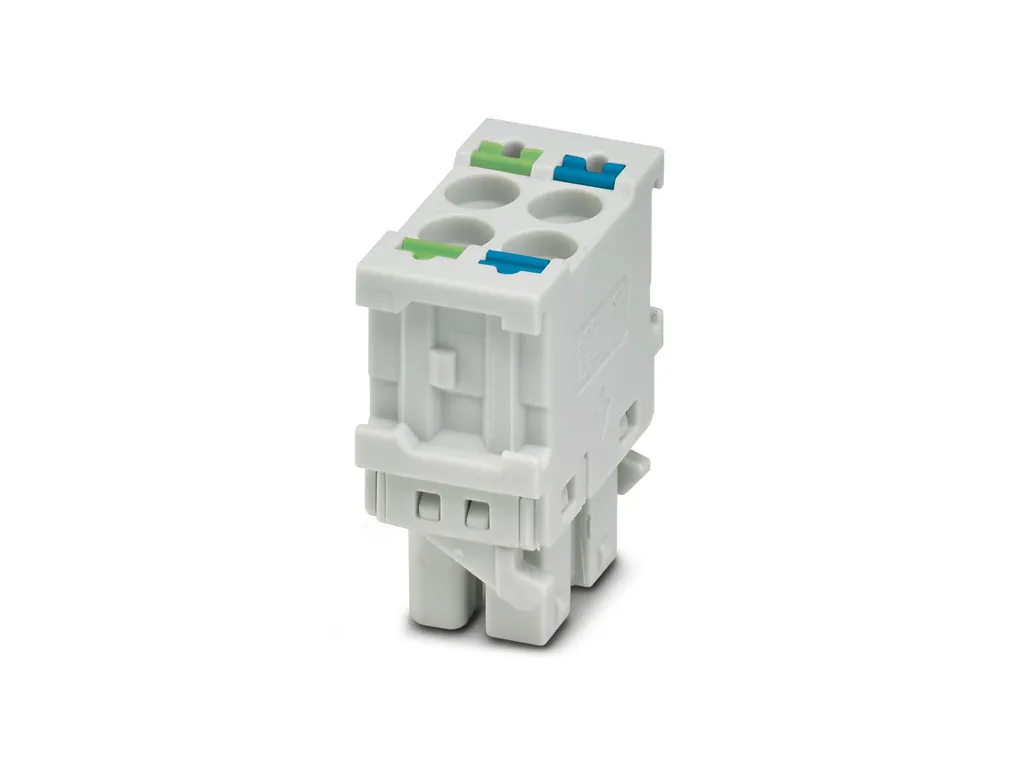

PHOENIX CONTACT 2203195

HSCP-SP 2,5-1U4-65/65-7035 - Printed-circuit board connector
Cod. Articolo: 2203195

PCB connector, nominal cross section: 2.5 mm², color: light grey, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 4, number of rows: 2, number of positions: 4, number of connections: 4, product range: HSCP-SP 2,5-.., pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0°, locking clip: - Locking clip, plug-in system: HSC 2,5, locking: without, mounting: without, type of packaging: packed in cardboard, Spring opener color: blue, green/blue, green
