ME 90 UT/FE BUS/5+2 KMGY - Mounting base housing

DIN rail housing, Lower housing part with metal foot catch, with 4 FE contacts, tall design, with vents, width: 90.4 mm, height: 99 mm, depth: 107.3 mm, color: light grey (7035), cross connection: integrated bus connector, number of positions cross connector: 5+2, Bus connector: 5 parallel contacts, 2 serial contacts
Product Code: 2200538
Partner cod.: 2200538
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
NotesGeneral: Refer to the data sheet for the range in the download area.
Material of contact pads for bus connector, galvanic gold (hard gold)
Product propertiesProduct type: Enclosure bottom part
Product family: ME...UT/FE BUS/ 5+2
Type: Lower housing part with metal foot catch, with 4 FE contacts, tall design
Housing type: DIN rail housing
Ventilation openings present: yes
Housing series: ME

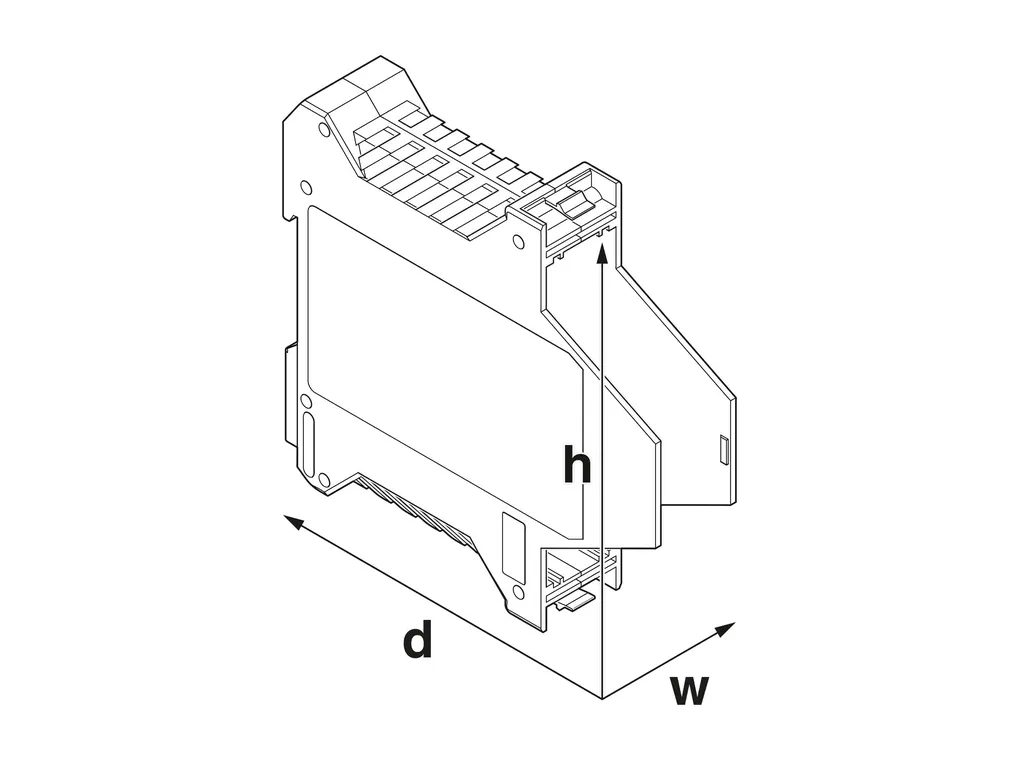

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f7cb8d787f84004f8d1011c43706dd99/-S204x204-FJPG
Width: 90.4 mm
Height: 99 mm
Depth: 107.3 mm
Depth from top edge of DIN rail: 100.7 mm
Depth from top edge of DIN rail to support point on upper part: 68.5 mm
PCB design
PCB thickness: 1.4 mm ... 1.8 mm
Material specificationsColor: light grey (7035)
Flammability rating according to UL 94: V0
CTI according to IEC 60112: 600
Surface characteristics: untreated
Housing material: Polyamide
Environmental and real-life conditionsPower dissipation single housing for 20°C
Ambient temperature: 20°C
Reduction factor: 1
Mounting position: vertical
Power dissipation: 10.4 W
Power dissipation single housing for 30°C
Ambient temperature: 30°C
Reduction factor: 0.91
Mounting position: vertical
Power dissipation: 9.5 W
Power dissipation single housing for 40°C
Ambient temperature: 40°C
Reduction factor: 0.81
Mounting position: vertical
Power dissipation: 8.4 W
Power dissipation single housing for 50°C
Ambient temperature: 50°C
Reduction factor: 0.7
Mounting position: vertical
Power dissipation: 7.3 W
Power dissipation single housing for 60°C
Ambient temperature: 60°C
Reduction factor: 0.57
Mounting position: vertical
Power dissipation: 5.9 W
Power dissipation single housing for 70°C
Ambient temperature: 70°C
Reduction factor: 0.49
Mounting position: vertical
Power dissipation: 5.1 W
Vibration test
Specification: IEC 60068-2-6:2007-12
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1octave/min
Amplitude: 0.15mm (10Hz...58.1Hz)
Acceleration: 2g (58.1Hz...150Hz)
Test duration per axis: 2.5 h
Test directions: X-, Y- and Z-axis
Glow-wire test
Specification: IEC 60695-2-11:2014-02
Temperature: 850°C
Time of exposure: 30 s
Thermal stability / ball thrust test
Specification: IEC 60695-10-2:2014-02
Temperature: 125°C
Test duration: 1 h
Force: 20 N
Mechanical strength / tumbling barrel
Specification: IEC 60998-1:2002-12
Height of fall: 50cm
Frequency: 10
Shocks
Specification: IEC 60068-2-27:2008-02
Pulse shape: Half-sine
Acceleration: 15g
Shock duration: 11ms
Number of shocks per direction: 3
Test directions: X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08
Ambient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 55°C
Ambient temperature (assembly): -5°C ... 100°C
Relative humidity (storage/transport): 80 %
PCB dataNumber of PCB holders: 4
Type of PCB mount: Insertion (optional latching by PCB stop)
Thickness of the PCB: 1.4 mm ... 1.8 mm
MountingMounting type: DIN rail mounting
Mounting position: Vertical (horizontal DIN rail)
Packaging specificationsType of packaging: packed in cardboard
Outer packaging type: Carton
Technical Specs
ECLASSECLASS-11.0: 27182702
ECLASS-13.0: 27190601
ETIMETIM 9.0: EC001031
UNSPSCUNSPSC 21.0: 31261500
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Data_sheet_03041.pdf

Material_description_00001.pdf

Technical_drawing_35720.pdf
