| Notes | General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold) |
| Product properties | Product type: Cover Type: Insertion plate Housing type: DIN rail housing Ventilation openings present: no Housing series: ME-MAX |

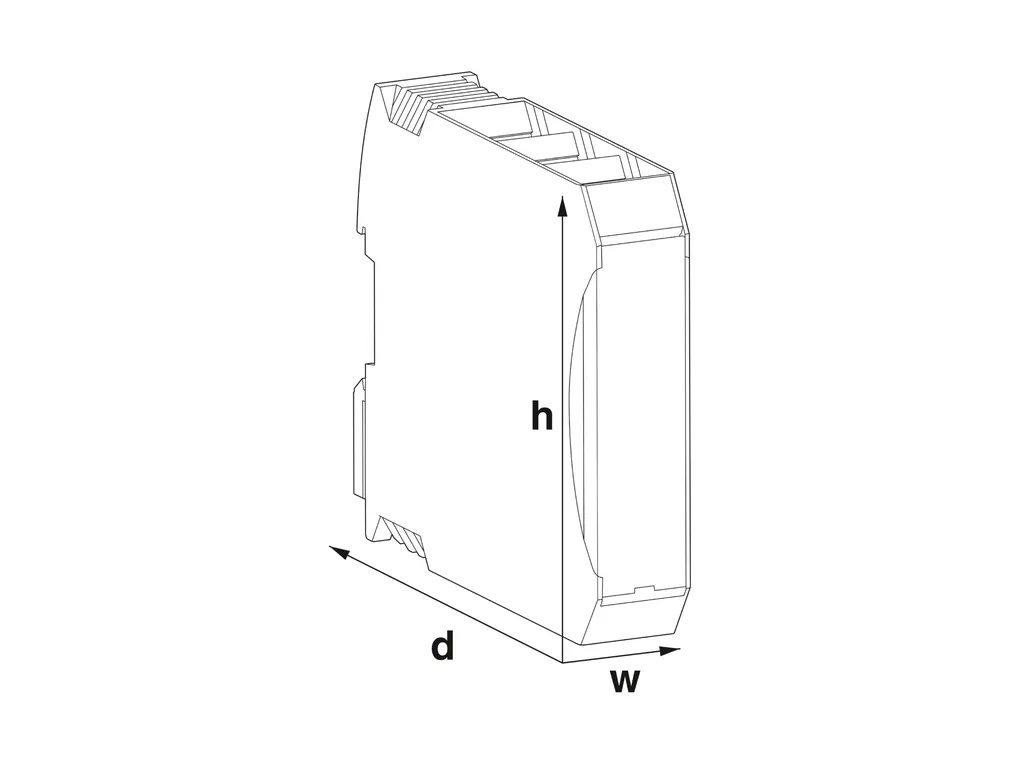

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 19.2 mm Height: 59.6 mm Depth: 1 mm |
| Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
| PCB data | Number of PCB holders: 1 |
| Mounting | Mounting type: Slot Mounting position: Vertical (horizontal DIN rail) |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190605 |
| ETIM | ETIM 8.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
