2200636 PHOENIX CONTACT - Technology Bsa

ME MAX 22,5 FKDSO DEMO-SET - Housing set

DIN rail housing, Set comprised of an electronics housing, 2x PCB terminal blocks with Push-in spring connection, and 2x filler plugs, with vents, width: 22.6 mm, height: 99 mm, depth: 113.65 mm, color: light grey (7035), cross connection: DIN rail connector (optional), number of positions cross connector: 5

Product Code: 2200636

Partner cod.: 2200636

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area. Material of contact pads for bus connector, galvanic gold (hard gold)
Product properties	Product type: Complete housing Product family: ME MAX..2-2..SET Max. number of positions: 16 (pitch: 5 mm) Number of rows: 2 Type: Set comprised of an electronics housing, 2x PCB terminal blocks with Push-in spring connection, and 2x filler plugs Housing type: DIN rail housing Ventilation openings present: yes Housing series: ME-MAX

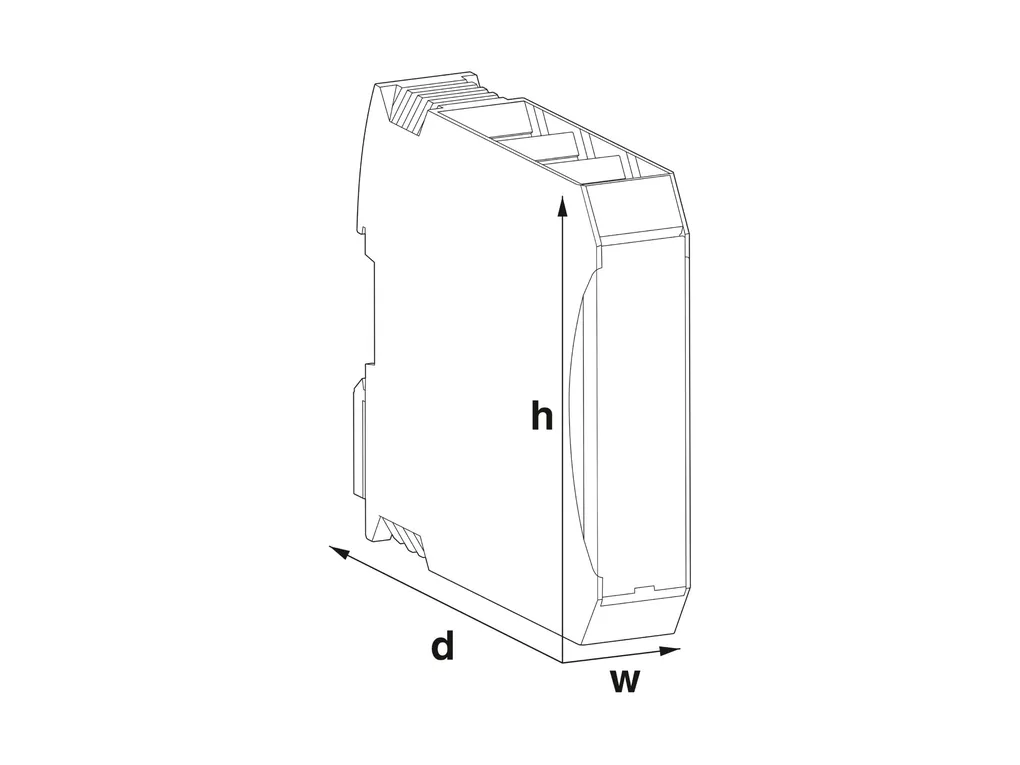

Dimensions	Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 22.6 mm Height: 99 mm Depth: 113.65 mm Depth from top edge of DIN rail: 107 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 %
PCB data	Number of PCB holders: 1 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail)
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
