| Notes | General: Refer to the data sheet for the range in the download area. |

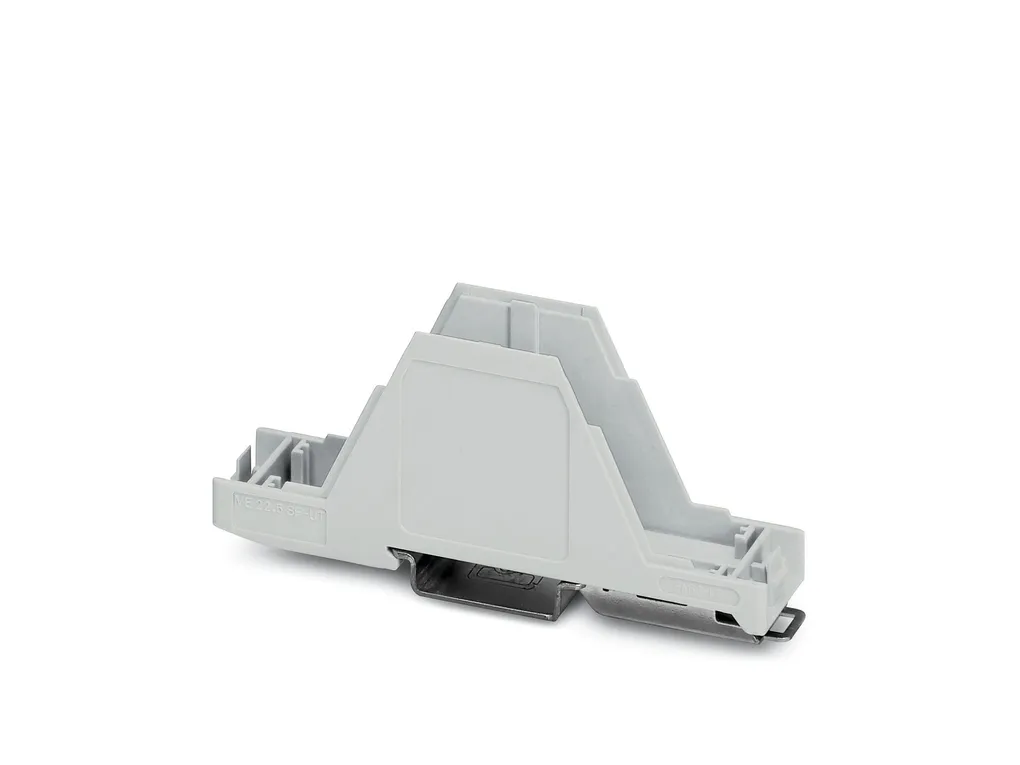

| Product properties | Product type: Cover Product family: BC DKL R BK Type: Latching cover (non-detachable) Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Ventilation openings present: no Housing series: BC |
| Dimensions | Width: 107.6 mm Height: 45 mm Depth: 8 mm |
| Material specifications | Color: black (9005) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polycarbonate |
| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 2g (58.1Hz...150Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850°C Time of exposure: 30 s Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD1:1999-11 + AMD2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 % |
| Mounting | Mounting type: Latching with upper housing part Mounting position: Vertical (horizontal DIN rail) |
| Packaging specifications | Type of packaging: Box packaging |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190603 |
| ETIM | ETIM 9.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
