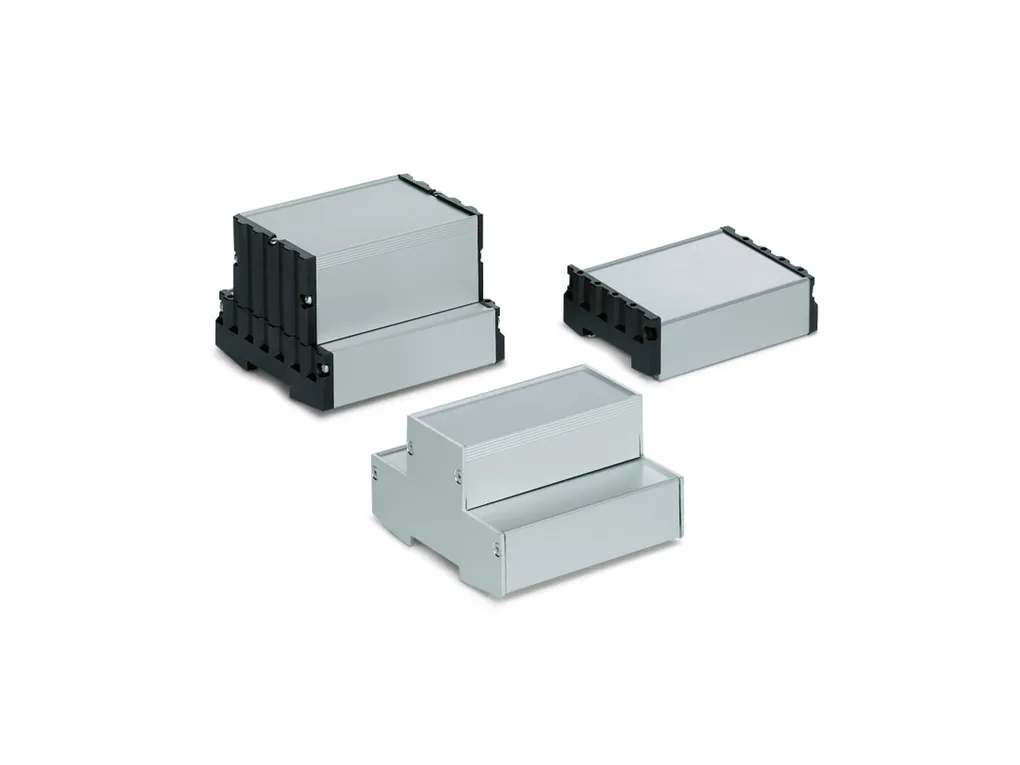

UM-ALU 4-72 PROFILE 42,5 - Profile

Press-drawn section housings, Screw mounting, Basic profile, color: aluminum color, profile width (internal): 72 mm, profile width (external): 75 mm, length: 42.5 mm, depth: 29.4 mm
Product Code: 2200917
Partner cod.: 2200917
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesProduct type: Component housing lower part
Product family: UM-ALU 4-72
Type: Basic profile
Housing type: Press-drawn section housings
Ventilation openings present: no
Housing series: UM-ALU
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/babd9b95f03e854daf91bc88d9e6e045/-S204x204-FJPG
Depth: 29.4 mm
Depth from top edge of DIN rail: 25.5 mm
Length: 42.5 mm
External dimensions
Profile width (external): 75 mm
Internal dimensions
Profile width (internal): 72 mm
PCB design
PCB thickness: 1.44 mm ... 2 mm
Material specificationsColor: aluminum color
Color (Housing): aluminum
Surface characteristics: anodized
Housing material: Aluminum
Environmental and real-life conditionsAmbient conditions
Max. IP code to attain: IP40
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 55°C
Ambient temperature (assembly): -5°C ... 100°C
PCB dataNumber of PCB holders: 3
Type of PCB mount: Slot
PCB surface: 2742 mm² ... 3230 mm² (TOP in conjunction with side elements COVER…AL)
2773 mm² ... 2868 mm² (BOTTOM in conjunction with side elements COVER…AL)
2738 mm² ... 3226 mm² (TOP in conjunction with side elements COVER…PA)
2881 mm² ... 3226 mm² (BOTTOM in conjunction with side elements COVER…PA)
Thickness of the PCB: 1.44 mm ... 2 mm
MountingMounting type: Screw mounting
Mounting position: parallel to the DIN rail
Packaging specificationsType of packaging: packed in cardboard
Outer packaging type: Carton
Technical Specs
ECLASSECLASS-11.0: 27182701
ECLASS-13.0: 27190601
ETIMETIM 9.0: EC002779
UNSPSCUNSPSC 21.0: 31261500
